Product Specifications

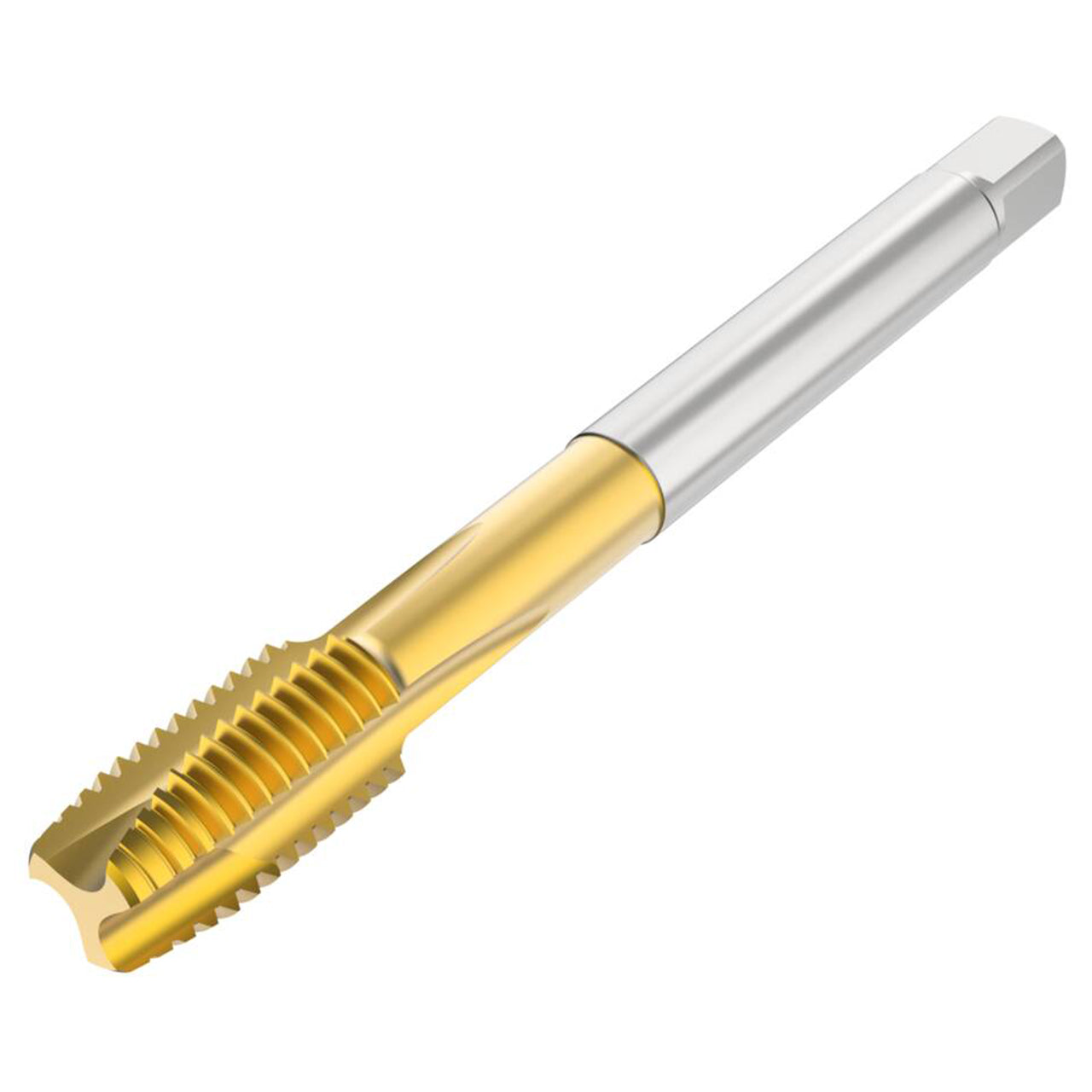

| Manufacturer Part Number | 10139504 |
| Thread Diameter (Decimal Inch) | 1.772" |
| Thread Diameter (mm) | 45.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.788" |
| Threading Chamfer Length (mm) | 20.02mm |
| Tap Chamfer Length (Decimal Inch) | 0.788" |
| Tap Chamfer Length (mm) | 20.02mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.417" |
| Connection Diameter Machine Side (mm) | 36.00mm |
| Shank Diameter (Decimal Inch) | 1.417" |
| Shank Diameter (mm) | 36.00mm |
| Functional Length (Decimal Inch) | 7.873" |
| Functional Length (mm) | 199.98mm |
| Usable Length (Decimal Inch) | 4.606" |
| Usable Length (mm) | 117.00mm |
| Overall Length (Decimal Inch) | 8.661" |
| Overall Length (mm) | 220.00mm |
| Thread Length (Decimal Inch) | 2.362" |
| Thread Length (mm) | 60.00mm |
| Thread Diameter Size | M45 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 1.595" |
| Recommended Premachined Hole Diameter (mm) | 40.50mm |
| Connection Size Code | 36.00X29.00 |
| Connection Size Code Machine Side | 36.00X29.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 1.606" |
| Maximum Premachined Hole Diameter (mm) | 40.80mm |
| Minimum Thread Pitch (Decimal Inch) | 0.177" |
| Minimum Thread Pitch (mm) | 4.50mm |
| Maximum Thread Pitch (Decimal Inch) | 0.177" |
| Maximum Thread Pitch (mm) | 4.50mm |
| Number of Flute | 5 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6H |
| Threading Chamfer Type | B |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T32 |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E |
| Coating | TiAIN+TiN |
| Product Type | Straight Flute Tap |
