Product Specifications

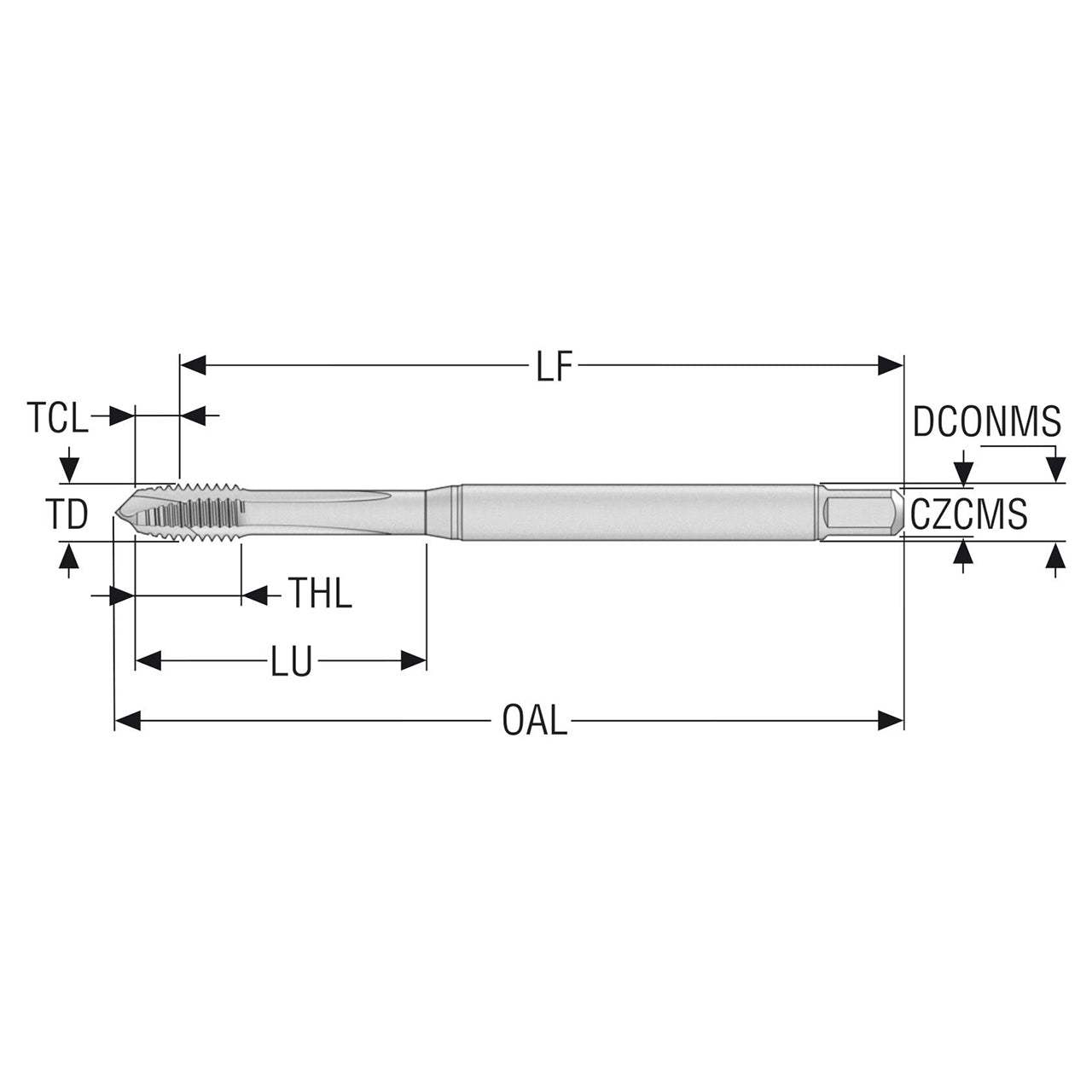

| Manufacturer Part Number | 10139494 |
| Thread Diameter (Decimal Inch) | 0.709" |
| Thread Diameter (mm) | 18.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.448" |
| Threading Chamfer Length (mm) | 11.38mm |
| Tap Chamfer Length (Decimal Inch) | 0.448" |
| Tap Chamfer Length (mm) | 11.38mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.551" |
| Connection Diameter Machine Side (mm) | 14.00mm |
| Shank Diameter (Decimal Inch) | 0.551" |
| Shank Diameter (mm) | 14.00mm |
| Functional Length (Decimal Inch) | 4.473" |
| Functional Length (mm) | 113.62mm |
| Usable Length (Decimal Inch) | 3.189" |
| Usable Length (mm) | 81.00mm |
| Overall Length (Decimal Inch) | 4.921" |
| Overall Length (mm) | 125.00mm |
| Thread Length (Decimal Inch) | 1.260" |
| Thread Length (mm) | 32.00mm |
| Thread Diameter Size | M18 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.610" |
| Recommended Premachined Hole Diameter (mm) | 15.50mm |
| Connection Size Code | 14.00X11.00 |
| Connection Size Code Machine Side | 14.00X11.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.620" |
| Maximum Premachined Hole Diameter (mm) | 15.74mm |
| Minimum Thread Pitch (Decimal Inch) | 0.098" |
| Minimum Thread Pitch (mm) | 2.50mm |
| Maximum Thread Pitch (Decimal Inch) | 0.098" |
| Maximum Thread Pitch (mm) | 2.50mm |
| Number of Flute | 4 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6H |
| Threading Chamfer Type | B |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T32 |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E |
| Coating | TiAIN+TiN |
| Product Type | Straight Flute Tap |
