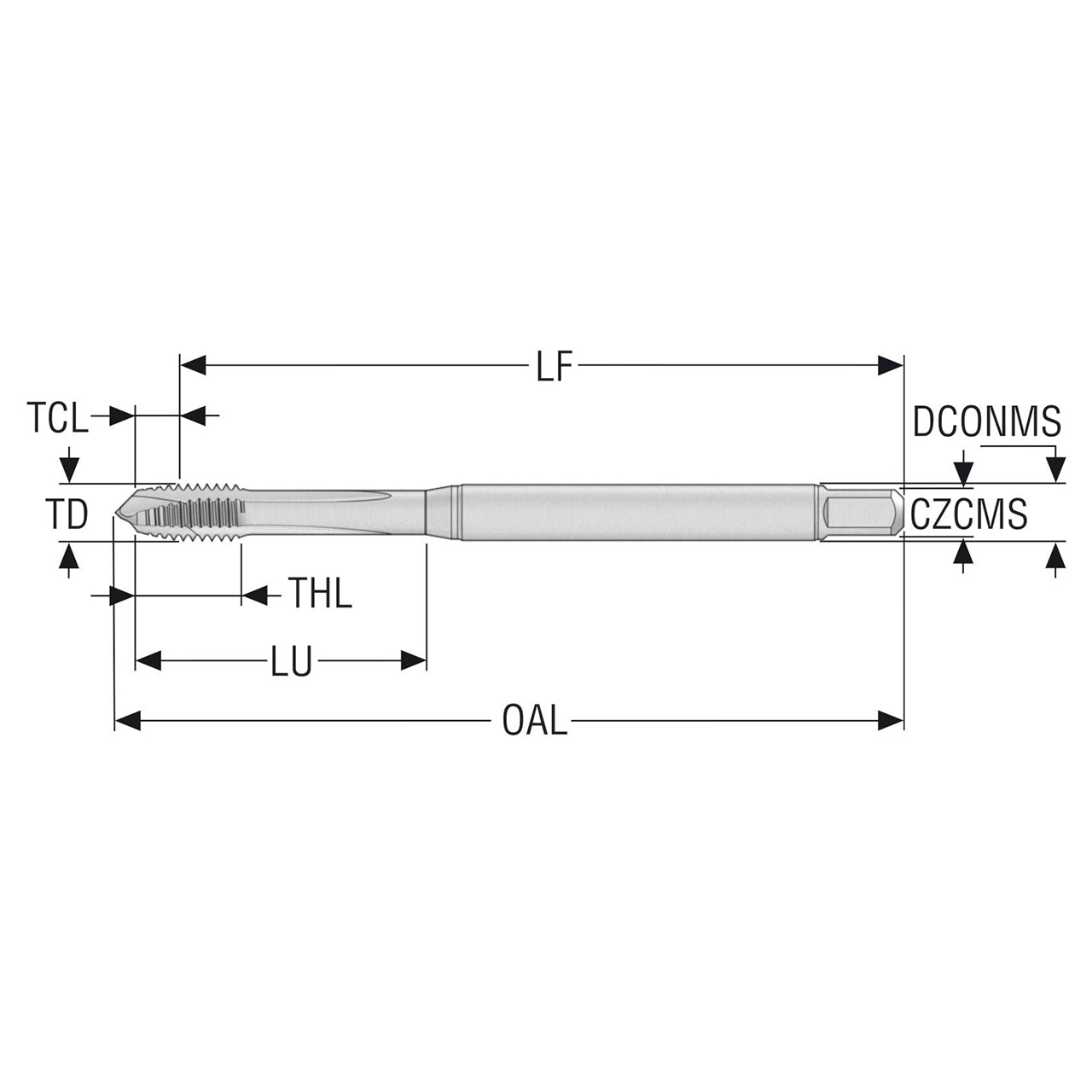

Product Specifications
| Manufacturer Part Number | 10139466 |
| Thread Diameter (Decimal Inch) | 0.118" |
| Thread Diameter (mm) | 3.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.087" |
| Threading Chamfer Length (mm) | 2.20mm |
| Tap Chamfer Length (Decimal Inch) | 0.087" |
| Tap Chamfer Length (mm) | 2.20mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.138" |
| Connection Diameter Machine Side (mm) | 3.50mm |
| Shank Diameter (Decimal Inch) | 0.138" |
| Shank Diameter (mm) | 3.50mm |
| Functional Length (Decimal Inch) | 2.118" |
| Functional Length (mm) | 53.80mm |
| Usable Length (Decimal Inch) | 0.709" |
| Usable Length (mm) | 18.00mm |
| Overall Length (Decimal Inch) | 2.252" |
| Overall Length (mm) | 57.20mm |
| Thread Length (Decimal Inch) | 0.394" |
| Thread Length (mm) | 10.00mm |
| Thread Diameter Size | M3 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.098" |
| Recommended Premachined Hole Diameter (mm) | 2.50mm |
| Connection Size Code | 3.50X2.70 |
| Connection Size Code Machine Side | 3.50X2.70 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.102" |
| Maximum Premachined Hole Diameter (mm) | 2.60mm |
| Minimum Thread Pitch (Decimal Inch) | 0.020" |
| Minimum Thread Pitch (mm) | 0.50mm |
| Maximum Thread Pitch (Decimal Inch) | 0.020" |
| Maximum Thread Pitch (mm) | 0.50mm |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6H |
| Threading Chamfer Type | B |
| Thread Form Type | M |
| Cutting Direction | Left Hand |
| Cutting Geometry Type | T32 |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E |
| Coating | TiAIN+TiN |

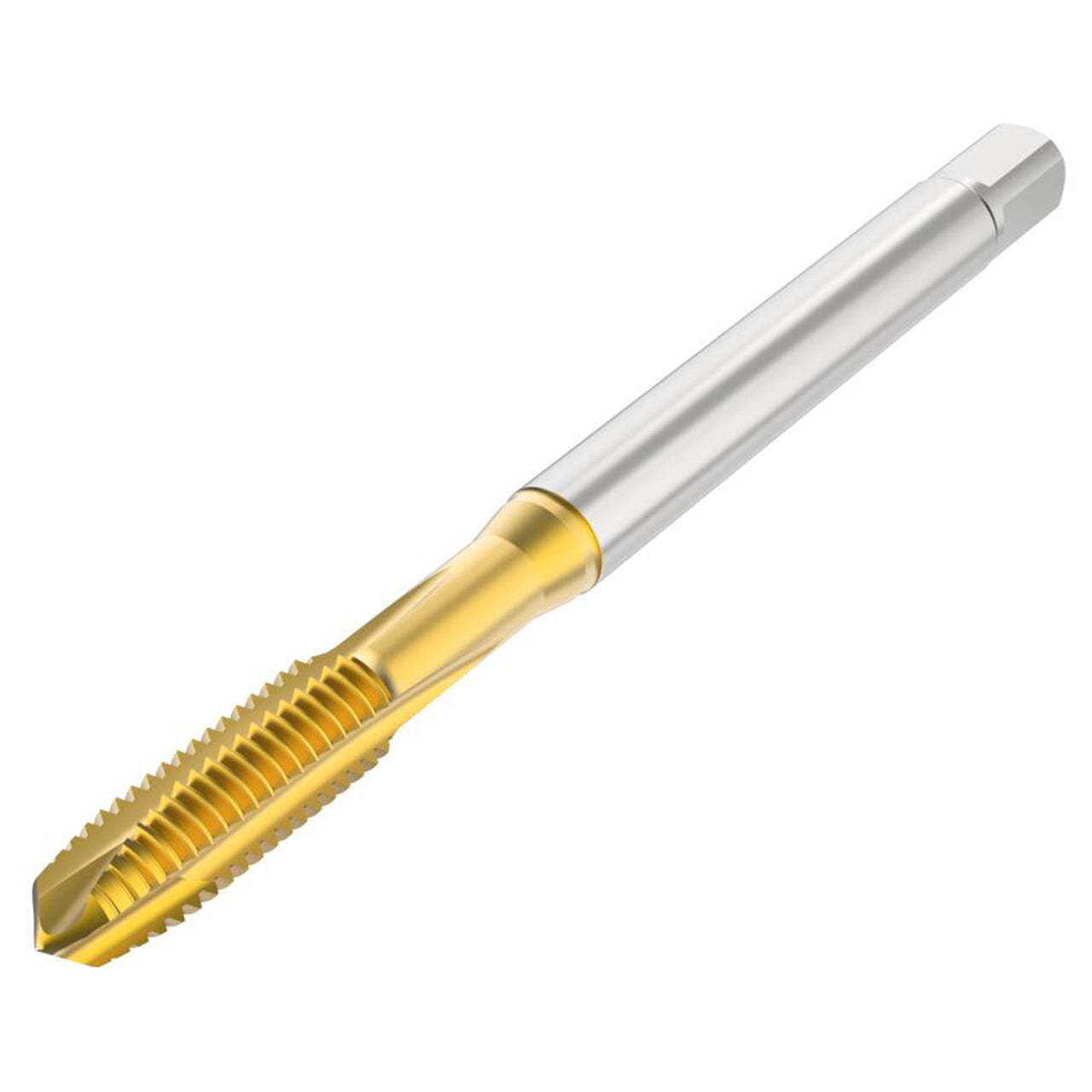

| Product Type | Straight Flute Tap |
