Product Specifications

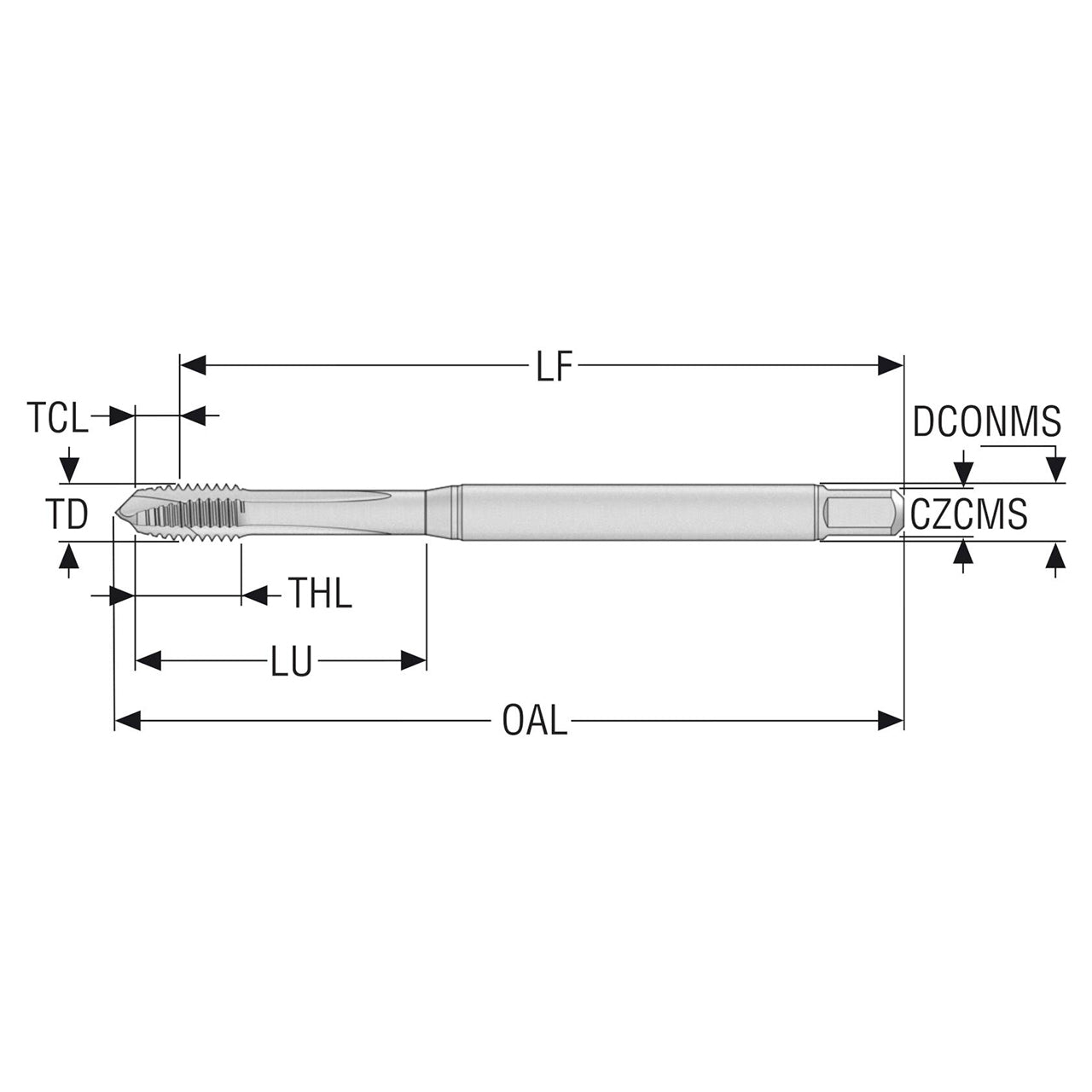

| Manufacturer Part Number | 10139410 |
| Thread Diameter (Decimal Inch) | 0.562" |
| Thread Diameter (mm) | 14.27mm |
| Threading Chamfer Length (Decimal Inch) | 0.326" |
| Threading Chamfer Length (mm) | 8.29mm |
| Tap Chamfer Length (Decimal Inch) | 0.326" |
| Tap Chamfer Length (mm) | 8.29mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.433" |
| Connection Diameter Machine Side (mm) | 11.00mm |
| Shank Diameter (Decimal Inch) | 0.433" |
| Shank Diameter (mm) | 11.00mm |
| Functional Length (Decimal Inch) | 4.004" |
| Functional Length (mm) | 101.71mm |
| Usable Length (Decimal Inch) | 3.189" |
| Usable Length (mm) | 81.00mm |
| Overall Length (Decimal Inch) | 4.331" |
| Overall Length (mm) | 110.00mm |
| Thread Length (Decimal Inch) | 0.787" |
| Thread Length (mm) | 20.00mm |
| Thread Diameter Size | EGM12 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.492" |
| Recommended Premachined Hole Diameter (mm) | 12.50mm |
| Connection Size Code | 11.00X9.00 |
| Connection Size Code Machine Side | 11.00X9.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.498" |
| Maximum Premachined Hole Diameter (mm) | 12.64mm |
| Minimum Thread Pitch (Decimal Inch) | 0.069" |
| Minimum Thread Pitch (mm) | 1.75mm |
| Maximum Thread Pitch (Decimal Inch) | 0.069" |
| Maximum Thread Pitch (mm) | 1.75mm |
| Number of Flute | 4 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6H mod |
| Threading Chamfer Type | B |
| Thread Form Type | EGM |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T34 |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E-PM |
| Coating | TiAIN+WC/C |
| Product Type | Straight Flute Tap |
