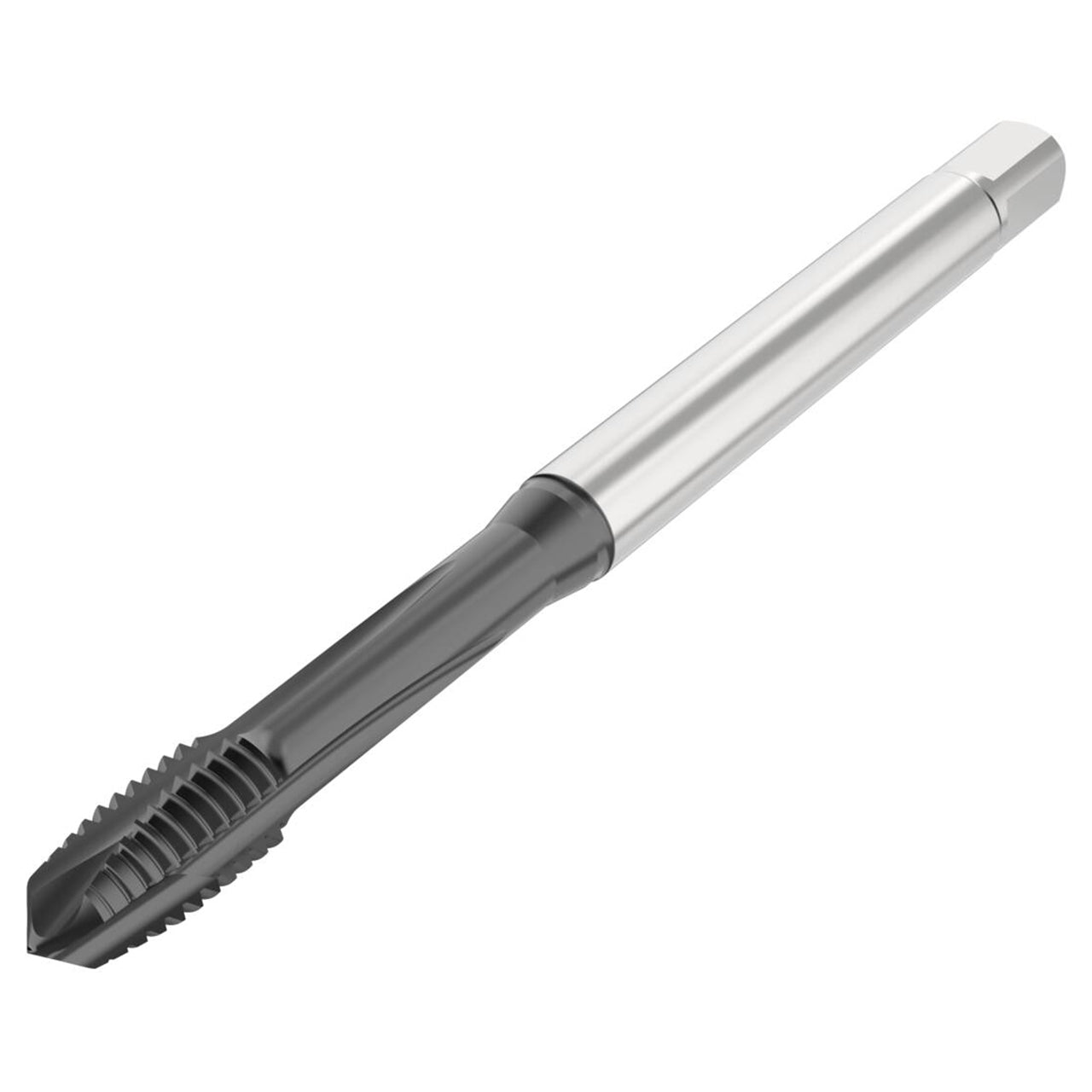

Product Specifications
| Manufacturer Part Number | 10139389 |
| Thread Diameter (Decimal Inch) | 0.145" |
| Thread Diameter (mm) | 3.67mm |
| Threading Chamfer Length (Decimal Inch) | 0.111" |
| Threading Chamfer Length (mm) | 2.83mm |
| Tap Chamfer Length (Decimal Inch) | 0.111" |
| Tap Chamfer Length (mm) | 2.83mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.177" |
| Connection Diameter Machine Side (mm) | 4.50mm |
| Shank Diameter (Decimal Inch) | 0.177" |
| Shank Diameter (mm) | 4.50mm |
| Functional Length (Decimal Inch) | 2.369" |
| Functional Length (mm) | 60.17mm |
| Usable Length (Decimal Inch) | 0.827" |
| Usable Length (mm) | 21.00mm |
| Overall Length (Decimal Inch) | 2.543" |
| Overall Length (mm) | 64.60mm |
| Thread Length (Decimal Inch) | 0.512" |
| Thread Length (mm) | 13.00mm |
| Thread Diameter Size | EGUNC4-40 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.122" |
| Recommended Premachined Hole Diameter (mm) | 3.10mm |
| Connection Size Code | 4.50X3.40 |
| Connection Size Code Machine Side | 4.50X3.40 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.125" |
| Maximum Premachined Hole Diameter (mm) | 3.18mm |
| Minimum Threads Per Inch (mm) | 40.00mm |
| Maximum Threads Per Inch (mm) | 40.00mm |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2B |
| Threading Chamfer Type | B |
| Thread Form Type | EGUNC |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T34 |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E-PM |
| Coating | TiAIN+WC/C |
| Product Type | Straight Flute Tap |
