Product Specifications

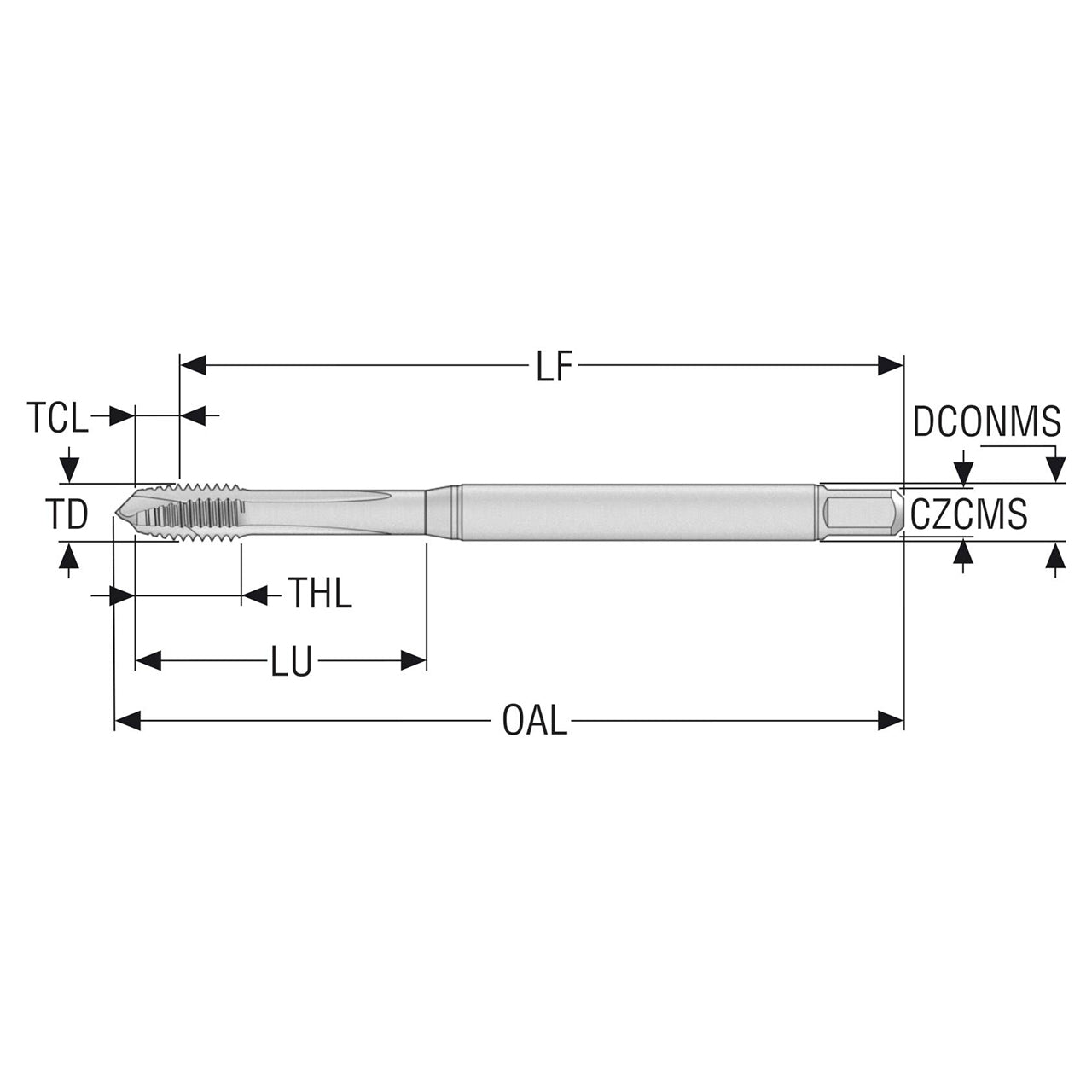

| Manufacturer Part Number | 10139376 |
| Thread Diameter (Decimal Inch) | 0.313" |
| Thread Diameter (mm) | 7.94mm |
| Threading Chamfer Length (Decimal Inch) | 0.181" |
| Threading Chamfer Length (mm) | 4.60mm |
| Tap Chamfer Length (Decimal Inch) | 0.181" |
| Tap Chamfer Length (mm) | 4.60mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.315" |
| Connection Diameter Machine Side (mm) | 8.00mm |
| Shank Diameter (Decimal Inch) | 0.315" |
| Shank Diameter (mm) | 8.00mm |
| Functional Length (Decimal Inch) | 3.362" |
| Functional Length (mm) | 85.40mm |
| Usable Length (Decimal Inch) | 1.378" |
| Usable Length (mm) | 35.00mm |
| Overall Length (Decimal Inch) | 3.673" |
| Overall Length (mm) | 93.30mm |
| Thread Length (Decimal Inch) | 0.512" |
| Thread Length (mm) | 13.00mm |
| Thread Diameter Size | UNF5/16-24 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.272" |
| Recommended Premachined Hole Diameter (mm) | 6.90mm |
| Connection Size Code | 8.00X6.20 |
| Connection Size Code Machine Side | 8.00X6.20 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.277" |
| Maximum Premachined Hole Diameter (mm) | 7.04mm |
| Minimum Threads Per Inch (mm) | 24.00mm |
| Maximum Threads Per Inch (mm) | 24.00mm |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2BX |
| Threading Chamfer Type | B |
| Thread Form Type | UNF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T34 |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E-PM |
| Coating | TiAIN+WC/C |
| Product Type | Straight Flute Tap |
