Product Specifications

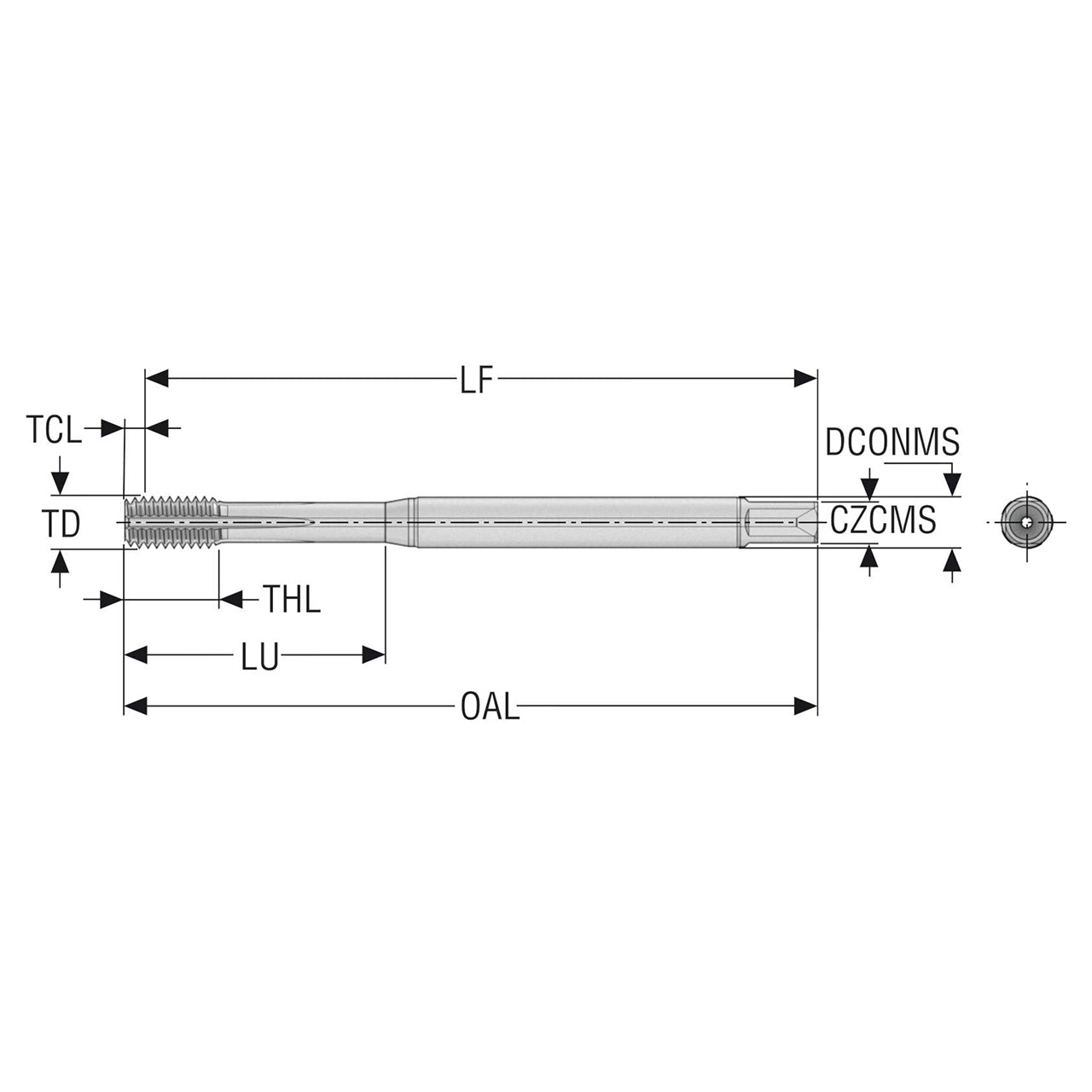

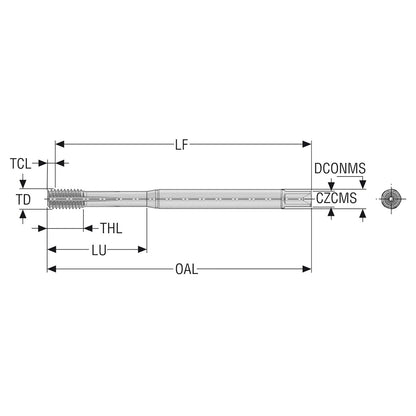

| Manufacturer Part Number | 10139295 |
| Thread Diameter (Decimal Inch) | 0.236" |
| Thread Diameter (mm) | 6.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.077" |
| Threading Chamfer Length (mm) | 1.95mm |
| Tap Chamfer Length (Decimal Inch) | 0.077" |
| Tap Chamfer Length (mm) | 1.95mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.236" |
| Connection Diameter Machine Side (mm) | 6.00mm |
| Shank Diameter (Decimal Inch) | 0.236" |
| Shank Diameter (mm) | 6.00mm |
| Functional Length (Decimal Inch) | 3.073" |
| Functional Length (mm) | 78.05mm |
| Usable Length (Decimal Inch) | 1.181" |
| Usable Length (mm) | 30.00mm |
| Overall Length (Decimal Inch) | 3.150" |
| Overall Length (mm) | 80.00mm |
| Thread Length (Decimal Inch) | 0.394" |
| Thread Length (mm) | 10.00mm |
| Thread Diameter Size | M6 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.221" |
| Recommended Premachined Hole Diameter (mm) | 5.60mm |
| Connection Size Code | 6.00X4.90 |
| Connection Size Code Machine Side | 6.00X4.90 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.221" |
| Maximum Premachined Hole Diameter (mm) | 5.60mm |
| Minimum Thread Pitch (Decimal Inch) | 0.039" |
| Minimum Thread Pitch (mm) | 1.00mm |
| Maximum Thread Pitch (Decimal Inch) | 0.039" |
| Maximum Thread Pitch (mm) | 1.00mm |
| Number of Flute | 5 |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 1 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | E |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T33 |
| Cutting Geometry Type Technical | Oil grooves |
| Material | HSS-E-PM |
| Coating | TiCN |

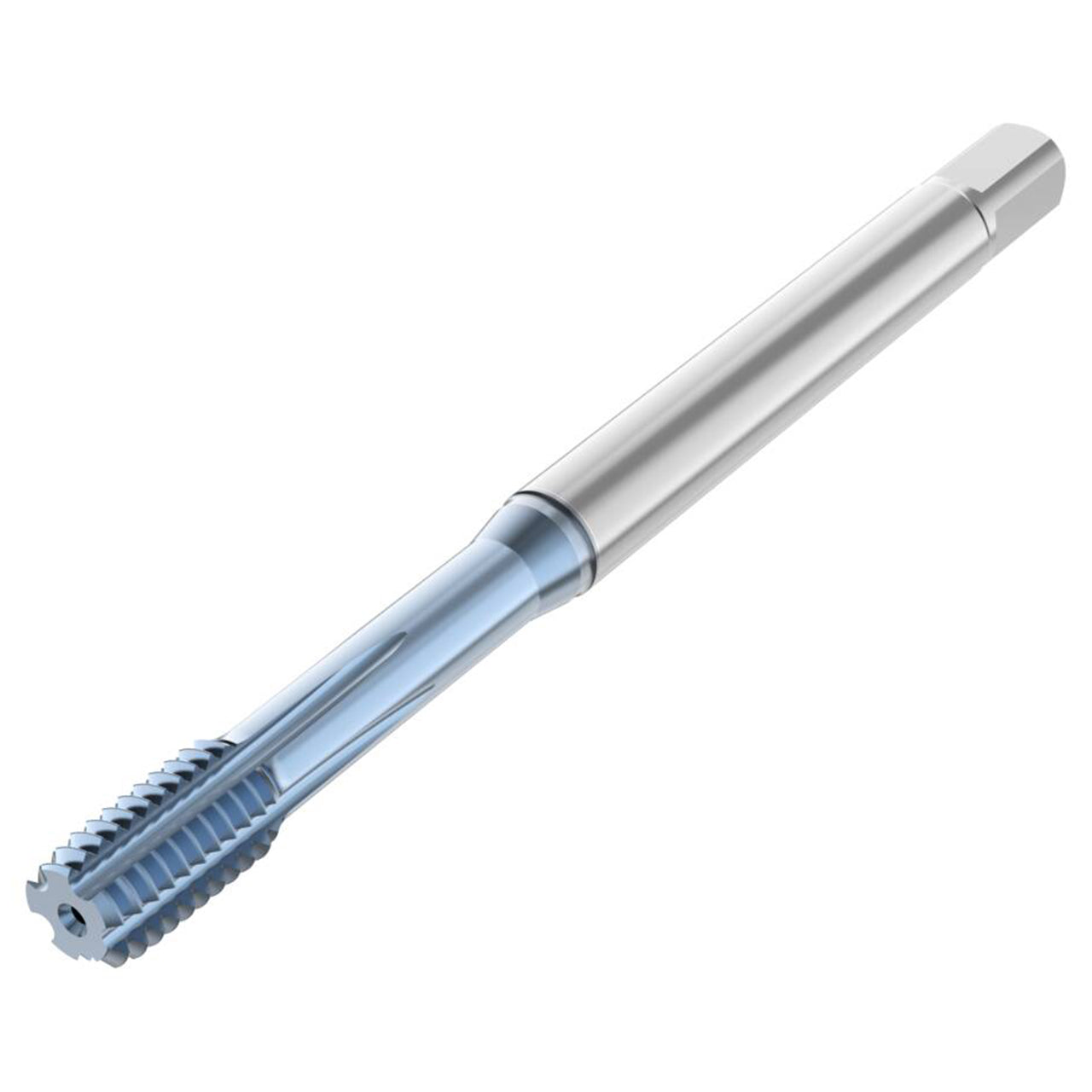

| Product Type | Thread Forming Tap |
