Product Specifications

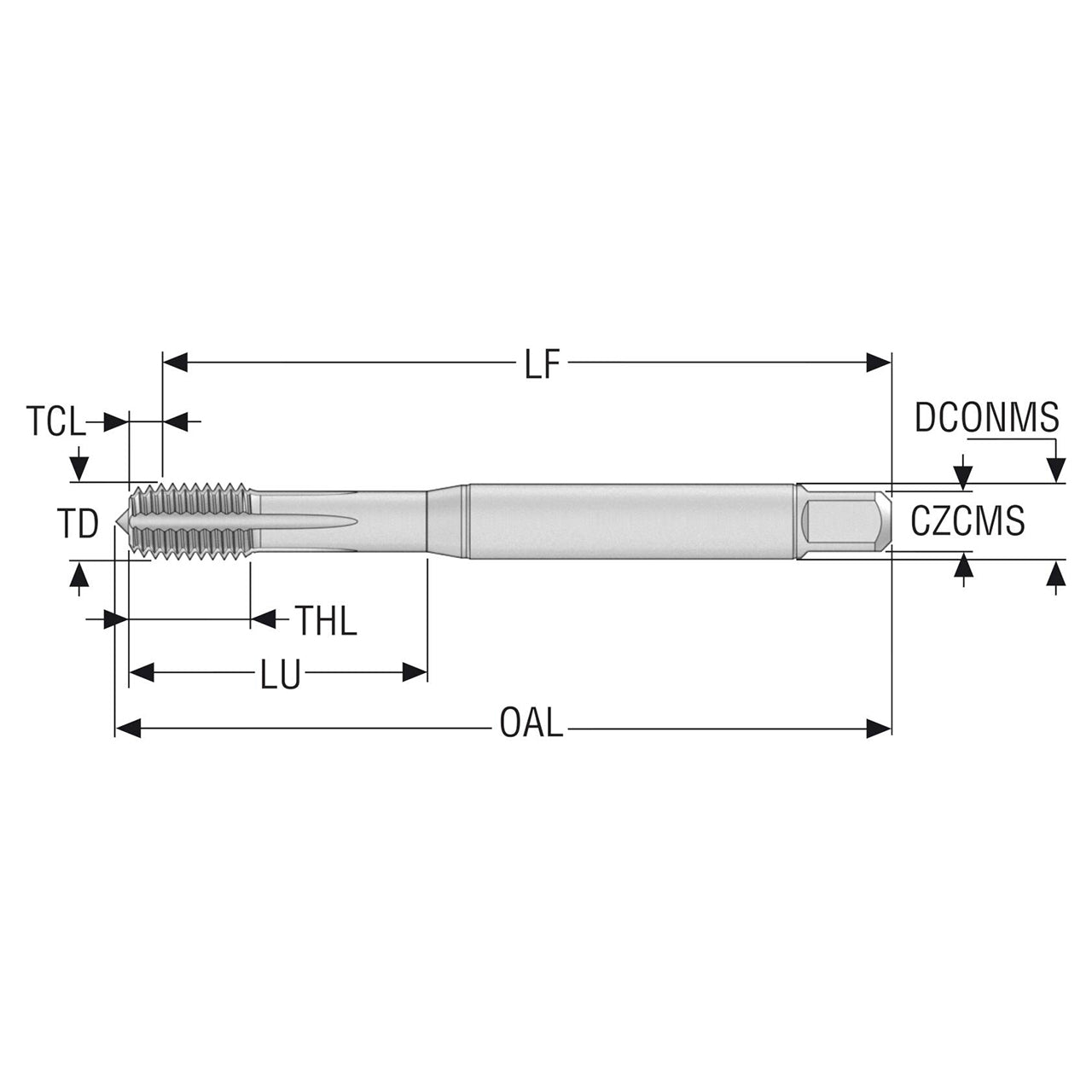

| Manufacturer Part Number | 10139275 |
| Thread Diameter (Decimal Inch) | 0.394" |
| Thread Diameter (mm) | 10.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.158" |
| Threading Chamfer Length (mm) | 4.00mm |
| Tap Chamfer Length (Decimal Inch) | 0.158" |
| Connection Diameter Machine Side (Decimal Inch) | 0.394" |
| Connection Diameter Machine Side (mm) | 10.00mm |
| Shank Diameter (Decimal Inch) | 0.394" |
| Shank Diameter (mm) | 10.00mm |
| Functional Length (Decimal Inch) | 3.780" |
| Functional Length (mm) | 96.00mm |
| Usable Length (Decimal Inch) | 1.535" |
| Usable Length (mm) | 39.00mm |
| Overall Length (Decimal Inch) | 4.008" |
| Overall Length (mm) | 101.80mm |
| Thread Length (Decimal Inch) | 0.591" |
| Thread Length (mm) | 15.00mm |
| Thread Diameter Size | MF10X1.25 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.372" |
| Recommended Premachined Hole Diameter (mm) | 9.45mm |
| Connection Size Code | 10.00X8.00 |
| Connection Size Code Machine Side | 10.00X8.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.372" |
| Maximum Premachined Hole Diameter (mm) | 9.45mm |
| Minimum Thread Pitch (Decimal Inch) | 0.049" |
| Minimum Thread Pitch (mm) | 1.25mm |
| Maximum Thread Pitch (Decimal Inch) | 0.049" |
| Maximum Thread Pitch (mm) | 1.25mm |
| Number of Flute | 5 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6GX |
| Threading Chamfer Type | C |
| Thread Form Type | MF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T33 |
| Cutting Geometry Type Technical | Oil grooves |
| Material | HSS-E-PM |
| Coating | TiCN |

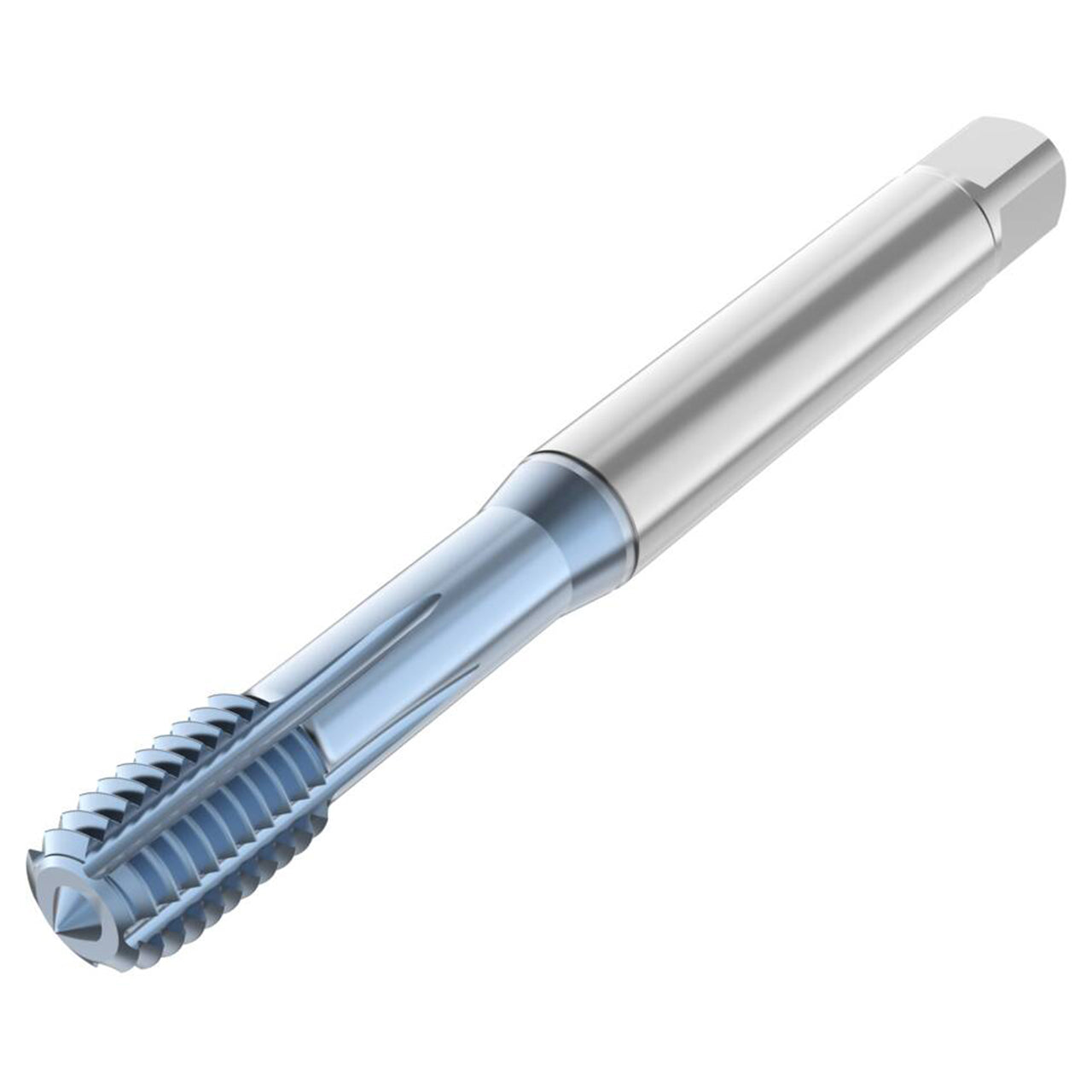

| Product Type | Thread Forming Tap |
