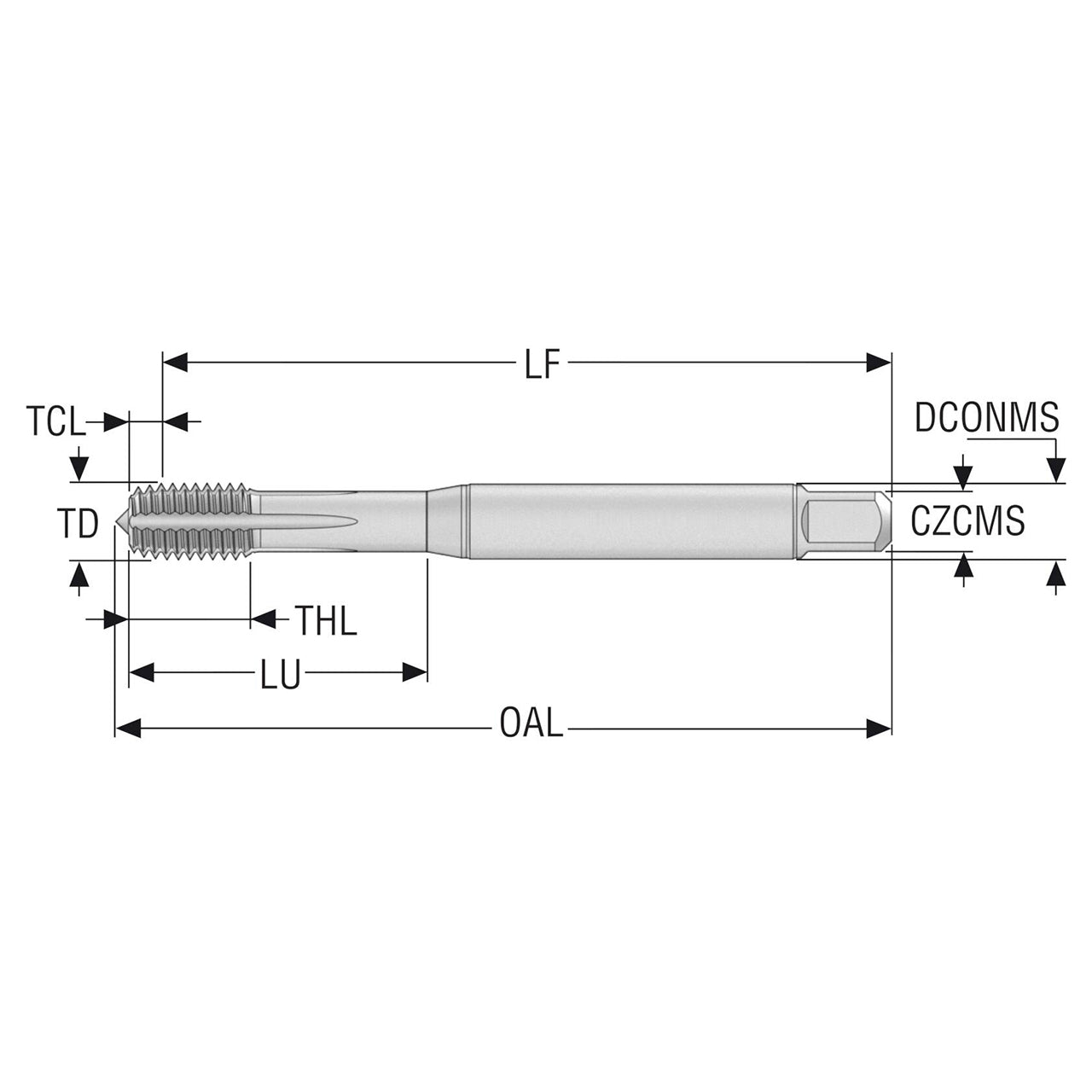

Product Specifications
| Manufacturer Part Number | 10139274 |
| Thread Diameter (Decimal Inch) | 0.394" |
| Thread Diameter (mm) | 10.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.114" |
| Threading Chamfer Length (mm) | 2.90mm |
| Tap Chamfer Length (Decimal Inch) | 0.114" |
| Tap Chamfer Length (mm) | 2.90mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.394" |
| Connection Diameter Machine Side (mm) | 10.00mm |
| Shank Diameter (Decimal Inch) | 0.394" |
| Shank Diameter (mm) | 10.00mm |
| Functional Length (Decimal Inch) | 3.429" |
| Functional Length (mm) | 87.10mm |
| Usable Length (Decimal Inch) | 1.378" |
| Usable Length (mm) | 35.00mm |
| Overall Length (Decimal Inch) | 3.614" |
| Overall Length (mm) | 91.80mm |
| Thread Length (Decimal Inch) | 0.512" |
| Thread Length (mm) | 13.00mm |
| Thread Diameter Size | MF10X1.0 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.378" |
| Recommended Premachined Hole Diameter (mm) | 9.60mm |
| Connection Size Code | 10.00X8.00 |
| Connection Size Code Machine Side | 10.00X8.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.378" |
| Maximum Premachined Hole Diameter (mm) | 9.60mm |
| Minimum Thread Pitch (Decimal Inch) | 0.039" |
| Minimum Thread Pitch (mm) | 1.00mm |
| Maximum Thread Pitch (Decimal Inch) | 0.039" |
| Maximum Thread Pitch (mm) | 1.00mm |
| Number of Flute | 5 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | C |
| Thread Form Type | MF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T33 |
| Cutting Geometry Type Technical | Oil grooves |
| Material | HSS-E-PM |
| Coating | TiCN |

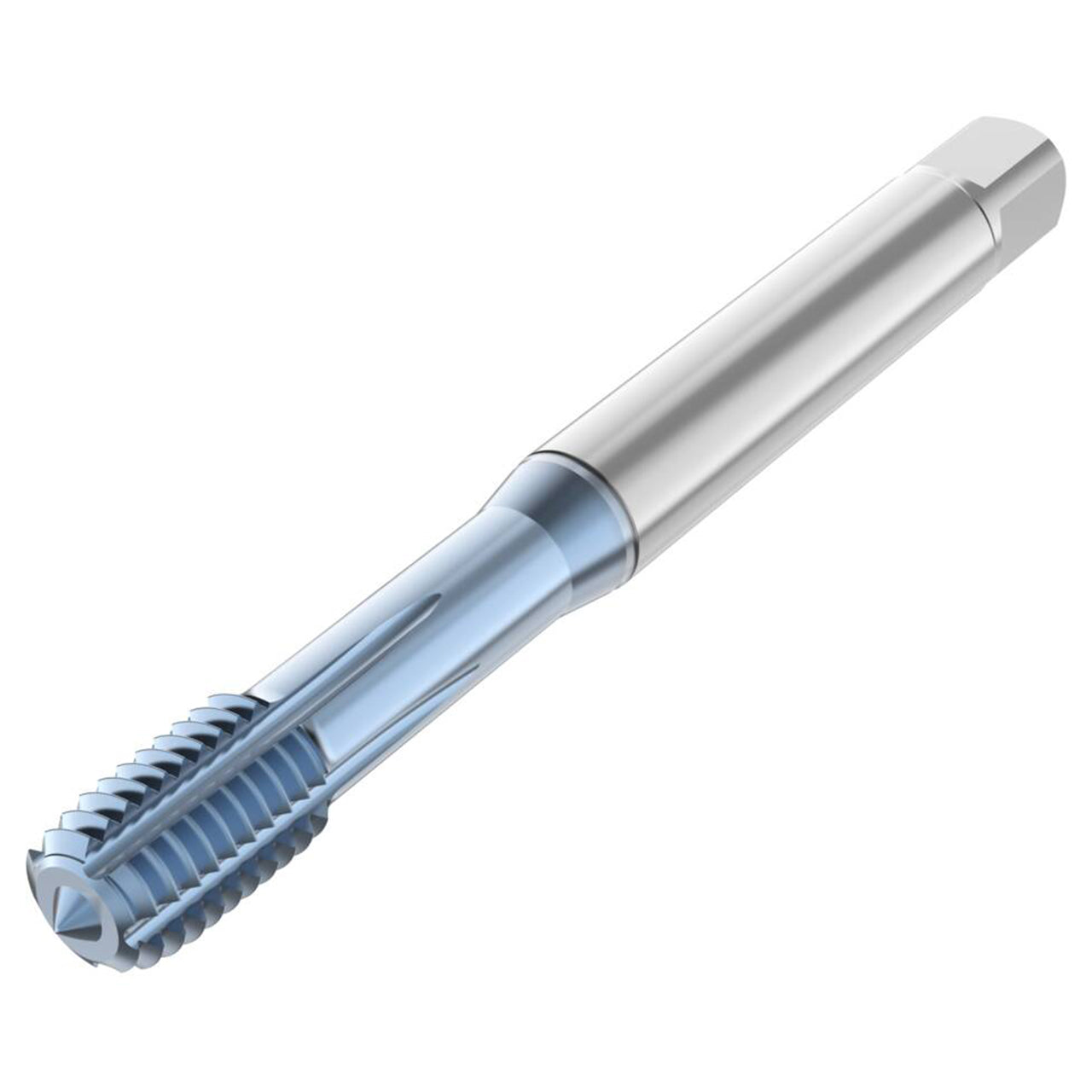

| Product Type | Thread Forming Tap |
