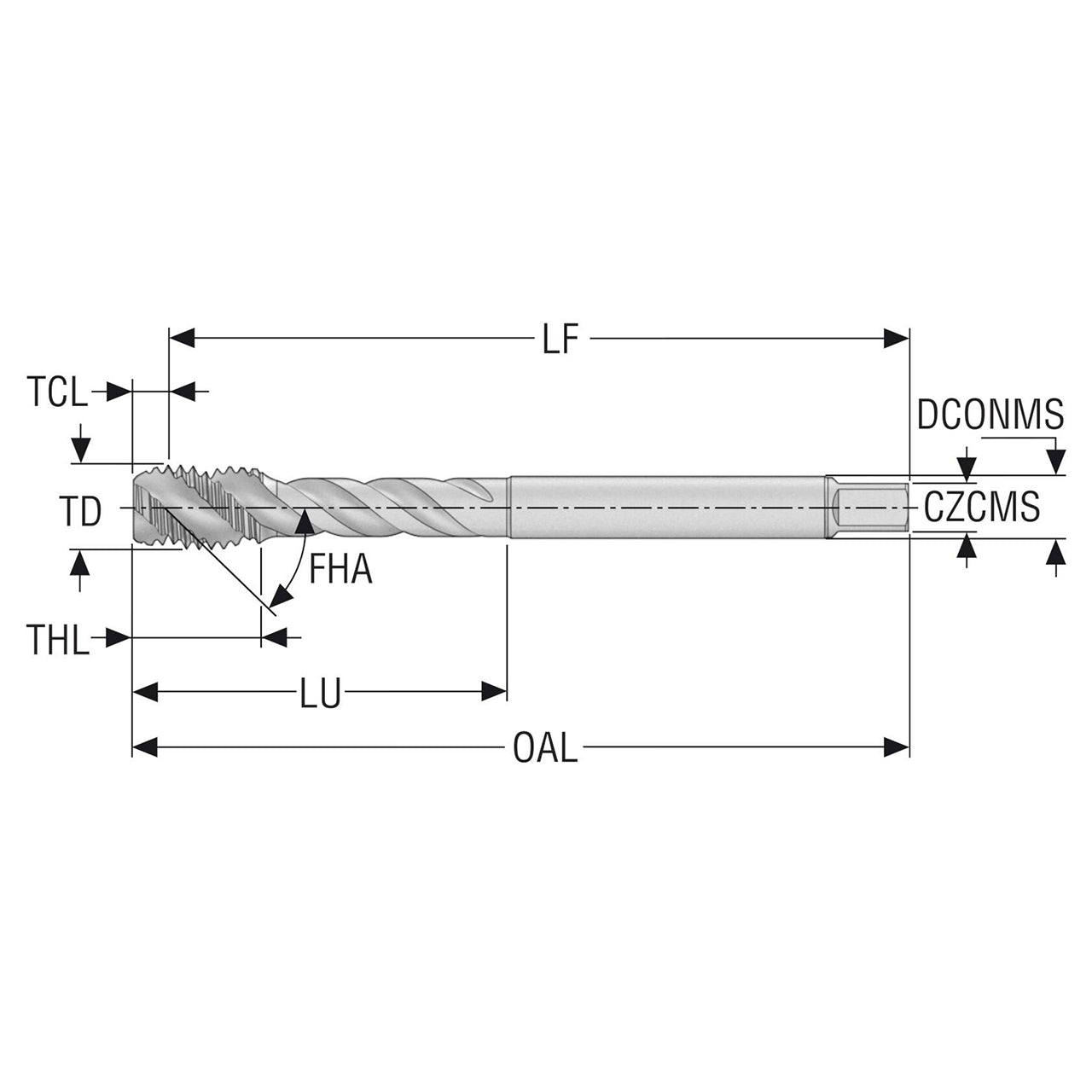

Product Specifications
| Manufacturer Part Number | 10139116 |
| Thread Diameter (Decimal Inch) | 0.915" |
| Thread Diameter (mm) | 23.25mm |
| Threading Chamfer Length (Decimal Inch) | 0.179" |
| Threading Chamfer Length (mm) | 4.55mm |
| Tap Chamfer Length (Decimal Inch) | 0.179" |
| Tap Chamfer Length (mm) | 4.55mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.709" |
| Connection Diameter Machine Side (mm) | 18.00mm |
| Shank Diameter (Decimal Inch) | 0.709" |
| Shank Diameter (mm) | 18.00mm |
| Functional Length (Decimal Inch) | 6.120" |
| Functional Length (mm) | 155.45mm |
| Usable Length (Decimal Inch) | 4.449" |
| Usable Length (mm) | 113.00mm |
| Overall Length (Decimal Inch) | 6.299" |
| Overall Length (mm) | 160.00mm |
| Thread Length (Decimal Inch) | 1.181" |
| Thread Length (mm) | 30.00mm |
| Thread Diameter Size | EGM20 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.817" |
| Recommended Premachined Hole Diameter (mm) | 20.75mm |
| Connection Size Code | 18.00X14.50 |
| Connection Size Code Machine Side | 18.00X14.50 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.823" |
| Maximum Premachined Hole Diameter (mm) | 20.90mm |
| Minimum Thread Pitch (Decimal Inch) | 0.098" |
| Minimum Thread Pitch (mm) | 2.50mm |
| Maximum Thread Pitch (Decimal Inch) | 0.098" |
| Maximum Thread Pitch (mm) | 2.50mm |
| Flute Helix Angle (Degree) | 45 Degree |
| Number of Flute | 4 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6H mod |
| Threading Chamfer Type | E |
| Thread Form Type | EGM |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T34 |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E-PM |
| Coating | TiAIN+WC/C |

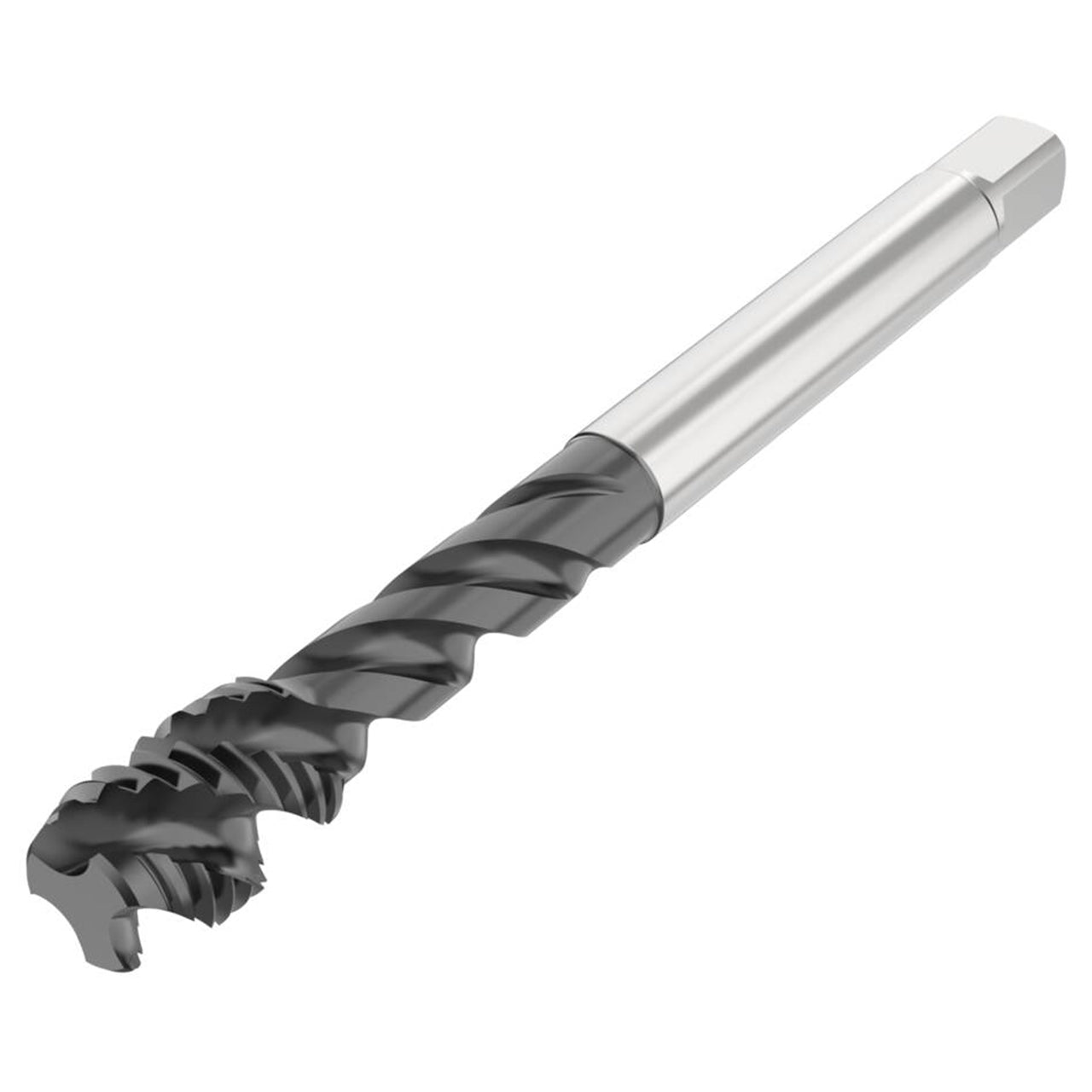

| Product Type | Spiral Flute Tap |
