Product Specifications
| Manufacturer Part Number | 10139106 |
| Thread Diameter (Decimal Inch) | 0.171" |
| Thread Diameter (mm) | 4.33mm |
| Threading Chamfer Length (Decimal Inch) | 0.044" |
| Threading Chamfer Length (mm) | 1.12mm |
| Tap Chamfer Length (Decimal Inch) | 0.044" |
| Tap Chamfer Length (mm) | 1.12mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.236" |
| Connection Diameter Machine Side (mm) | 6.00mm |
| Shank Diameter (Decimal Inch) | 0.236" |
| Shank Diameter (mm) | 6.00mm |
| Functional Length (Decimal Inch) | 2.712" |
| Functional Length (mm) | 68.88mm |
| Usable Length (Decimal Inch) | 0.984" |
| Usable Length (mm) | 25.00mm |
| Overall Length (Decimal Inch) | 2.756" |
| Overall Length (mm) | 70.00mm |
| Thread Length (Decimal Inch) | 0.276" |
| Thread Length (mm) | 7.00mm |
| Thread Diameter Size | EGUNF6-40 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.146" |
| Recommended Premachined Hole Diameter (mm) | 3.70mm |
| Connection Size Code | 6.00X4.90 |
| Connection Size Code Machine Side | 6.00X4.90 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.150" |
| Maximum Premachined Hole Diameter (mm) | 3.82mm |
| Minimum Threads Per Inch (mm) | 40.00mm |
| Maximum Threads Per Inch (mm) | 40.00mm |
| Flute Helix Angle (Degree) | 45 Degree |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2B |
| Threading Chamfer Type | E |
| Thread Form Type | EGUNF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T34 |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E-PM |
| Coating | TiAIN+WC/C |

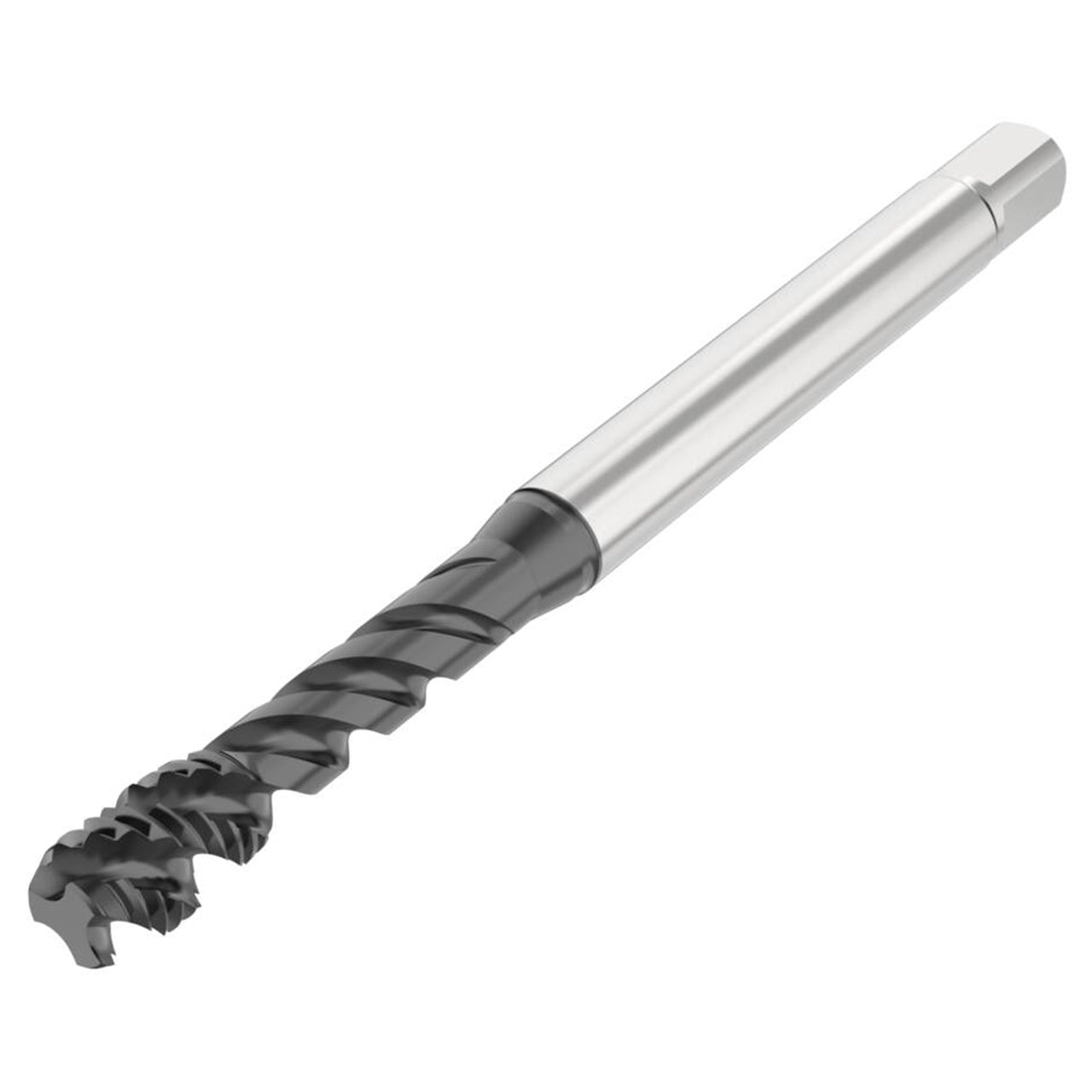

| Product Type | Spiral Flute Tap |
