Product Specifications

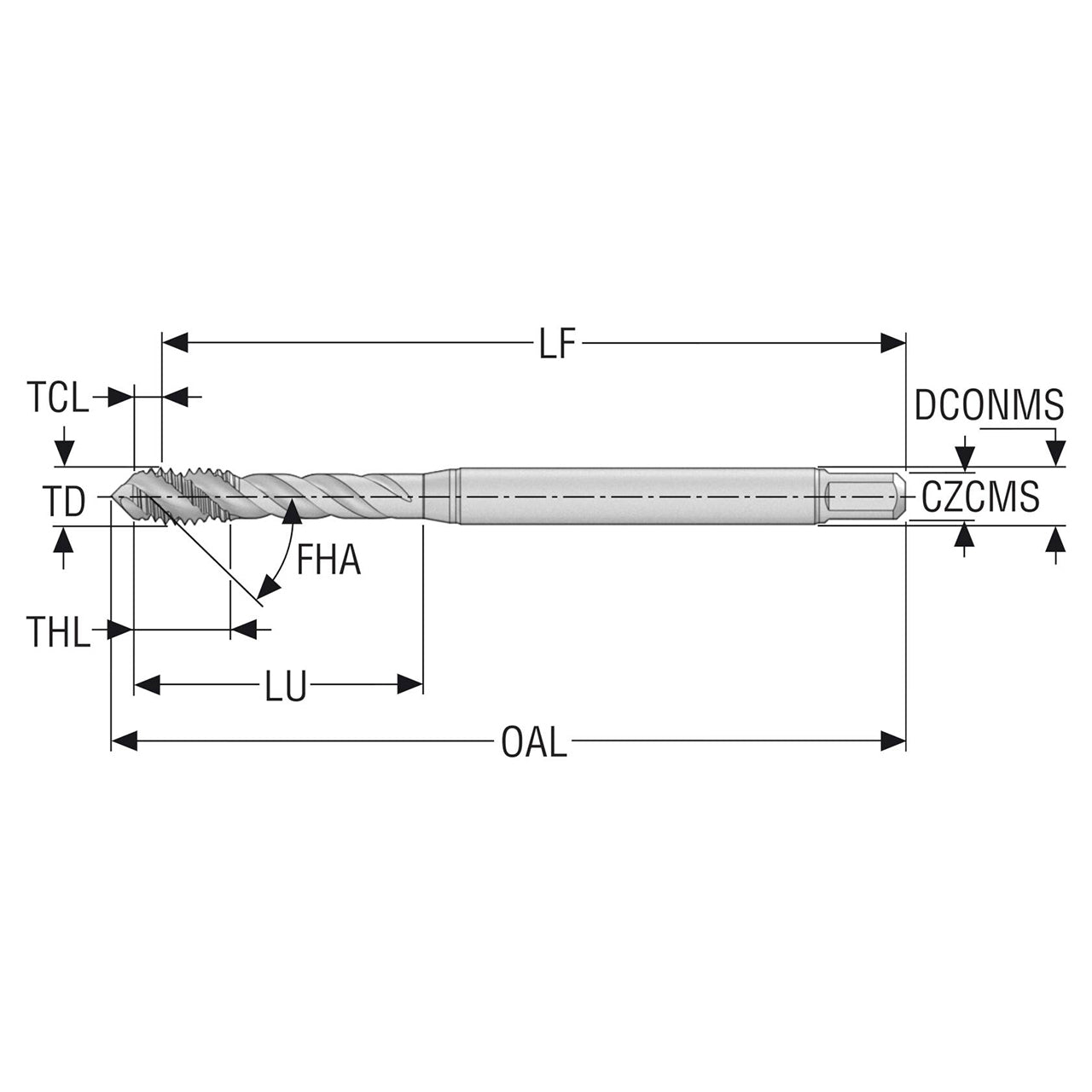

| Manufacturer Part Number | 10139067 |
| Thread Diameter (Decimal Inch) | 0.112" |
| Thread Diameter (mm) | 2.85mm |
| Threading Chamfer Length (Decimal Inch) | 0.051" |
| Threading Chamfer Length (mm) | 1.29mm |
| Tap Chamfer Length (Decimal Inch) | 0.051" |
| Tap Chamfer Length (mm) | 1.29mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.138" |
| Connection Diameter Machine Side (mm) | 3.50mm |
| Shank Diameter (Decimal Inch) | 0.138" |
| Shank Diameter (mm) | 3.50mm |
| Functional Length (Decimal Inch) | 2.154" |
| Functional Length (mm) | 54.71mm |
| Usable Length (Decimal Inch) | 0.709" |
| Usable Length (mm) | 18.00mm |
| Overall Length (Decimal Inch) | 2.252" |
| Overall Length (mm) | 57.20mm |
| Thread Length (Decimal Inch) | 0.197" |
| Thread Length (mm) | 5.00mm |
| Thread Diameter Size | UNF4-48 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.095" |
| Recommended Premachined Hole Diameter (mm) | 2.40mm |
| Connection Size Code | 3.50X2.70 |
| Connection Size Code Machine Side | 3.50X2.70 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.097" |
| Maximum Premachined Hole Diameter (mm) | 2.46mm |
| Minimum Threads Per Inch (mm) | 48.00mm |
| Maximum Threads Per Inch (mm) | 48.00mm |
| Flute Helix Angle (Degree) | 45 Degree |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2BX |
| Threading Chamfer Type | C |
| Thread Form Type | UNF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T34 |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E-PM |
| Coating | TiAIN+WC/C |

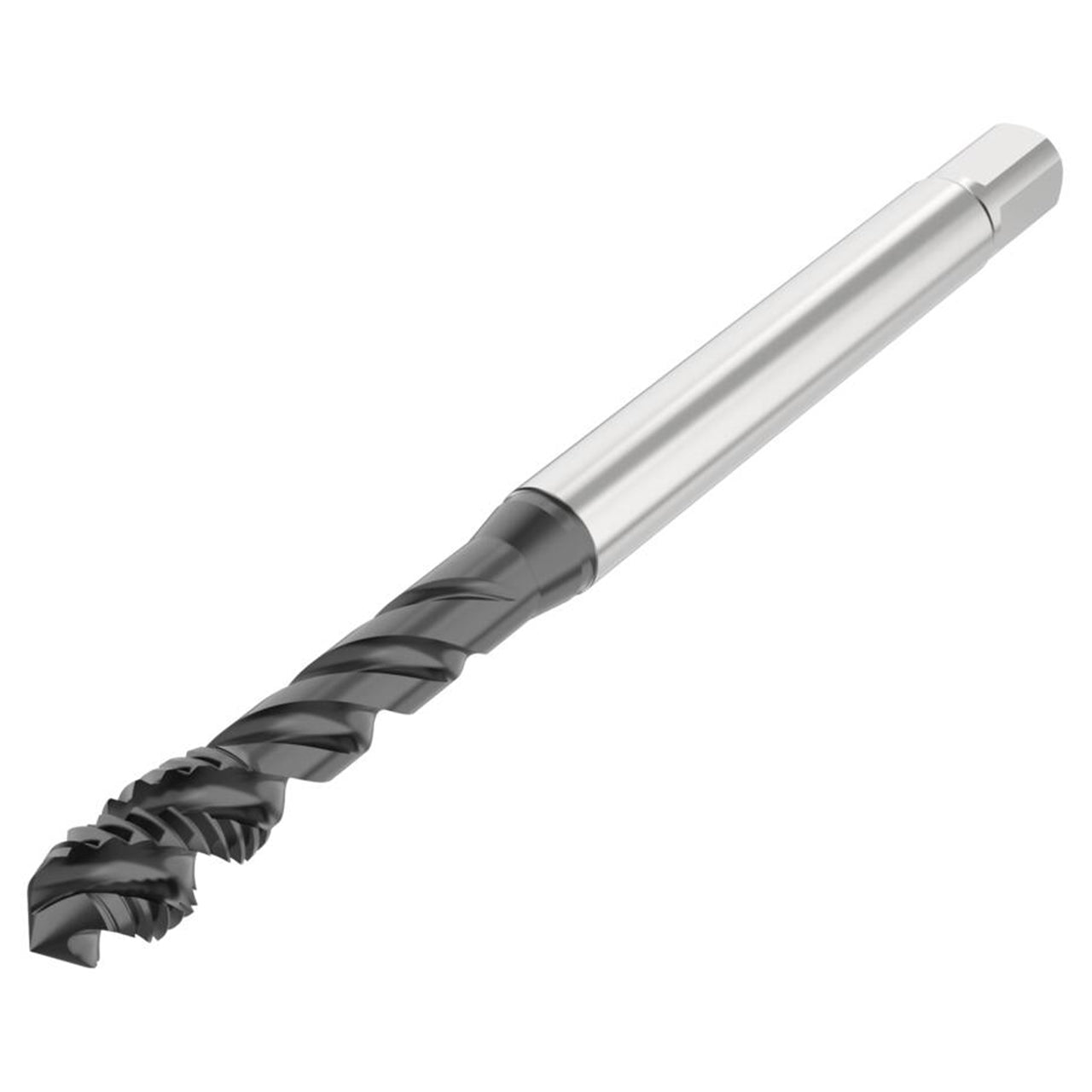

| Product Type | Spiral Flute Tap |
