Product Specifications
| Manufacturer Part Number | 10139066 |

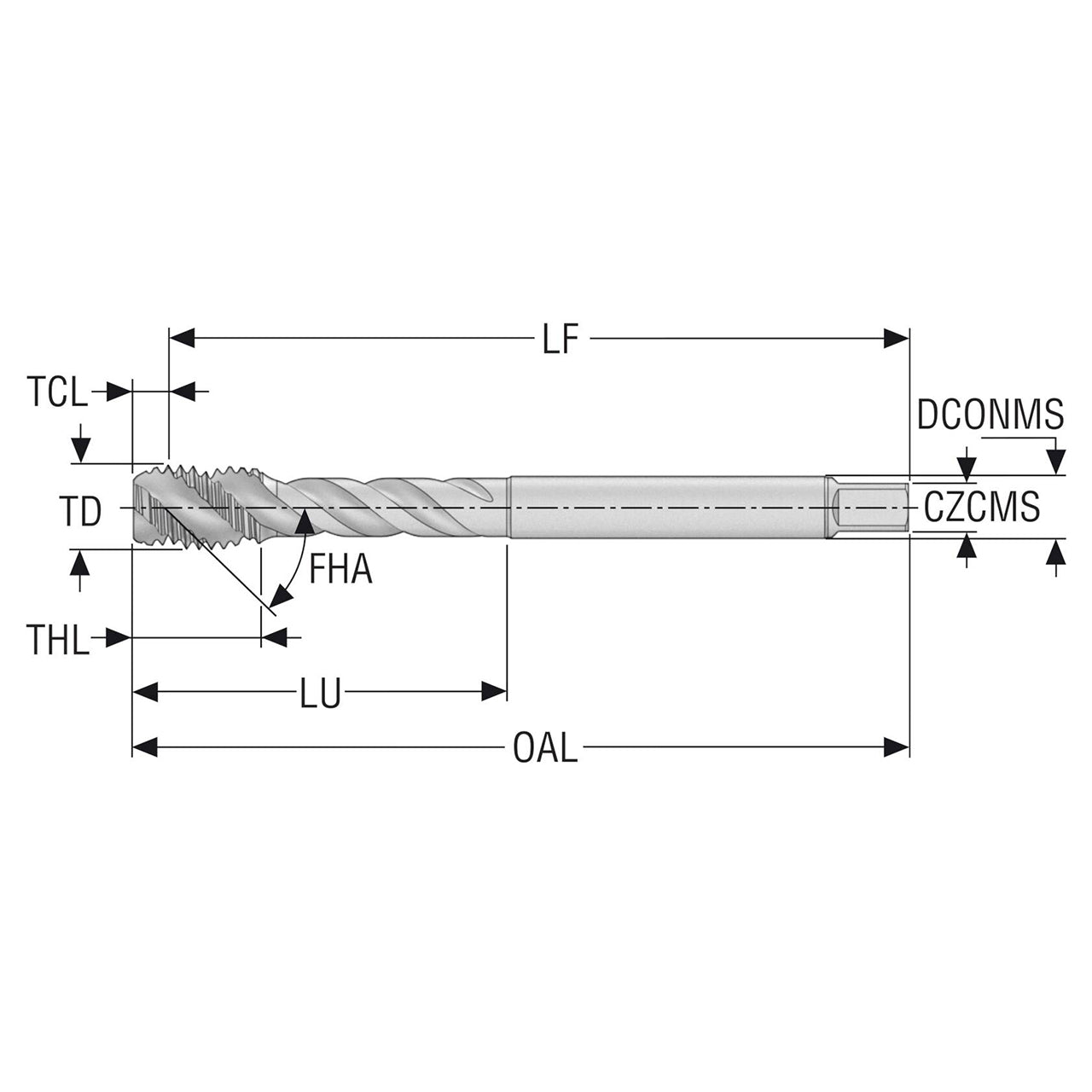

| Thread Diameter (Decimal Inch) | 0.625" |
| Thread Diameter (mm) | 15.88mm |
| Threading Chamfer Length (Decimal Inch) | 0.231" |
| Threading Chamfer Length (mm) | 5.87mm |
| Tap Chamfer Length (Decimal Inch) | 0.231" |
| Tap Chamfer Length (mm) | 5.87mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.472" |
| Connection Diameter Machine Side (mm) | 12.00mm |
| Shank Diameter (Decimal Inch) | 0.472" |
| Shank Diameter (mm) | 12.00mm |
| Functional Length (Decimal Inch) | 4.100" |
| Functional Length (mm) | 104.13mm |
| Usable Length (Decimal Inch) | 2.677" |
| Usable Length (mm) | 68.00mm |
| Overall Length (Decimal Inch) | 4.331" |
| Overall Length (mm) | 110.00mm |
| Thread Length (Decimal Inch) | 0.866" |
| Thread Length (mm) | 22.00mm |
| Thread Diameter Size | UNC5/8-11 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.532" |
| Recommended Premachined Hole Diameter (mm) | 13.50mm |
| Connection Size Code | 12.00X9.00 |
| Connection Size Code Machine Side | 12.00X9.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.546" |
| Maximum Premachined Hole Diameter (mm) | 13.87mm |
| Minimum Threads Per Inch (mm) | 11.00mm |
| Maximum Threads Per Inch (mm) | 11.00mm |
| Flute Helix Angle (Degree) | 45 Degree |
| Number of Flute | 4 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2BX |
| Threading Chamfer Type | C |
| Thread Form Type | UNC |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T34 |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E-PM |
| Coating | TiAIN+WC/C |

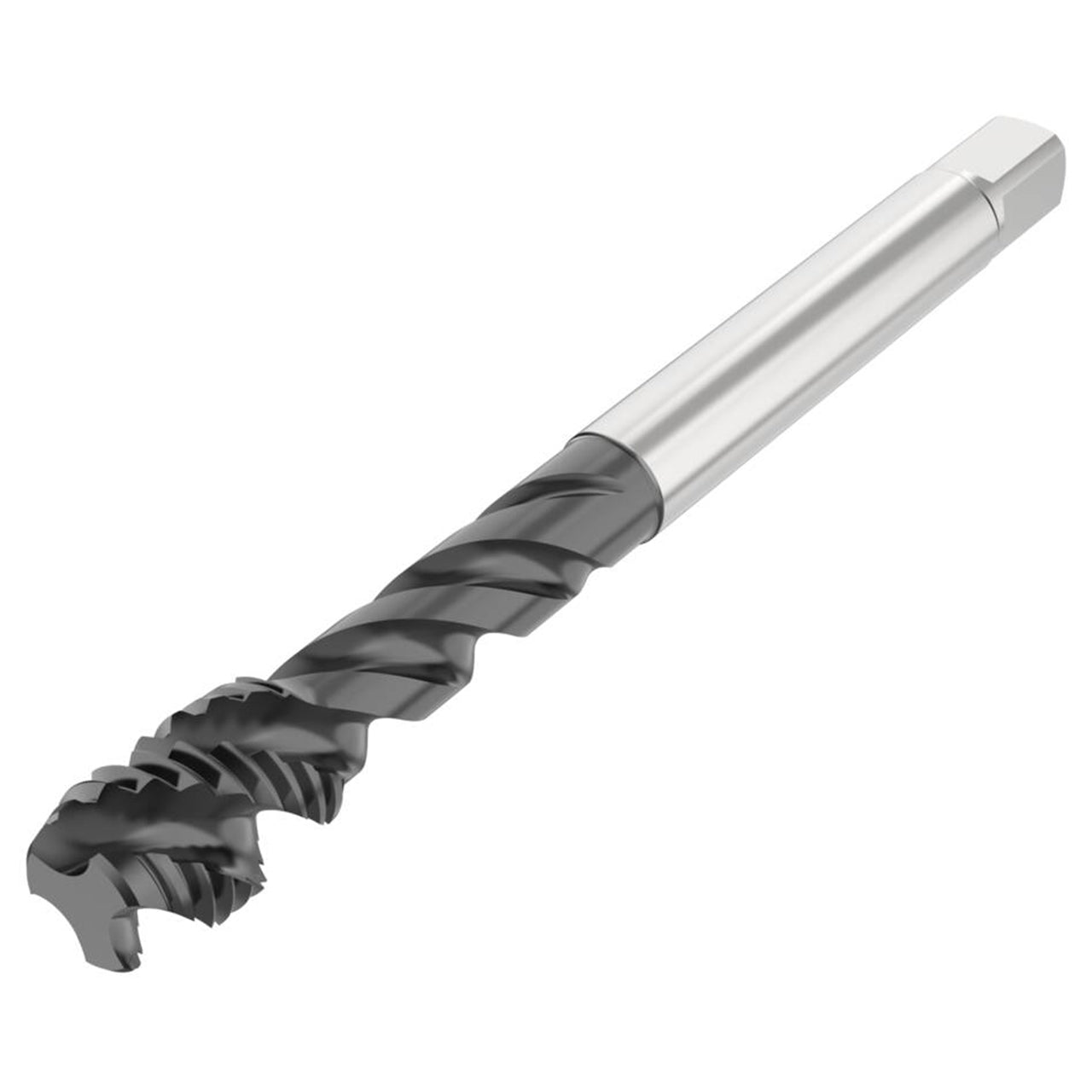

| Product Type | Spiral Flute Tap |
