Product Specifications
| Manufacturer Part Number | 10139028 |
| Thread Diameter (Decimal Inch) | 0.394" |
| Thread Diameter (mm) | 10.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.103" |
| Threading Chamfer Length (mm) | 2.62mm |
| Tap Chamfer Length (Decimal Inch) | 0.103" |
| Tap Chamfer Length (mm) | 2.62mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.276" |
| Connection Diameter Machine Side (mm) | 7.00mm |
| Shank Diameter (Decimal Inch) | 0.276" |
| Shank Diameter (mm) | 7.00mm |
| Functional Length (Decimal Inch) | 3.440" |
| Functional Length (mm) | 87.38mm |
| Usable Length (Decimal Inch) | 1.378" |
| Usable Length (mm) | 35.00mm |
| Overall Length (Decimal Inch) | 3.543" |
| Overall Length (mm) | 90.00mm |
| Thread Length (Decimal Inch) | 0.394" |
| Thread Length (mm) | 10.00mm |
| Thread Diameter Size | MF10X1.0 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.354" |
| Recommended Premachined Hole Diameter (mm) | 9.00mm |
| Connection Size Code | 7.00X5.50 |
| Connection Size Code Machine Side | 7.00X5.50 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.360" |
| Maximum Premachined Hole Diameter (mm) | 9.15mm |
| Minimum Thread Pitch (Decimal Inch) | 0.039" |
| Minimum Thread Pitch (mm) | 1.00mm |
| Maximum Thread Pitch (Decimal Inch) | 0.039" |
| Maximum Thread Pitch (mm) | 1.00mm |
| Flute Helix Angle (Degree) | 45 Degree |
| Number of Flute | 3 |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 1 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | C |
| Thread Form Type | MF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T34 |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E-PM |
| Coating | TiAIN+WC/C |

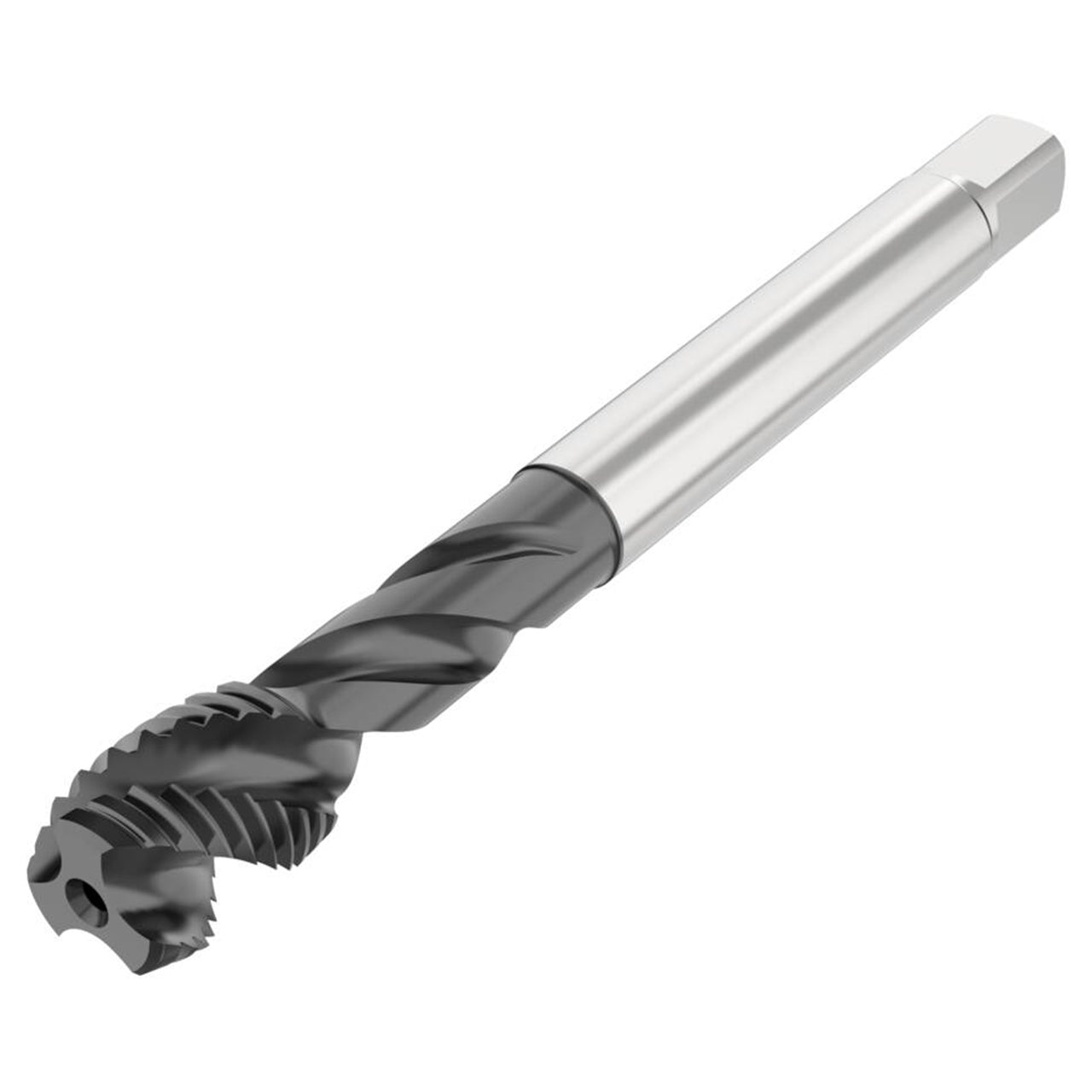

| Product Type | Spiral Flute Tap |
