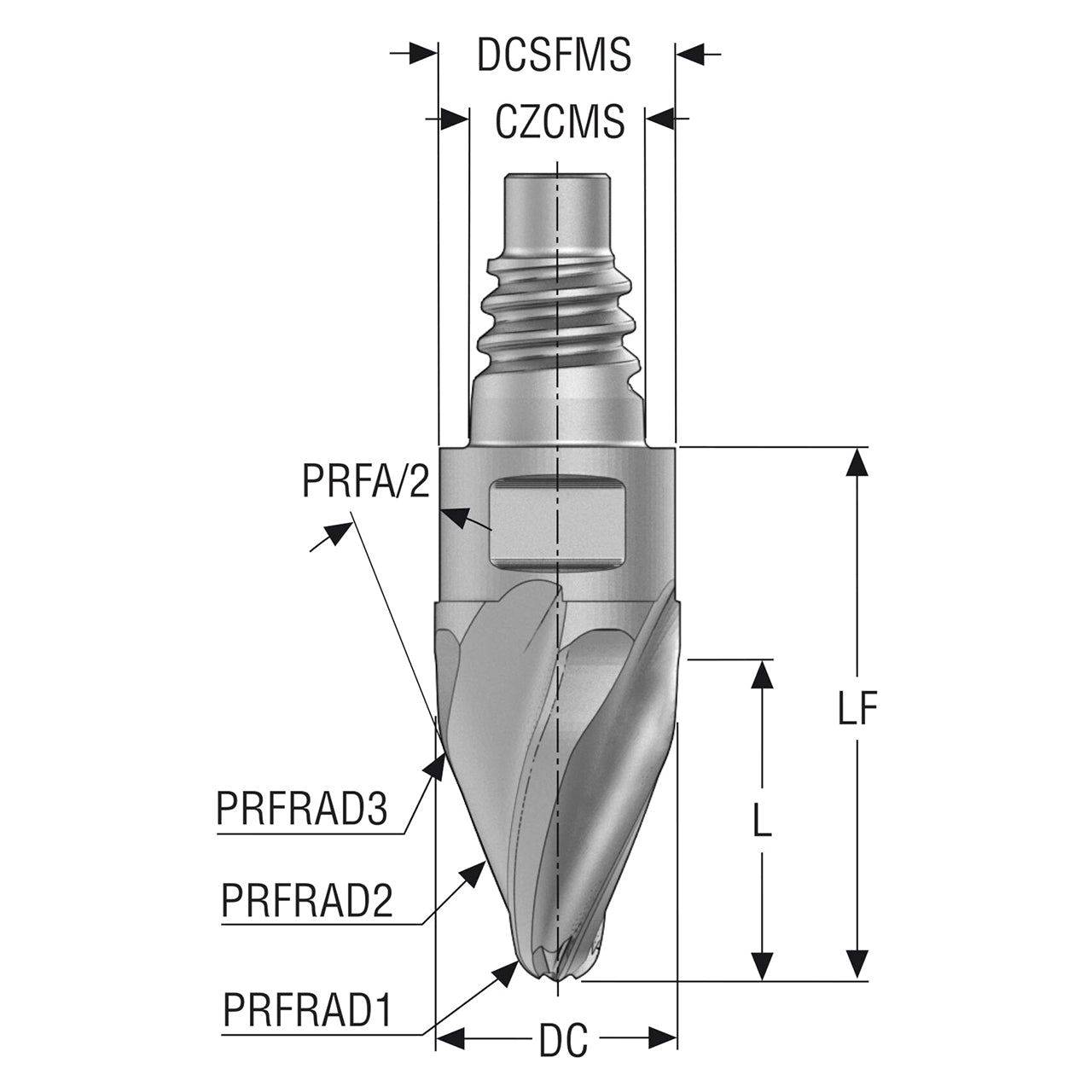

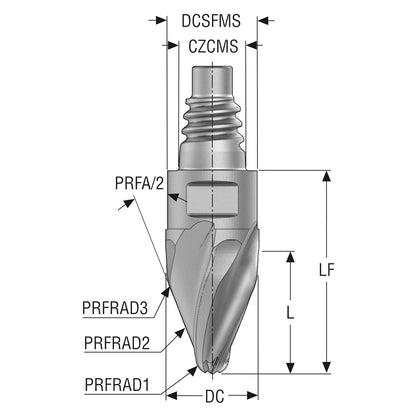

Product Specifications
| Manufacturer Part Number | 10138394 |
| Cutting Diameter (mm) | 16.00mm |
| Cutting Diameter 1 (mm) | 16.00mm |
| Contact Surface Diameter Machine Side (mm) | 15.50mm |
| Lower Cutting Diameter Tolerance (mm) | -0.045 |
| Cutting Edge Effective Length (mm) | 24.00mm |
| Functional Length (mm) | 34.10mm |
| Head Length (mm) | 24.80mm |
| Overall Length (mm) | 51.10mm |
| Maximum Depth of Cut (mm) | 24.00mm |
| Theoretical Cutting Edge Length (mm) | 24.00mm |
| Radial Runout (mm) | 0.02mm |
| Cutting Edge Count | 4 |
| Cutting Geometry Type | XHT740 |
| Cutting Geometry Type Technical | XHT740 |
| Connection Size Code | E16 |
| Connection Size Code Machine Side | E16 |
| Face Cutting Edge Count | 4 |
| Flute Helix Angle (Degree) | 20 Degree |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | 10 Degree |
| Rake Radial Angle (Degree) | 10 Degree |
| Axial Rake Angle (Degree) | 5 Degree |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Length Variant Cataloque | 3 |
| Number of Flute | 4 |
| Pheripheral Cutting Edge Count | 4 |
| Coating | SIRON-A |

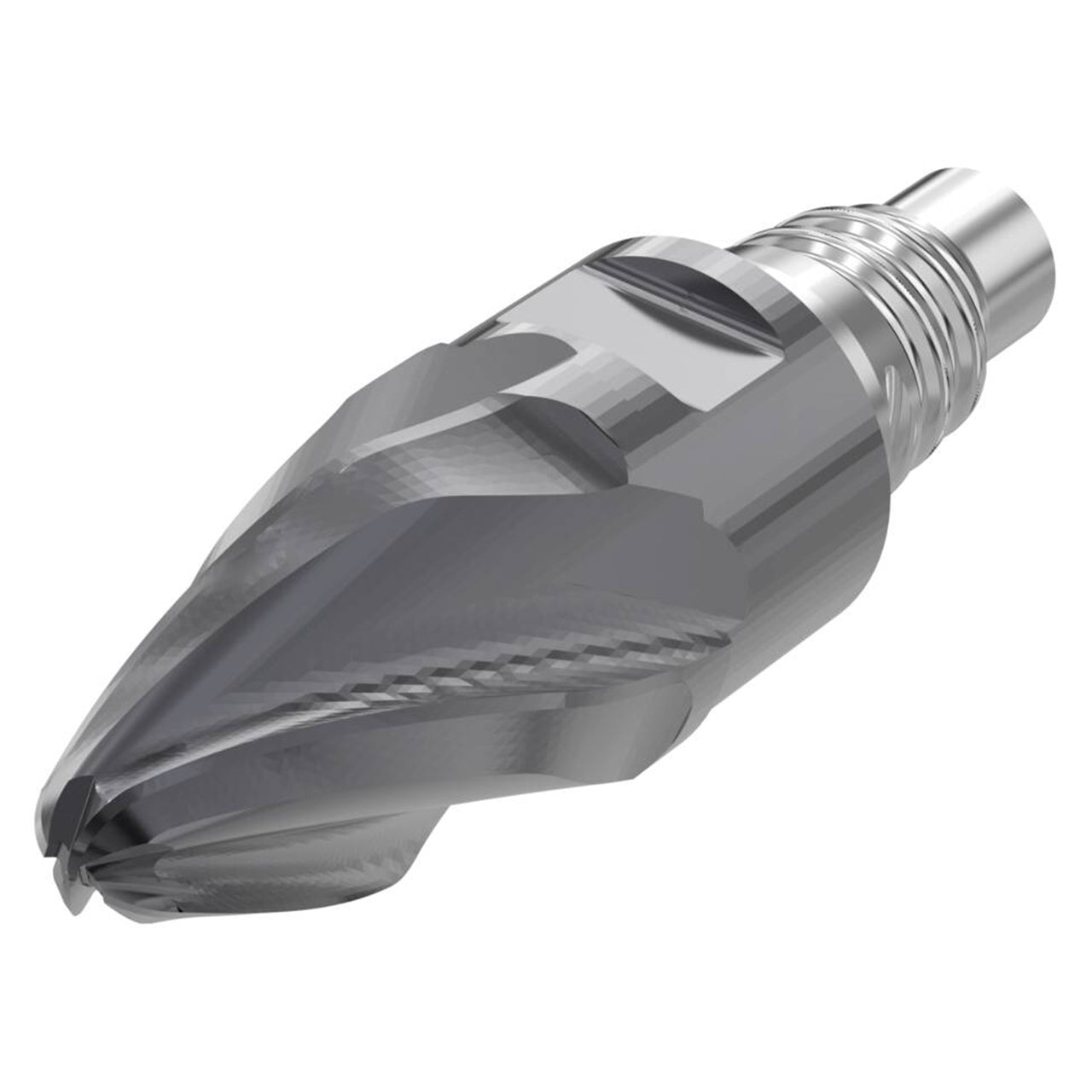

| Product Type | Exchangeable Head Mill |
