Product Specifications
| Manufacturer Part Number | 10138370 |

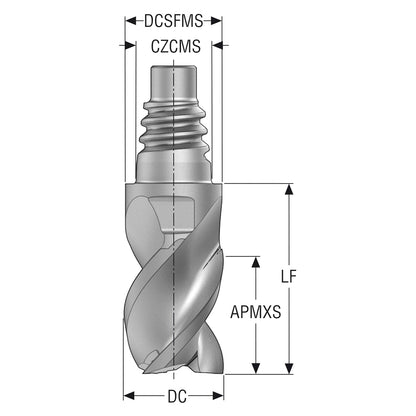

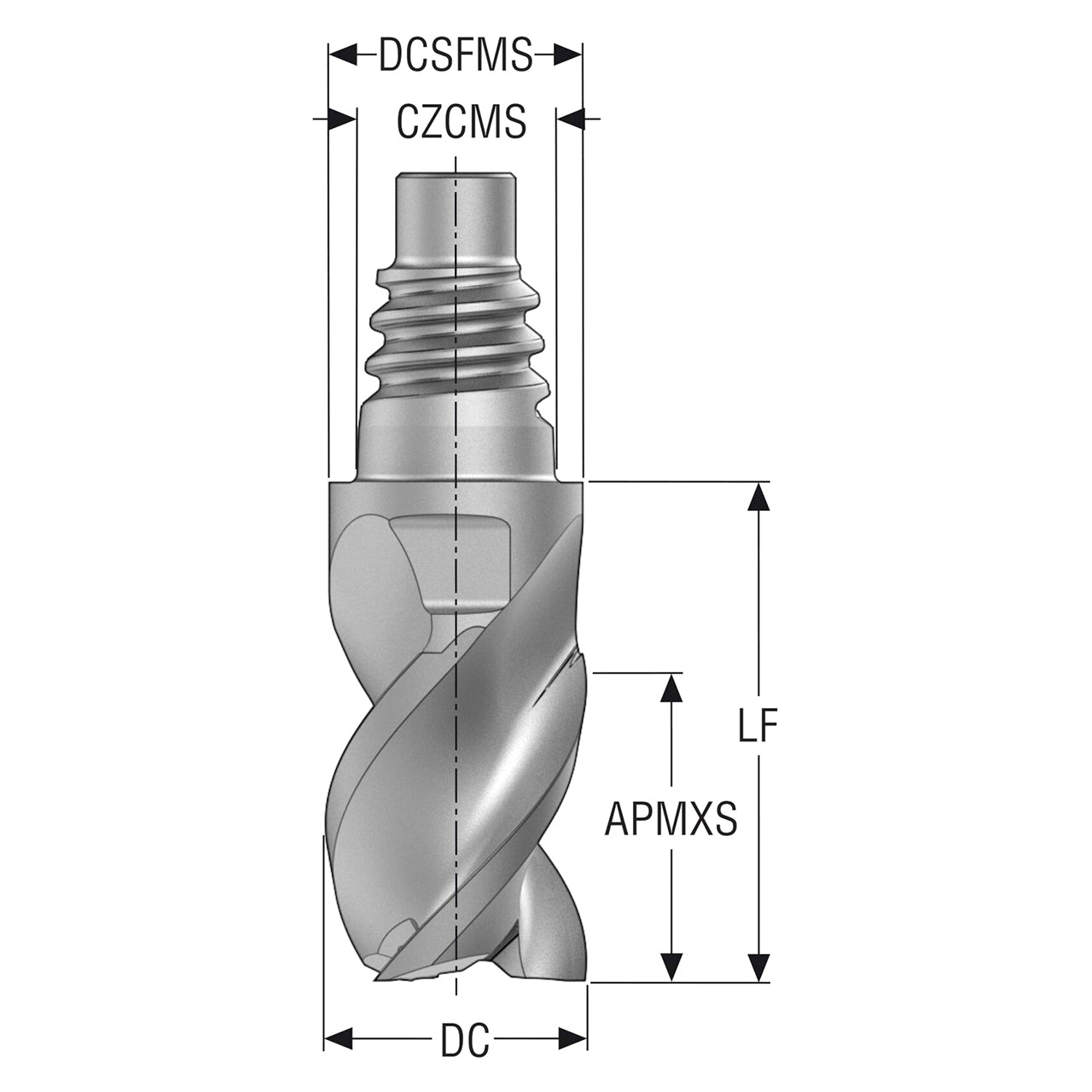

| Cutting Diameter (Decimal Inch) | 0.375" |
| Cutting Diameter (mm) | 9.53mm |
| Cutting Diameter 1 (Decimal Inch) | 0.375" |
| Cutting Diameter 1 (mm) | 9.53mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.364" |
| Contact Surface Diameter Machine Side (mm) | 9.25mm |
| Lower Cutting Diameter Tolerance (Decimal Inch) | -0.002 |
| Lower Cutting Diameter Tolerance (mm) | -0.0508 |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.731" |
| Maximum Helical Interpolation Hole Diameter (mm) | 18.57mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.488" |
| Minimum Helical Interpolation Hole Diameter (mm) | 12.38mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.450" |
| Cutting Edge Effective Length (mm) | 11.43mm |
| Functional Length (Decimal Inch) | 0.721" |
| Functional Length (mm) | 18.30mm |
| Head Length (Decimal Inch) | 0.484" |
| Head Length (mm) | 12.30mm |
| Overall Length (Decimal Inch) | 1.158" |
| Overall Length (mm) | 29.40mm |
| Maximum Depth of Cut (mm) | 11.43mm |
| Maximum Depth of Cut (Decimal Inch) | 0.450" |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.450" |
| Theoretical Cutting Edge Length (mm) | 11.43mm |
| Radial Runout (mm) | 0.01mm |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 3 |
| Cutting Geometry Type | XSE450 |
| Cutting Geometry Type Technical | XSE450 |
| Connection Size Code | E10 |
| Connection Size Code Machine Side | E10 |
| Face Cutting Edge Count | 3 |
| Flute Helix Angle (Degree) | 45 Degree |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | 13 Degree |
| Rake Radial Angle (Degree) | 13 Degree |
| Axial Rake Angle (Degree) | 7 Degree |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 94 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Length Variant Cataloque | 2 |
| Number of Flute | 3 |
| Pheripheral Cutting Edge Count | 3 |
| Maximum Ramping Angle (Degree) | 30 Degree |
| Axial Runout (mm) | 0.01mm |
| Coating | AXT |

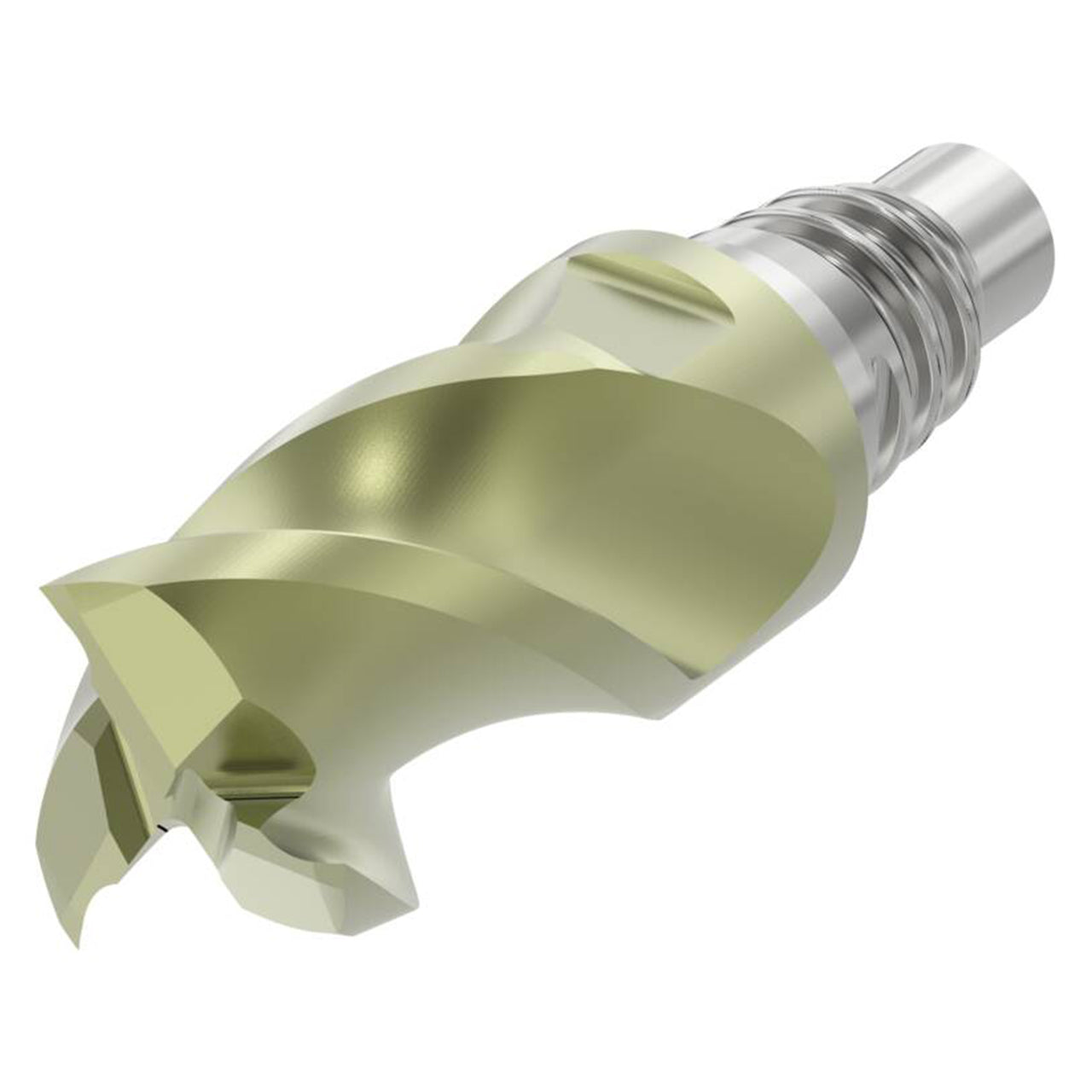

| Product Type | Exchangeable Head Mill |
