Product Specifications
| Manufacturer Part Number | 10138197 |

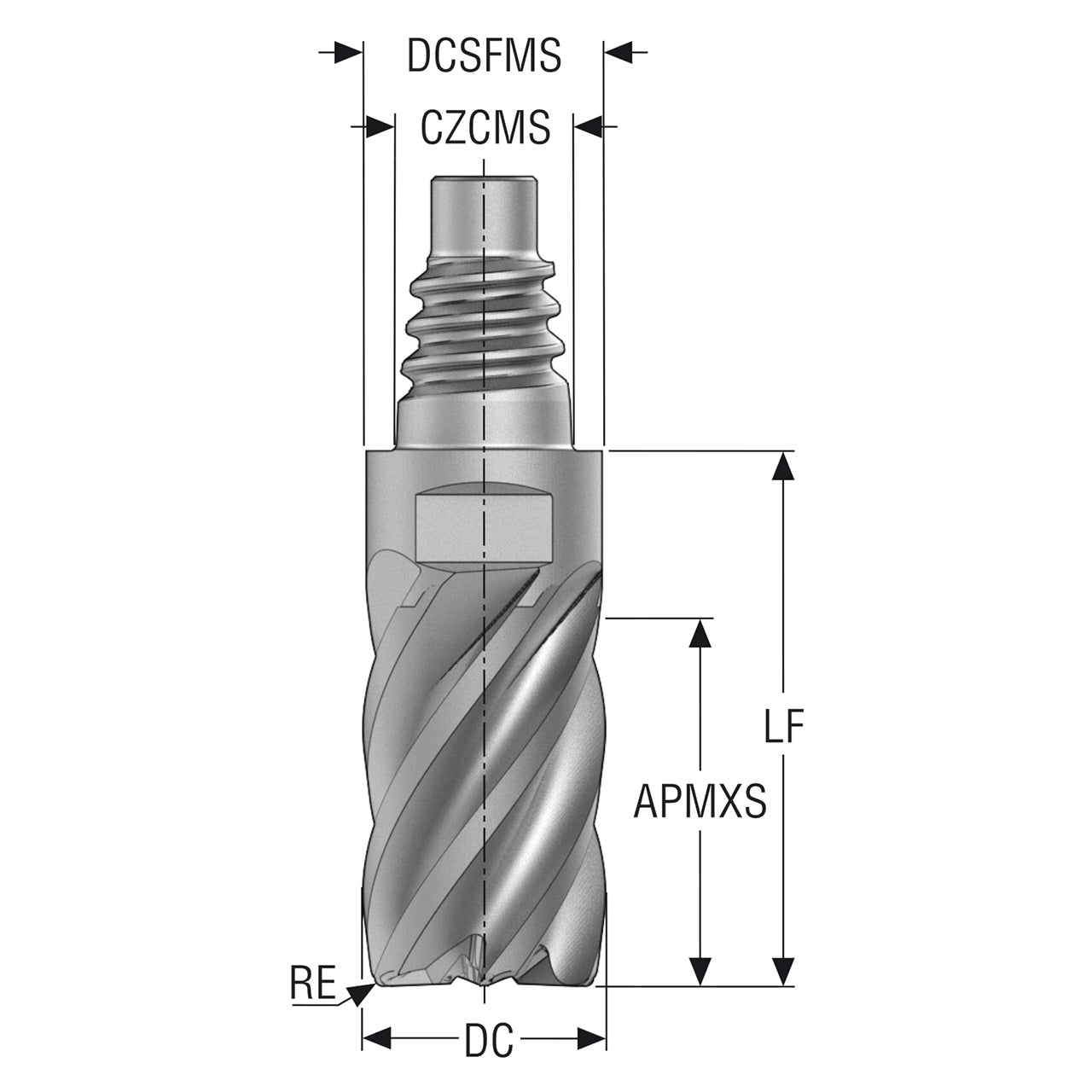

| Cutting Diameter (mm) | 20.00mm |
| Cutting Diameter 1 (mm) | 20.00mm |
| Contact Surface Diameter Machine Side (mm) | 19.30mm |
| Lower Cutting Diameter Tolerance (mm) | -0.061 |
| Maximum Helical Interpolation Hole Diameter (mm) | 38.95mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 26.00mm |
| Corner Radius (mm) | 0.50mm |
| Cutting Edge Effective Length (mm) | 30.00mm |
| Functional Length (mm) | 40.20mm |
| Head Length (mm) | 30.80mm |
| Overall Length (mm) | 59.70mm |
| Maximum Depth of Cut (mm) | 30.00mm |
| Theoretical Cutting Edge Length (mm) | 30.00mm |
| Radial Runout (mm) | 0.01mm |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 6 |
| Cutting Geometry Type | XSE720 |
| Cutting Geometry Type Technical | XSE720 |
| Connection Size Code | E20 |
| Connection Size Code Machine Side | E20 |
| Face Cutting Edge Count | 6 |
| Flute Helix Angle (Degree) | 38 Degree |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | 10 Degree |
| Rake Radial Angle (Degree) | 10 Degree |
| Axial Rake Angle (Degree) | 8 Degree |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 92 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Length Variant Cataloque | 3 |
| Number of Flute | 6 |
| Pheripheral Cutting Edge Count | 6 |
| Maximum Ramping Angle (Degree) | 2.5 Degree |
| Axial Runout (mm) | 0.01mm |
| Coating | HXT |

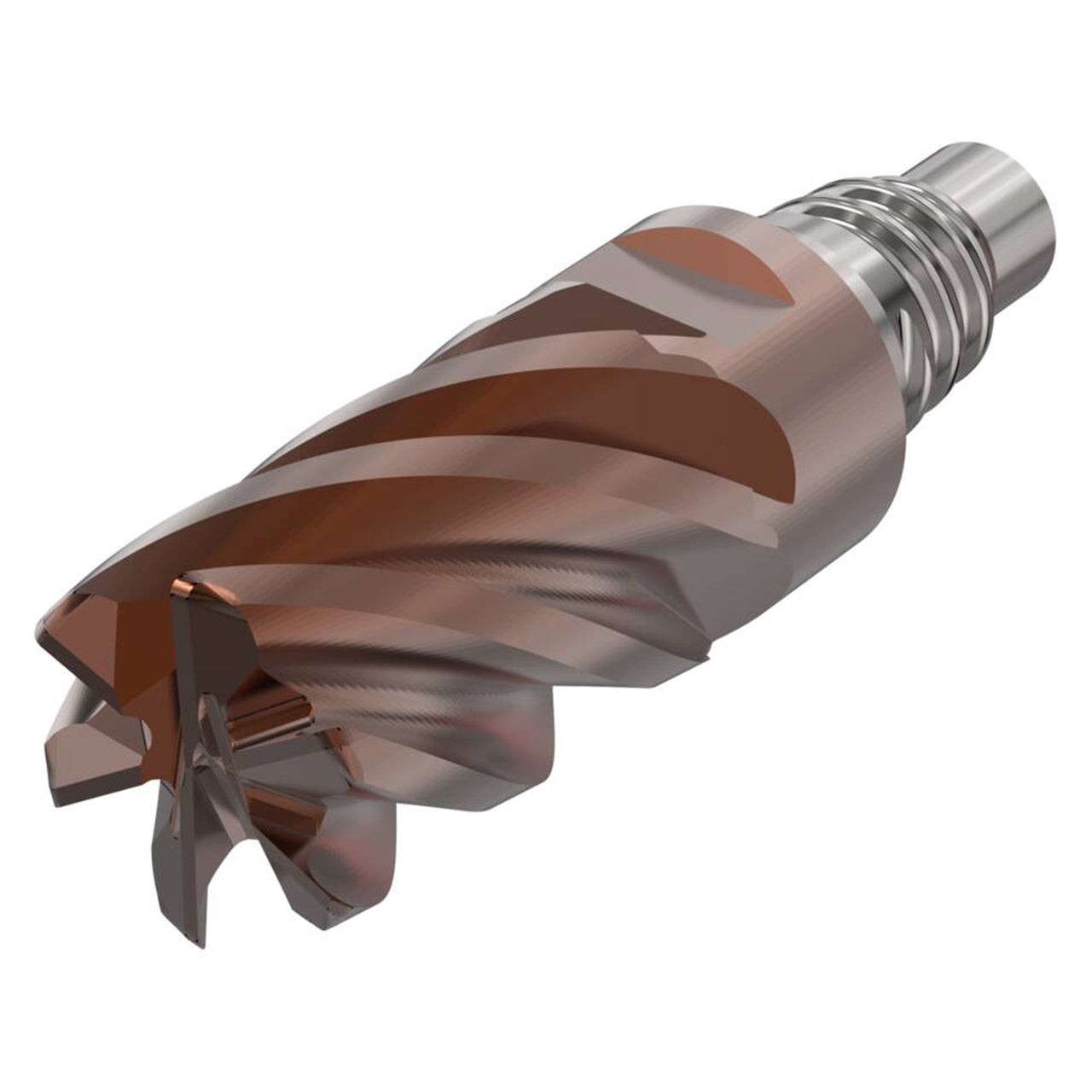

| Product Type | Exchangeable Head Mill |
