Product Specifications
| Manufacturer Part Number | 10138119 |
| Connection Diameter Machine Side (mm) | 25.00mm |
| Shank Diameter (mm) | 25.00mm |
| Contact Surface Diameter Workpiece Side (mm) | 24.10mm |
| Functional Length (mm) | 65.00mm |
| Length Variant Cataloque | 2 |
| Overall Length (mm) | 185.00mm |
| Body Half Taper Angle 2 (Degree) | 29.5 Degree |
| Maximum Rotational Speed (rpm) | 16000 rpm |
| Coolant Supply Property | 1 |
| Connection Size Code | E25 |
| Connection Size Code Workpiece Side | E25 |
| Cutting Item Material Type | Densimate |
| Shank Type | Cylindrical |

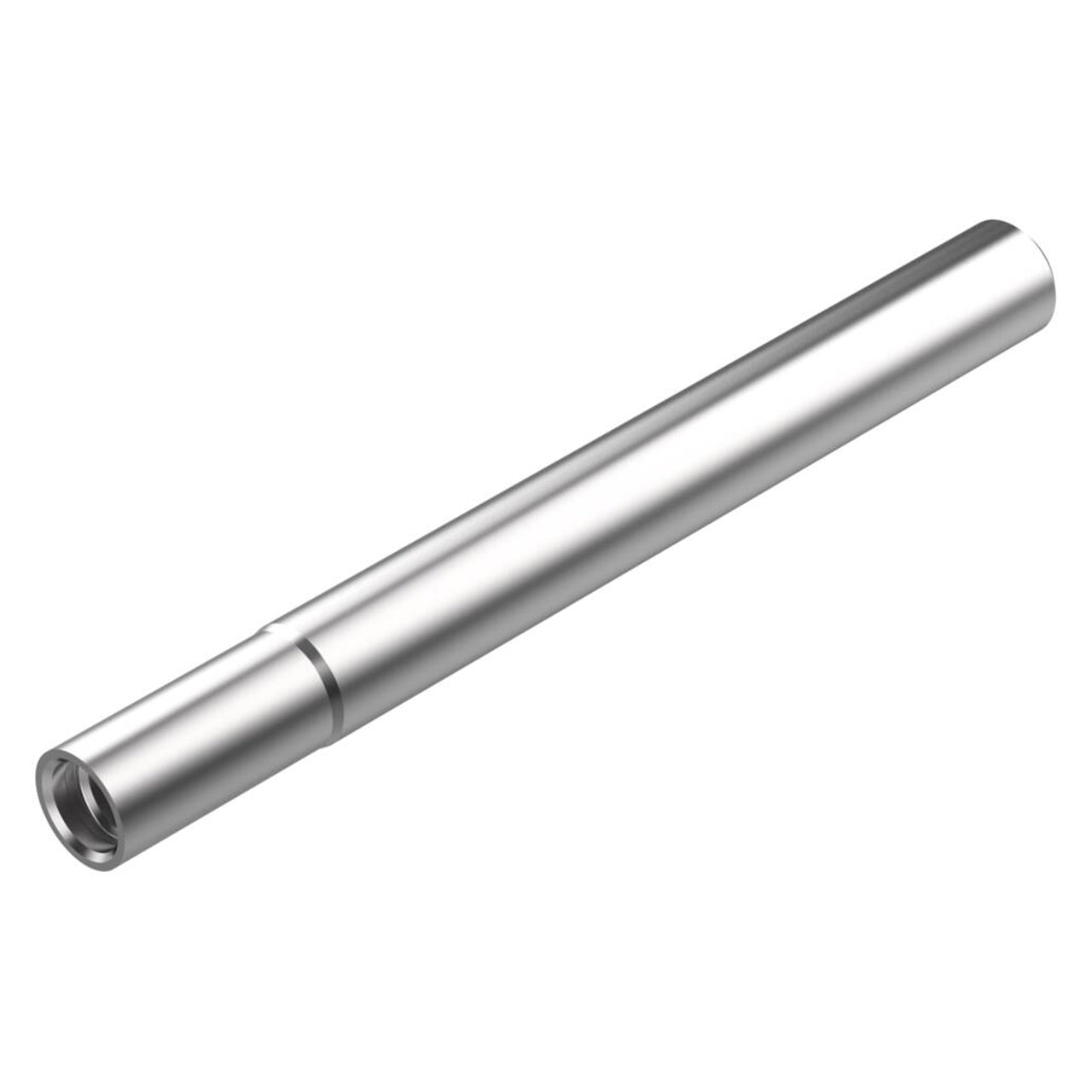

| Product Type | Replaceable Tip Milling Shank |
