Product Specifications
| Manufacturer Part Number | 10138059 |
| Connection Diameter Machine Side (Decimal Inch) | 0.625" |
| Connection Diameter Machine Side (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.625" |
| Shank Diameter (mm) | 15.88mm |
| Contact Surface Diameter Workpiece Side (Decimal Inch) | 0.606" |
| Contact Surface Diameter Workpiece Side (mm) | 15.40mm |
| Functional Length (Decimal Inch) | 1.000" |
| Functional Length (mm) | 25.40mm |
| Length Variant Cataloque | 2 |
| Overall Length (Decimal Inch) | 4.500" |
| Overall Length (mm) | 114.30mm |
| Body Half Taper Angle 2 (Degree) | 14.3 Degree |
| Maximum Rotational Speed (rpm) | 24000 rpm |
| Coolant Supply Property | 1 |
| Connection Size Code | E16 |
| Connection Size Code Workpiece Side | E16 |
| Cutting Item Material Type | STEEL |
| Shank Type | Cylindrical |

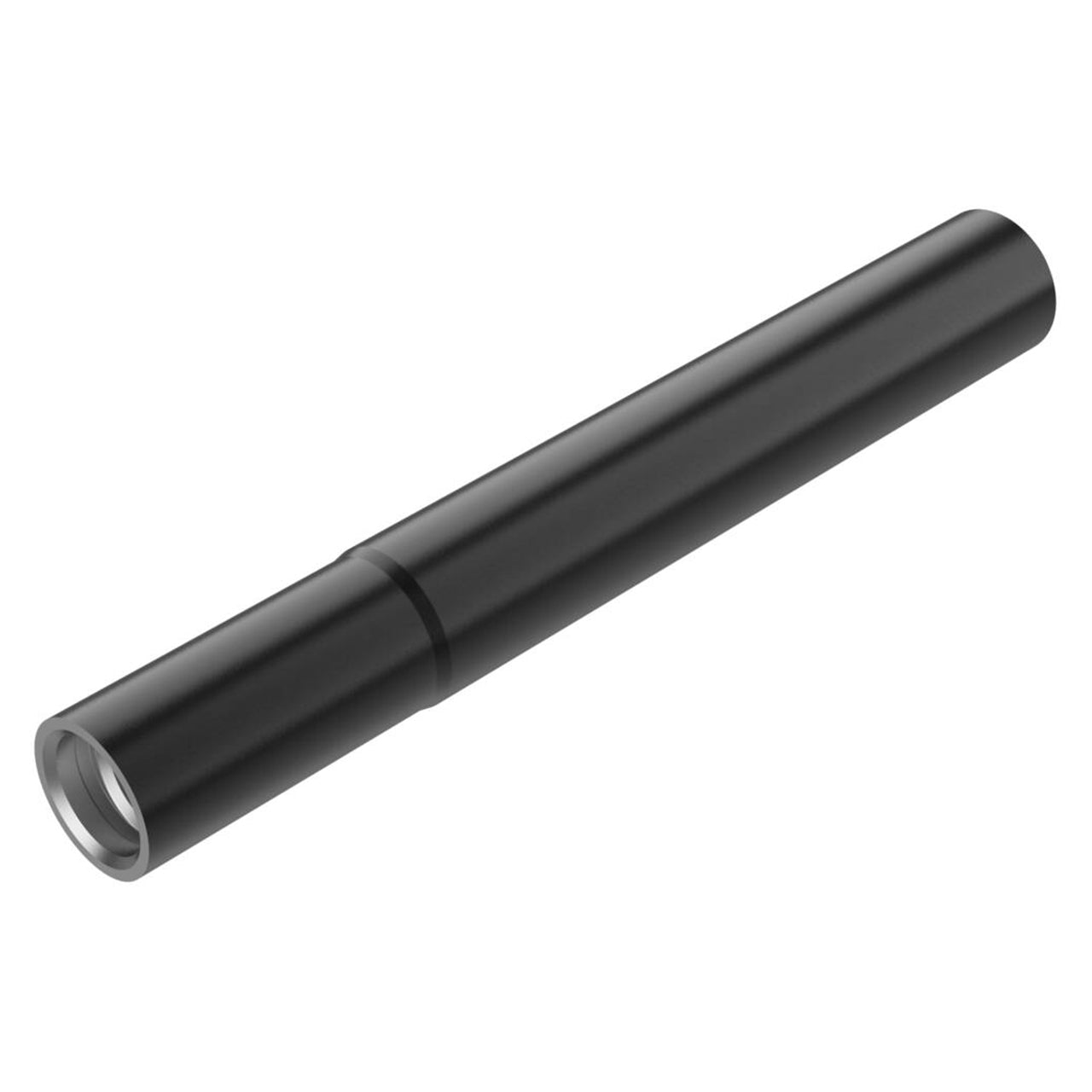

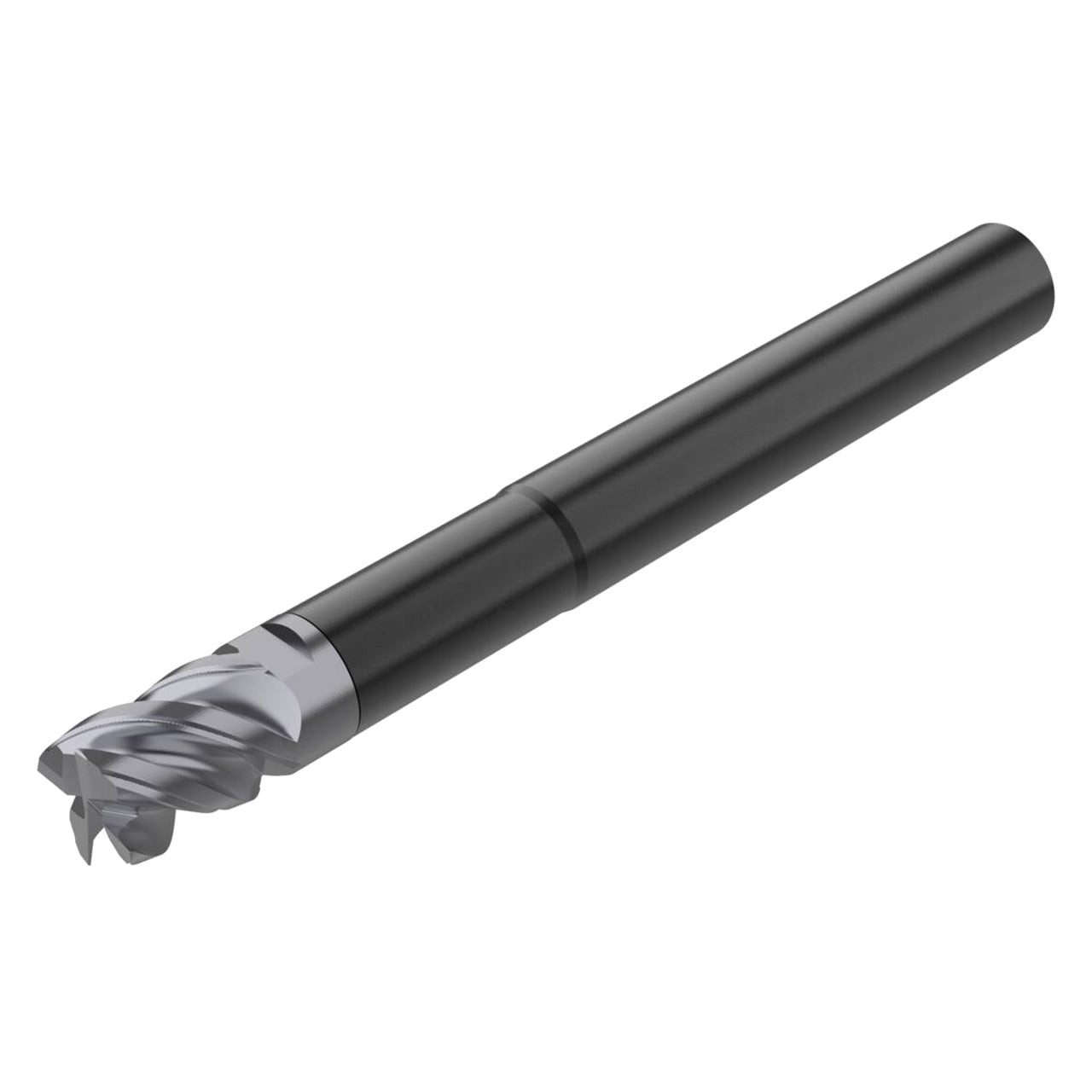

| Product Type | Replaceable Tip Milling Shank |
