Product Specifications

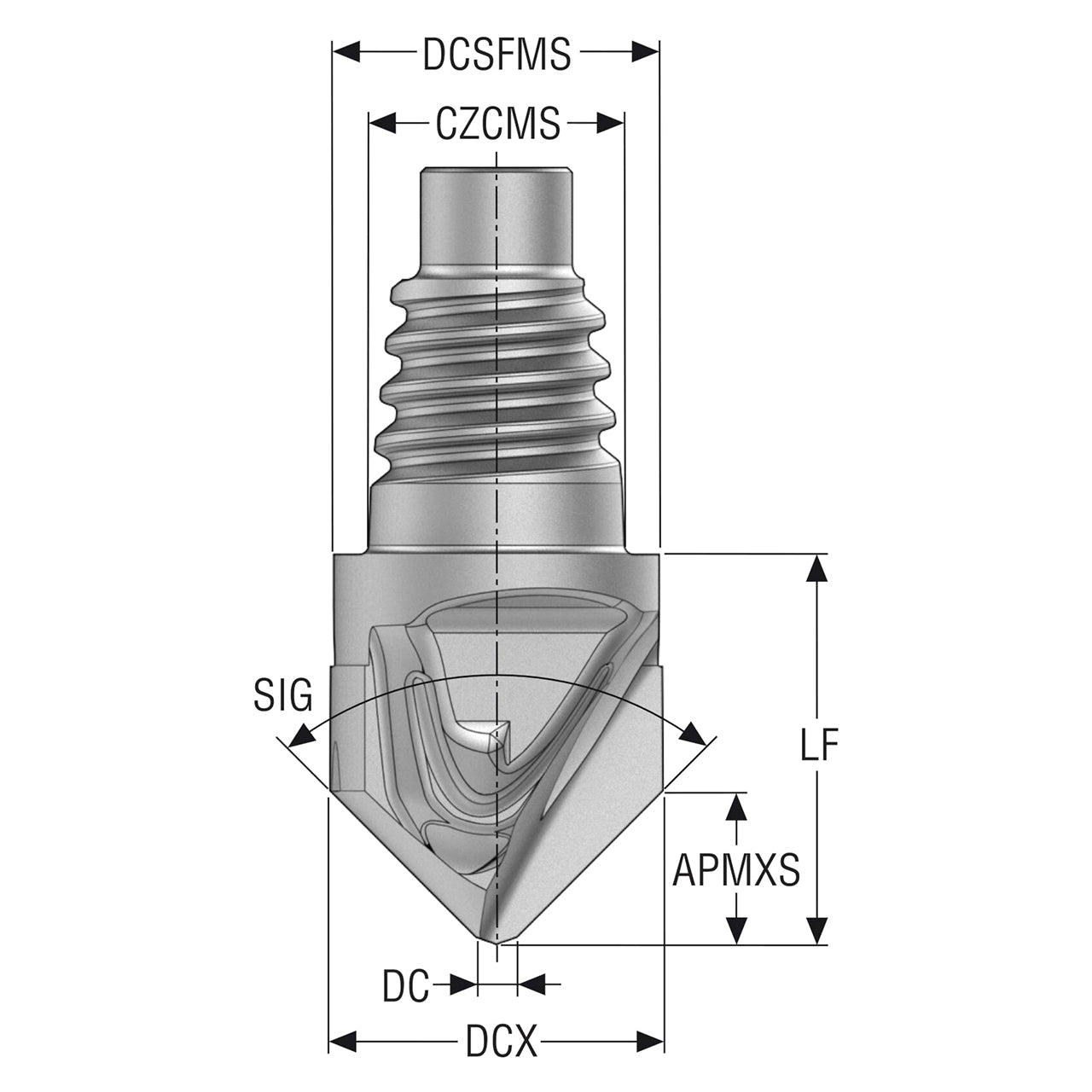

| Manufacturer Part Number | 10138014 |
| Cutting Diameter (mm) | 1.50mm |
| Cutting Diameter 1 (mm) | 1.50mm |
| Contact Surface Diameter Machine Side (mm) | 9.70mm |
| Lower Cutting Diameter Tolerance (mm) | -0.3 |
| Maximum Cutting Diameter (mm) | 10.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 2.93mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 1.95mm |
| Cutting Edge Effective Length (mm) | 4.23mm |
| Functional Length (mm) | 11.80mm |
| Head Length (mm) | 8.40mm |
| Overall Length (mm) | 22.90mm |
| Maximum Depth of Cut (mm) | 4.23mm |
| Theoretical Cutting Edge Length (mm) | 8.40mm |
| Radial Runout (mm) | 0.02mm |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 2 |
| Cutting Geometry Type | XVC509 |
| Cutting Geometry Type Technical | XVC509 |
| Connection Size Code | E10 |
| Connection Size Code Machine Side | E10 |
| Face Cutting Edge Count | 2 |
| Flute Helix Angle (Degree) | 10 Degree |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | 10 Degree |
| Rake Radial Angle (Degree) | 10 Degree |
| Axial Rake Angle (Degree) | 7 Degree |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 45 Degree |
| Length Variant Cataloque | 1 |
| Number of Flute | 2 |
| Pheripheral Cutting Edge Count | 2 |
| Axial Runout (mm) | 0.02mm |
| Point Angle (Degree) | 90 Degree |
| Coating | SIRON-A |

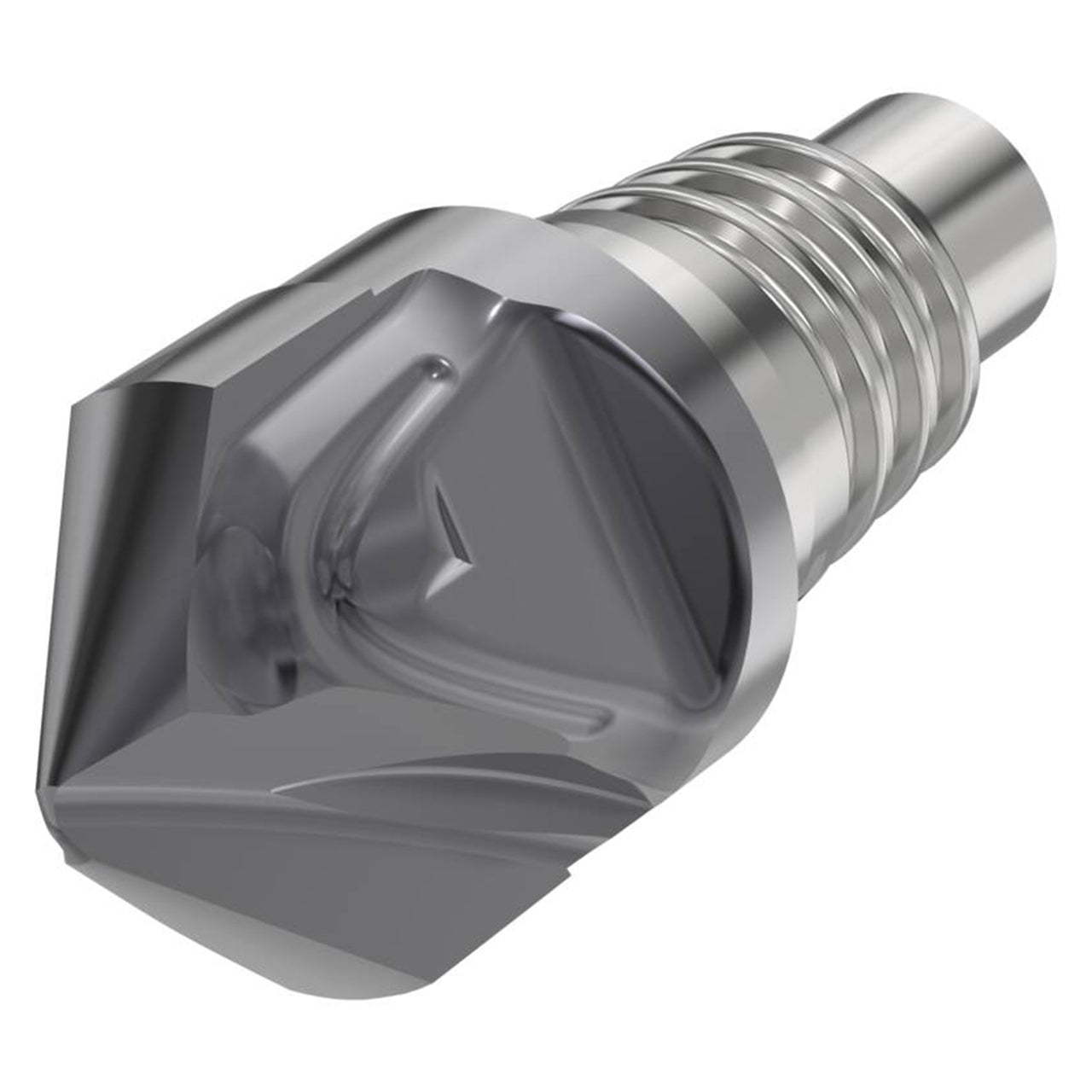

| Product Type | Exchangeable Head Mill |
