Product Specifications

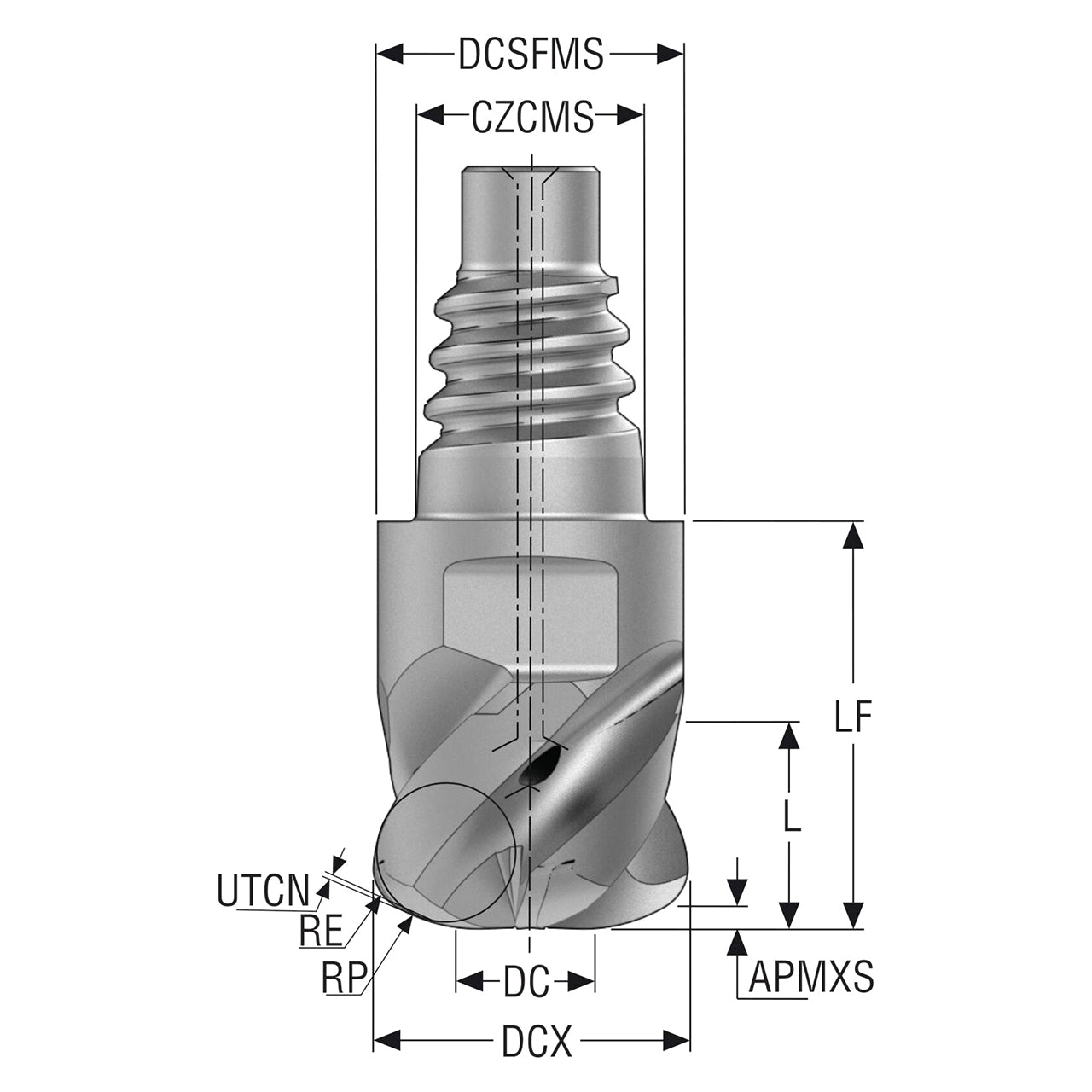

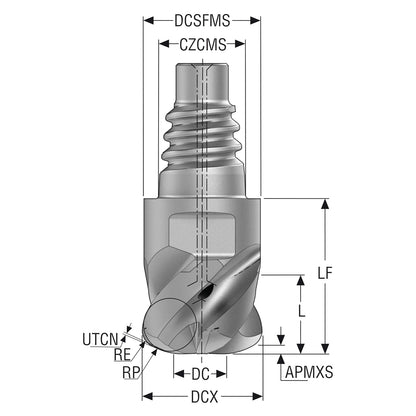

| Manufacturer Part Number | 10137974 |
| Cutting Diameter (Decimal Inch) | 0.134" |
| Cutting Diameter (mm) | 3.40mm |
| Cutting Diameter 1 (Decimal Inch) | 0.134" |
| Cutting Diameter 1 (mm) | 3.40mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.364" |
| Contact Surface Diameter Machine Side (mm) | 9.25mm |
| Lower Cutting Diameter Tolerance (Decimal Inch) | -0.002 |
| Lower Cutting Diameter Tolerance (mm) | -0.05 |
| Upper Cutting Diameter Tolerance (Decimal Inch) | 0.002 |
| Maximum Cutting Diameter (Decimal Inch) | 0.375" |
| Maximum Cutting Diameter (mm) | 9.53mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.624" |
| Maximum Helical Interpolation Hole Diameter (mm) | 15.86mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.488" |
| Minimum Helical Interpolation Hole Diameter (mm) | 12.38mm |
| Corner Radius (Decimal Inch) | 0.060" |
| Corner Radius (mm) | 1.52mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.236" |
| Cutting Edge Effective Length (mm) | 6.00mm |
| Functional Length (Decimal Inch) | 0.488" |
| Functional Length (mm) | 12.40mm |
| Head Length (Decimal Inch) | 0.315" |
| Head Length (mm) | 8.00mm |
| Overall Length (Decimal Inch) | 0.925" |
| Overall Length (mm) | 23.50mm |
| Maximum Depth of Cut (mm) | 6.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.236" |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.236" |
| Theoretical Cutting Edge Length (mm) | 6.00mm |
| Radial Runout (mm) | 0.02mm |
| Programming Radius (Decimal Inch) | 0.076" |
| Programming Radius (mm) | 1.94mm |
| Uncut Thickness (Decimal Inch) | 0.0076 |
| Uncut Thickness (mm) | 0.194 |
| Curved Cutting Edge Radius (mm) | 4.60mm |
| Cutting Edge Count | 4 |
| Cutting Geometry Type | XHF580 |
| Cutting Geometry Type Technical | XHF580 |
| Coolant Supply Property | 1 |
| Connection Size Code | E10 |
| Connection Size Code Machine Side | E10 |
| Face Cutting Edge Count | 4 |
| Flute Helix Angle (Degree) | 50 Degree |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | 10.5 Degree |
| Rake Radial Angle (Degree) | 10.5 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Length Variant Cataloque | 1 |
| Number of Flute | 4 |
| Pheripheral Cutting Edge Count | 4 |
| Maximum Ramping Angle (Degree) | 1.5 Degree |
| Axial Runout (mm) | 0.02mm |
| Coating | SIRON-A |

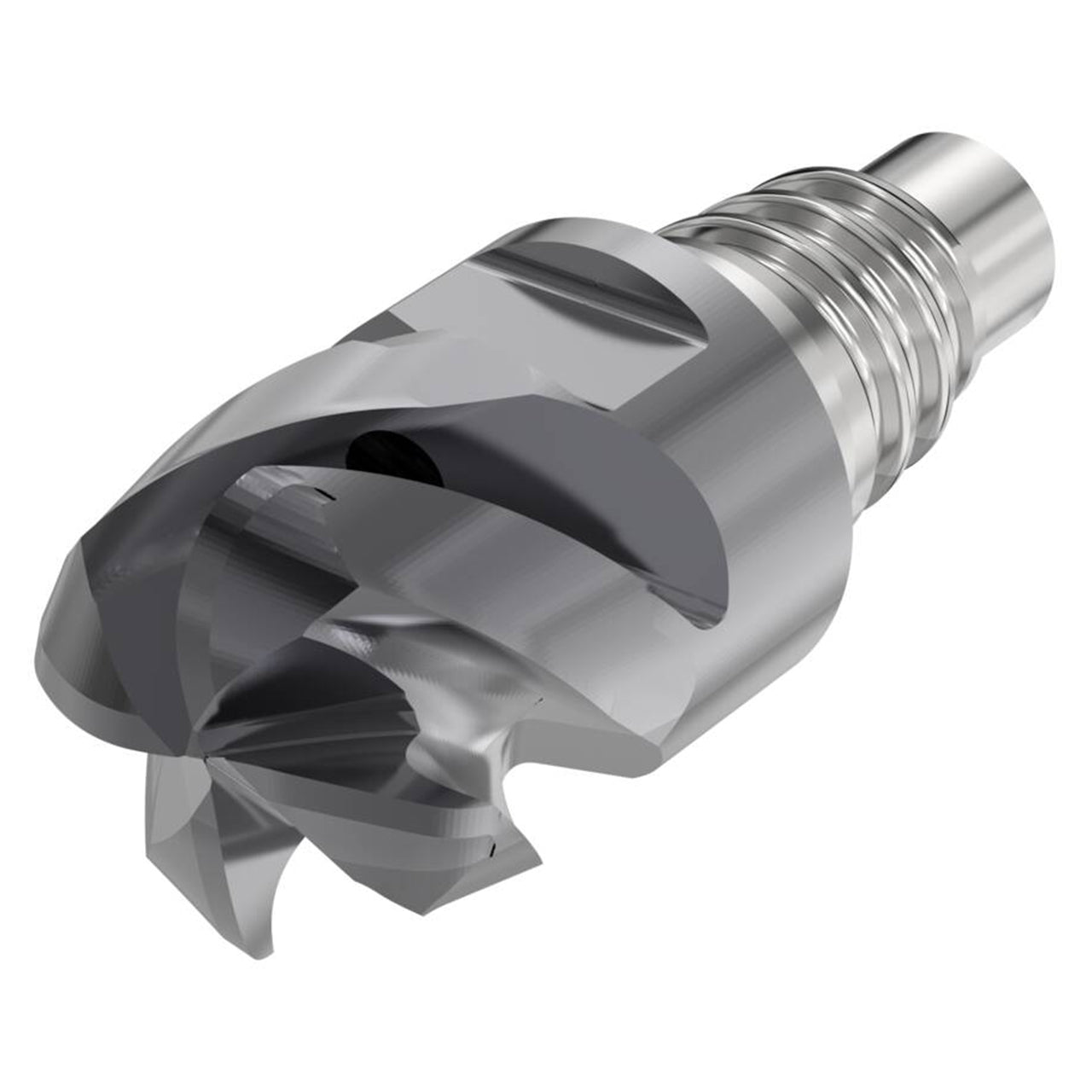

| Product Type | Exchangeable Head Mill |
