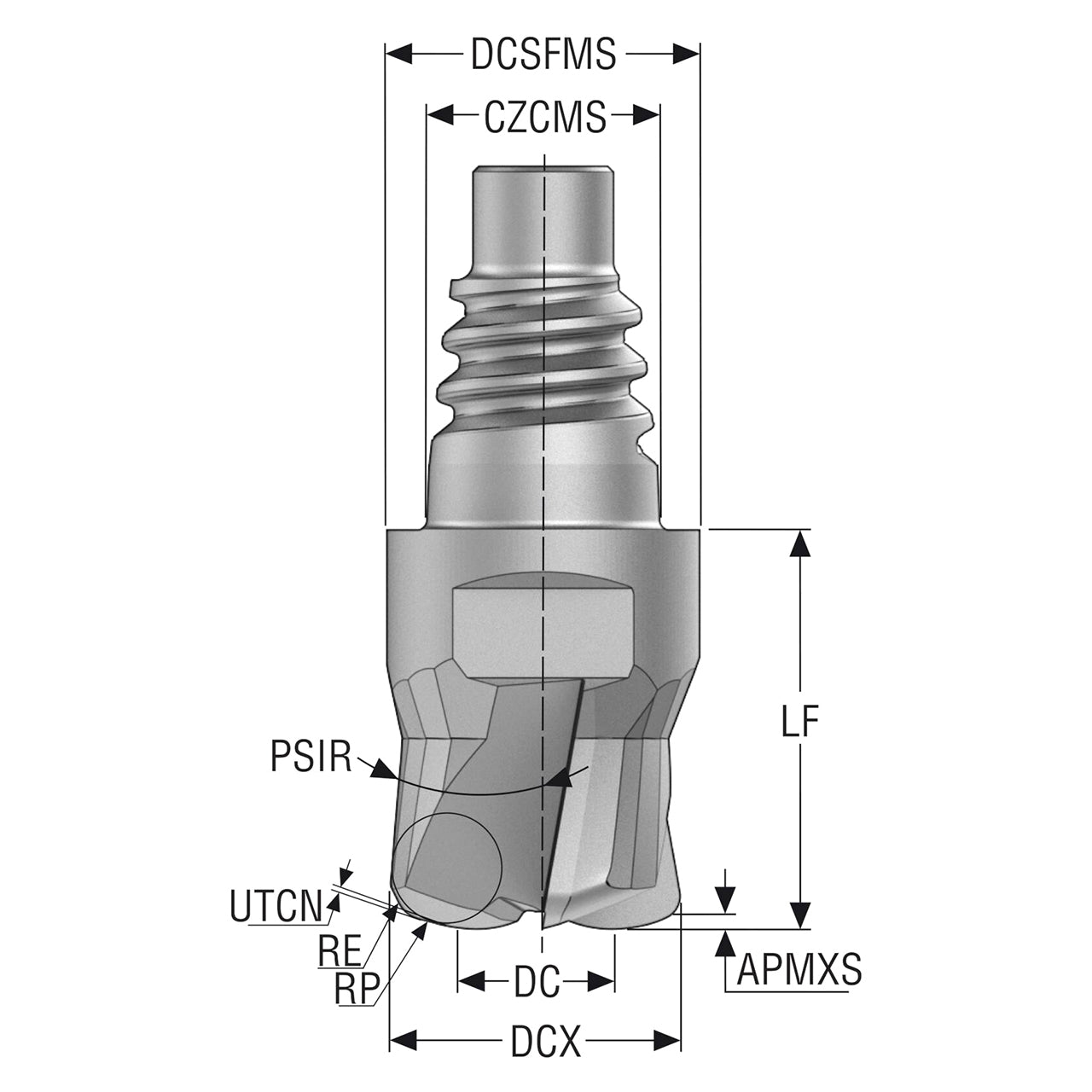

Product Specifications
| Manufacturer Part Number | 10137960 |
| Cutting Diameter (Decimal Inch) | 0.188" |
| Cutting Diameter (mm) | 4.76mm |
| Cutting Diameter 1 (Decimal Inch) | 0.188" |
| Cutting Diameter 1 (mm) | 4.76mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.364" |
| Contact Surface Diameter Machine Side (mm) | 9.25mm |
| Lower Cutting Diameter Tolerance (Decimal Inch) | -0.0016 |
| Lower Cutting Diameter Tolerance (mm) | -0.04 |
| Upper Cutting Diameter Tolerance (Decimal Inch) | -0.0008 |
| Maximum Cutting Diameter (Decimal Inch) | 0.375" |
| Maximum Cutting Diameter (mm) | 9.53mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.691" |
| Maximum Helical Interpolation Hole Diameter (mm) | 17.56mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.488" |
| Minimum Helical Interpolation Hole Diameter (mm) | 12.38mm |
| Corner Radius (Decimal Inch) | 0.028" |
| Corner Radius (mm) | 0.71mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.206" |
| Cutting Edge Effective Length (mm) | 5.24mm |
| Functional Length (Decimal Inch) | 0.484" |
| Functional Length (mm) | 12.30mm |
| Head Length (Decimal Inch) | 0.236" |
| Head Length (mm) | 6.00mm |
| Overall Length (Decimal Inch) | 0.925" |
| Overall Length (mm) | 23.50mm |
| Maximum Depth of Cut (mm) | 5.24mm |
| Maximum Depth of Cut (Decimal Inch) | 0.206" |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.206" |
| Theoretical Cutting Edge Length (mm) | 5.24mm |
| Radial Runout (mm) | 0.01mm |
| Programming Radius (Decimal Inch) | 0.043" |
| Programming Radius (mm) | 1.09mm |
| Uncut Thickness (Decimal Inch) | 0.0091 |
| Uncut Thickness (mm) | 0.23 |
| Curved Cutting Edge Radius (mm) | 4.54mm |
| Cutting Edge Count | 3 |
| Cutting Geometry Type | XHF780 |
| Cutting Geometry Type Technical | XHF780 |
| Connection Size Code | E10 |
| Connection Size Code Machine Side | E10 |
| Face Cutting Edge Count | 3 |
| Flute Helix Hand | Right Hand |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Length Variant Cataloque | 1 |
| Number of Flute | 3 |
| Pheripheral Cutting Edge Count | 3 |
| Maximum Ramping Angle (Degree) | 1.5 Degree |
| Axial Runout (mm) | 0.01mm |
| Coating | HXT |

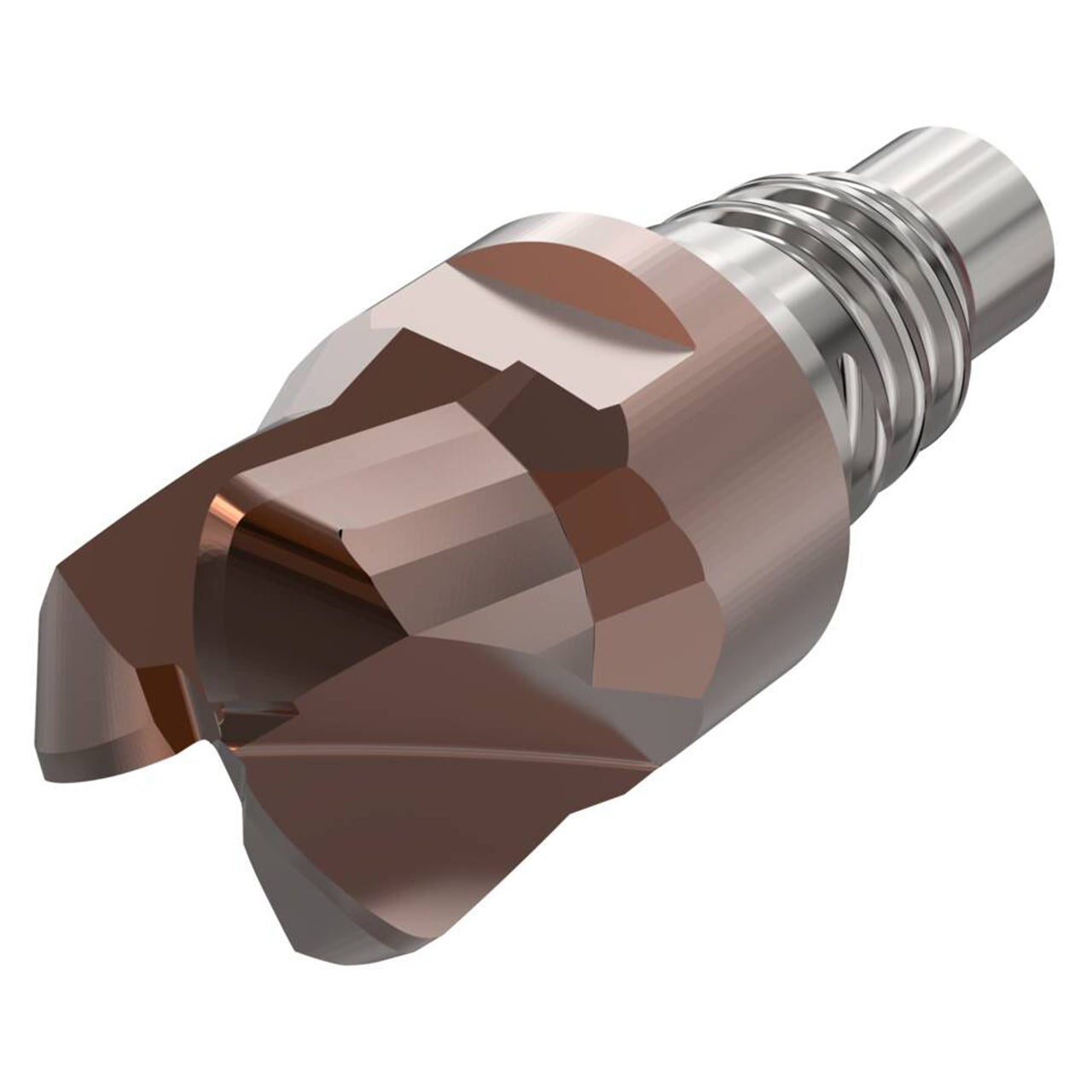

| Product Type | Exchangeable Head Mill |
