Product Specifications

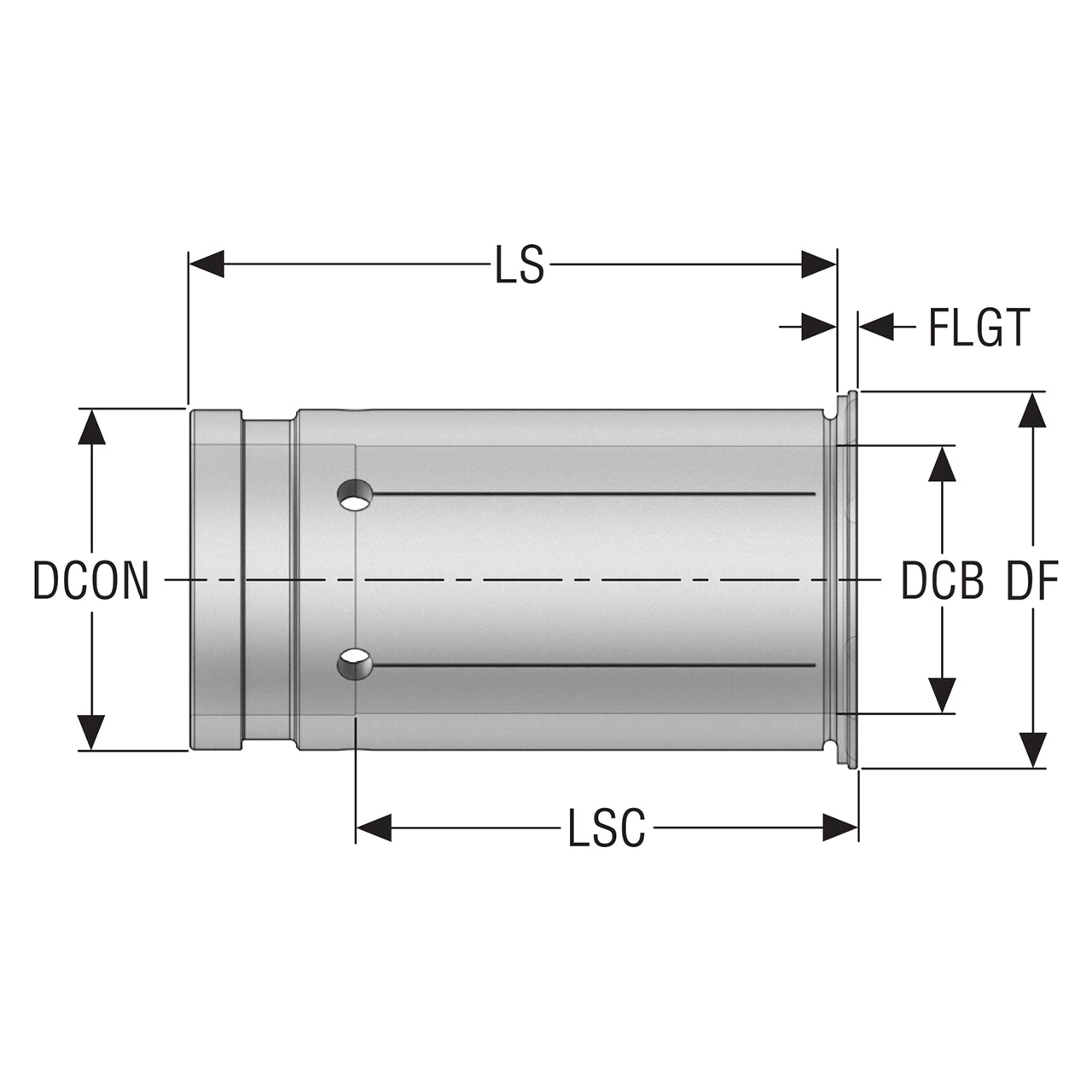

| Manufacturer Part Number | 10137405 |
| Connection Bore Diameter (Decimal Inch) | 0.813" |
| Connection Bore Diameter (mm) | 20.64mm |
| Connection Diameter (Decimal Inch) | 1.260" |
| Connection Diameter (mm) | 32.00mm |
| Flange Diameter (Decimal Inch) | 1.398" |
| Flange Diameter (mm) | 35.50mm |
| Shank Length (Decimal Inch) | 2.382" |
| Shank Length (mm) | 60.50mm |
| Clamping Length (Decimal Inch) | 1.600" |
| Clamping Length (mm) | 40.63mm |
| Flange Thickness (Decimal Inch) | 0.079" |
| Flange Thickness (mm) | 2.00mm |

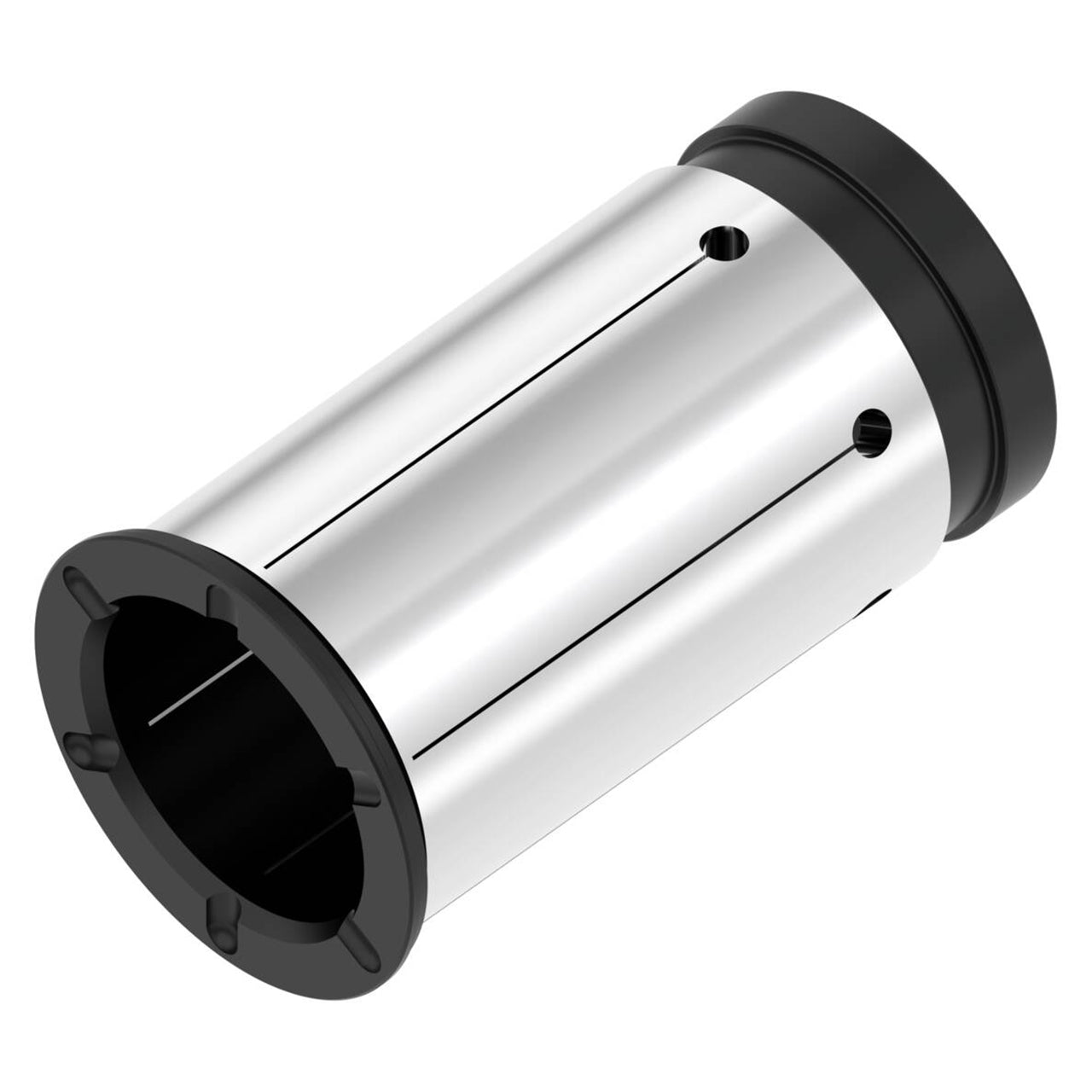

| Product Type | Hydraulic Chuck Sleeve |
