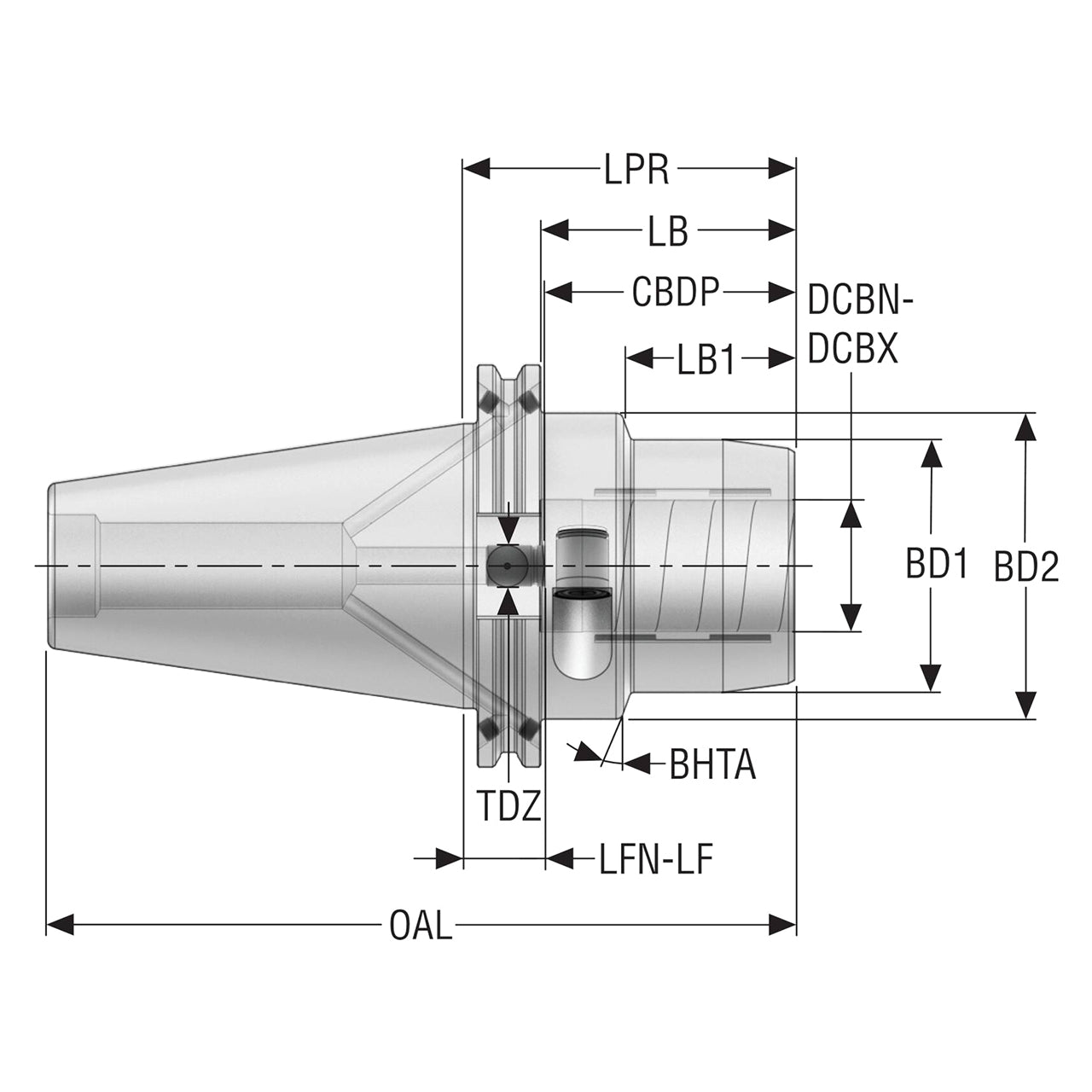

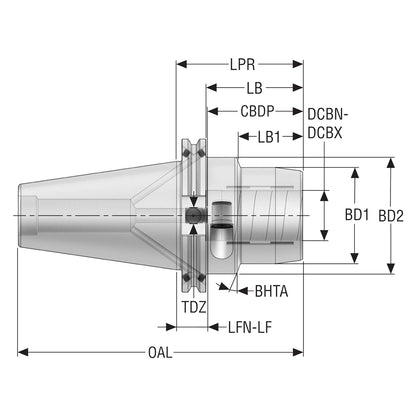

Product Specifications
| Manufacturer Part Number | 10137295 |
| Connection Bore Diameter (Decimal Inch) | 0.984" |
| Connection Bore Diameter (mm) | 25.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.984" |
| Minimum Connection Bore Diameter (mm) | 25.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.984" |
| Maximum Connection Bore Diameter (mm) | 25.00mm |
| Body Diameter 1 (Decimal Inch) | 1.890" |
| Body Diameter 1 (mm) | 48.00mm |
| Body Diameter 2 (Decimal Inch) | 2.677" |
| Body Diameter 2 (mm) | 68.00mm |
| Thread Diameter Size | M10x1 |
| Connection Bore Depth (Decimal Inch) | 0 |
| Connection Bore Depth (mm) | 58.50mm |
| Body Length (Decimal Inch) | 2.439" |
| Body Length (mm) | 61.95mm |
| Body Length 1 (Decimal Inch) | 1.417" |
| Body Length 1 (mm) | 36.00mm |
| Functional Length (Decimal Inch) | 1.339" |
| Functional Length (mm) | 34.00mm |
| Minimum Functional Length (Decimal Inch) | 0.945" |
| Minimum Functional Length (mm) | 24.00mm |
| Protruding Length (Decimal Inch) | 3.189" |
| Protruding Length (mm) | 81.00mm |
| Overall Length (Decimal Inch) | 7.189" |
| Overall Length (mm) | 182.60mm |
| Body Half Taper Angle Degree) | 20 Degree |
| Data Chip Provision | 1 |
| Machine Side Group | CAT & CAT Taper-Face |

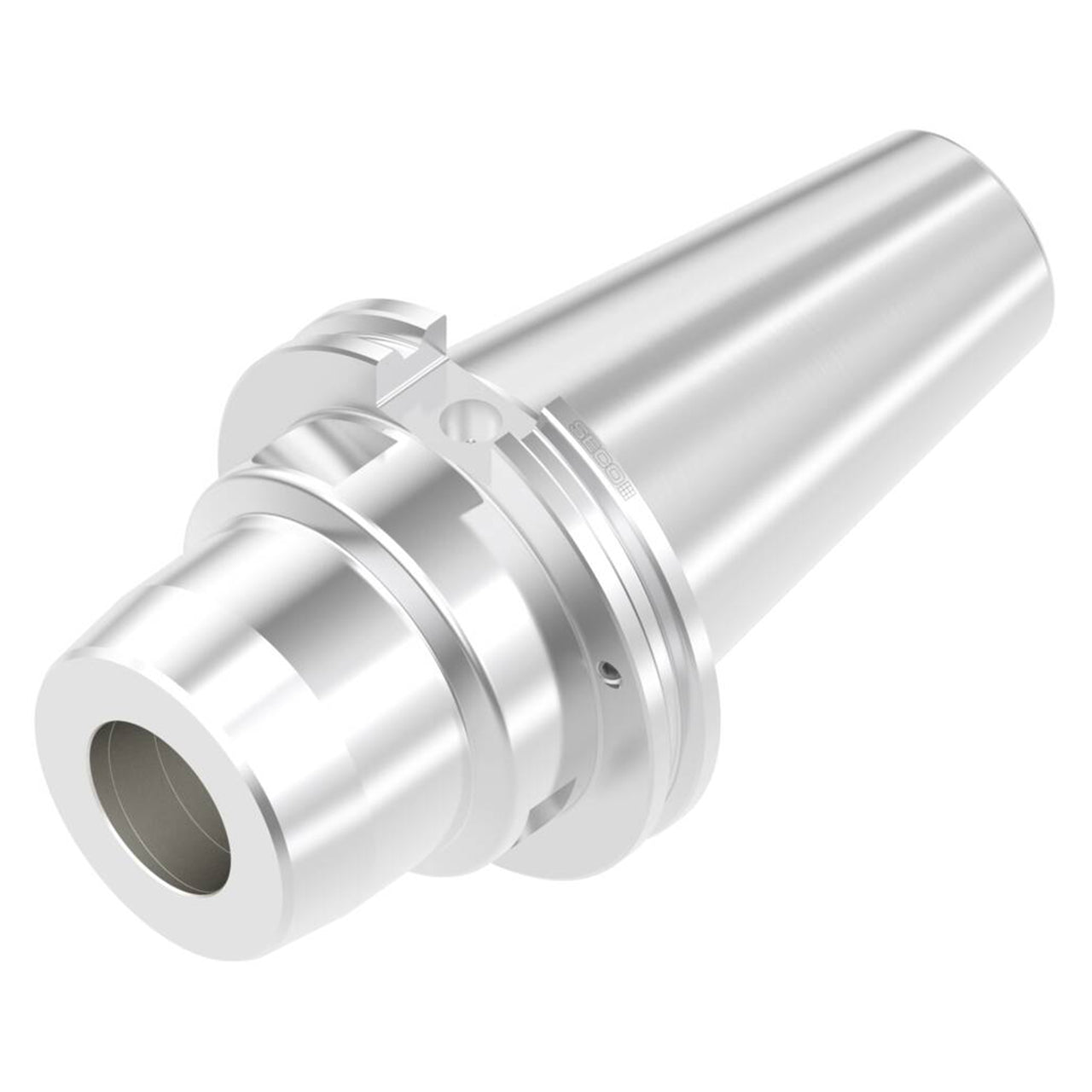

| Product Type | Hydraulic Chuck |
