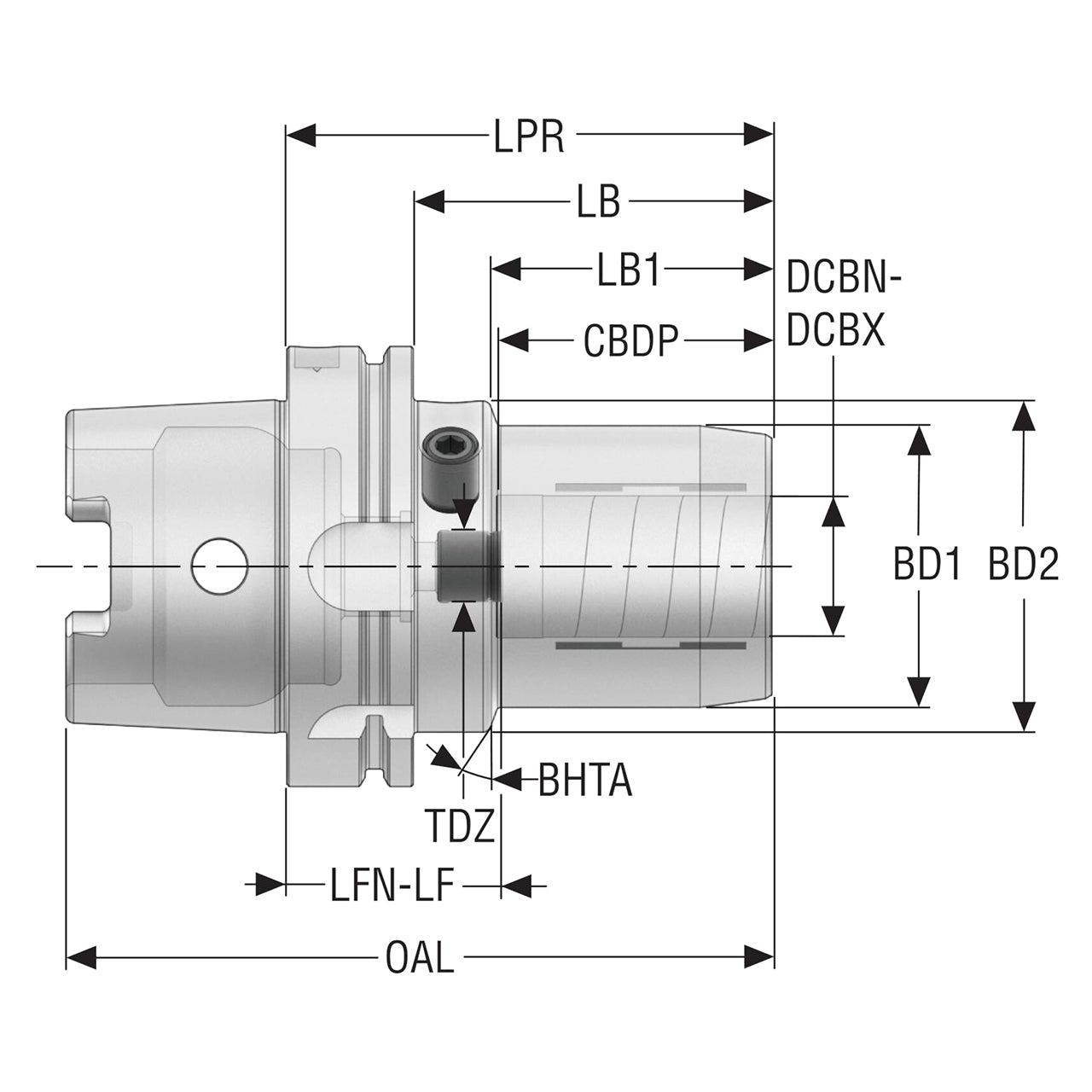

Product Specifications
| Manufacturer Part Number | 10137271 |
| Connection Bore Diameter (Decimal Inch) | 0.630" |
| Connection Bore Diameter (mm) | 16.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.630" |
| Minimum Connection Bore Diameter (mm) | 16.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.630" |
| Maximum Connection Bore Diameter (mm) | 16.00mm |
| Body Diameter 1 (Decimal Inch) | 1.496" |
| Body Diameter 1 (mm) | 38.00mm |
| Body Diameter 2 (Decimal Inch) | 1.978" |
| Body Diameter 2 (mm) | 50.25mm |
| Thread Diameter Size | M12x1 |
| Connection Bore Depth (Decimal Inch) | 0 |
| Connection Bore Depth (mm) | 50.50mm |
| Body Length (Decimal Inch) | 2.797" |
| Body Length (mm) | 71.05mm |
| Body Length 1 (Decimal Inch) | 2.087" |
| Body Length 1 (mm) | 53.00mm |
| Functional Length (Decimal Inch) | 2.402" |
| Functional Length (mm) | 61.00mm |
| Minimum Functional Length (Decimal Inch) | 2.008" |
| Minimum Functional Length (mm) | 51.00mm |
| Protruding Length (Decimal Inch) | 3.937" |
| Protruding Length (mm) | 100.00mm |
| Overall Length (Decimal Inch) | 5.902" |
| Overall Length (mm) | 149.90mm |
| Body Half Taper Angle Degree) | 20 Degree |
| Data Chip Provision | 1 |
| Machine Side Group | HSK-A & HSK-T/A |

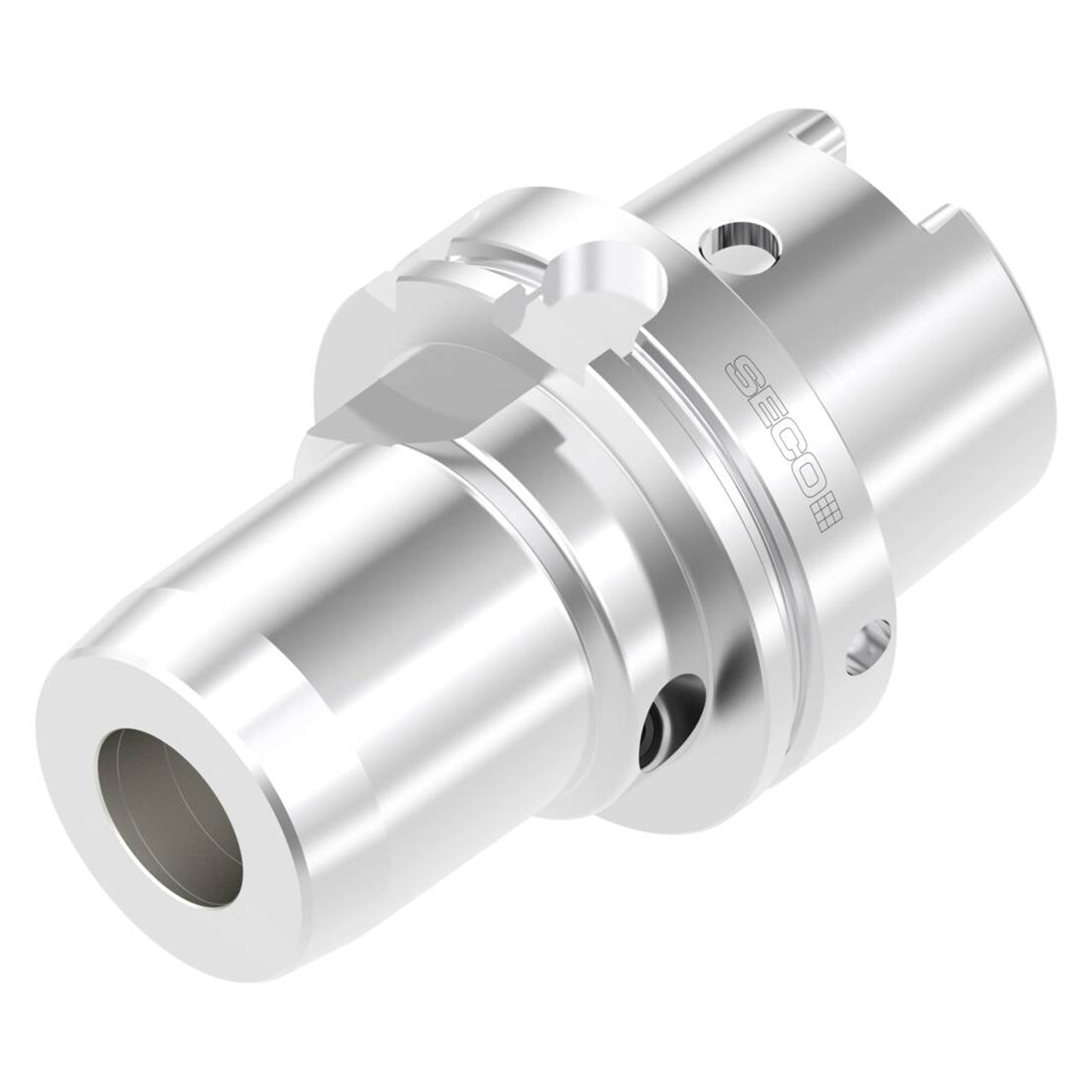

| Product Type | Hydraulic Chuck |
