Product Specifications

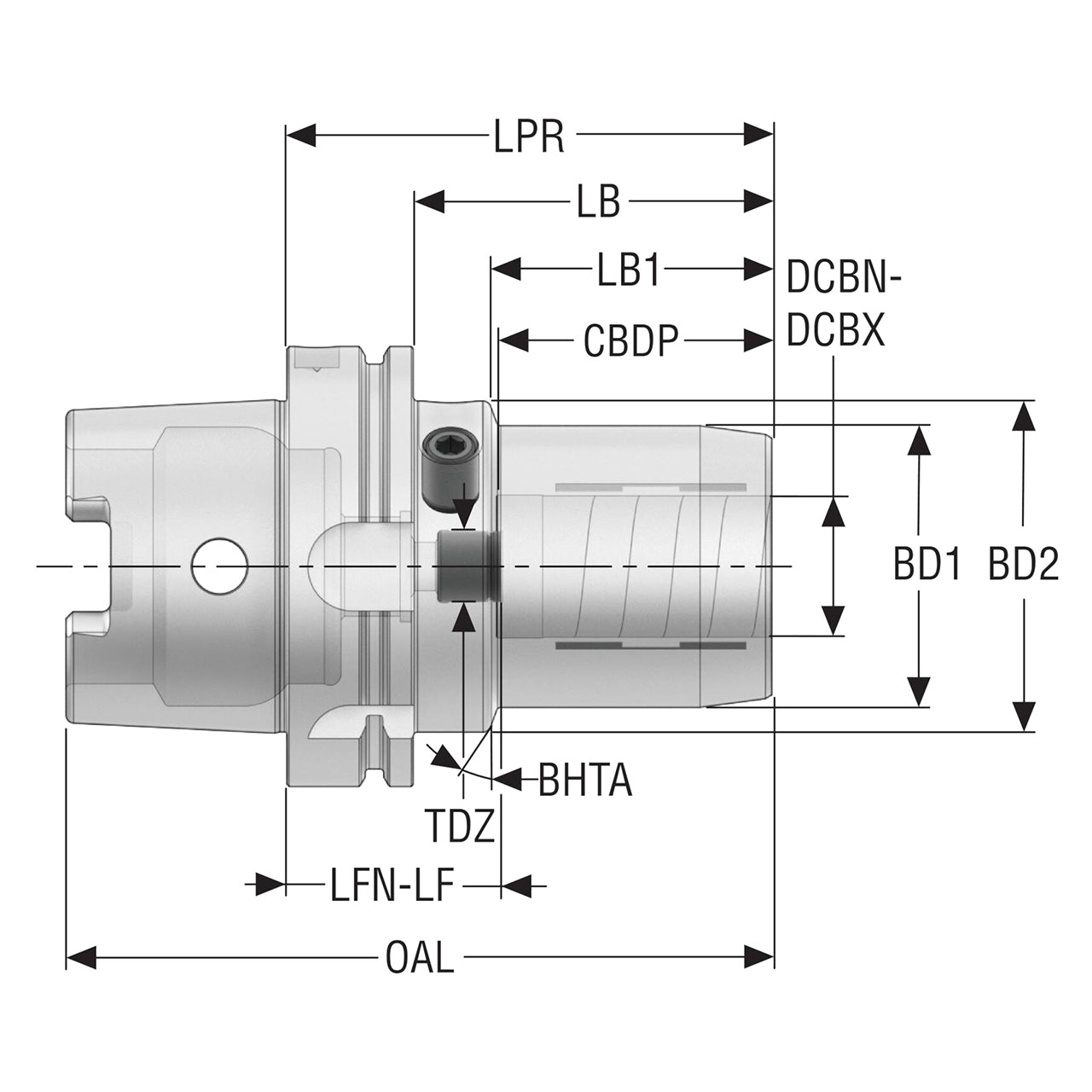

| Manufacturer Part Number | 10137269 |
| Connection Bore Diameter (Decimal Inch) | 1.260" |
| Connection Bore Diameter (mm) | 32.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 1.260" |
| Minimum Connection Bore Diameter (mm) | 32.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 1.260" |
| Maximum Connection Bore Diameter (mm) | 32.00mm |
| Body Diameter 1 (Decimal Inch) | 2.441" |
| Body Diameter 1 (mm) | 62.00mm |
| Body Diameter 2 (Decimal Inch) | 1.969" |
| Body Diameter 2 (mm) | 50.00mm |
| Thread Diameter Size | M16x1 |
| Connection Bore Depth (Decimal Inch) | 0 |
| Connection Bore Depth (mm) | 62.50mm |
| Body Length (Decimal Inch) | 3.900" |
| Body Length (mm) | 99.05mm |
| Body Length 1 (Decimal Inch) | 3.260" |
| Body Length 1 (mm) | 82.80mm |
| Functional Length (Decimal Inch) | 2.913" |
| Functional Length (mm) | 74.00mm |
| Minimum Functional Length (Decimal Inch) | 2.520" |
| Minimum Functional Length (mm) | 64.00mm |
| Protruding Length (Decimal Inch) | 4.921" |
| Protruding Length (mm) | 125.00mm |
| Overall Length (Decimal Inch) | 6.177" |
| Overall Length (mm) | 156.90mm |
| Data Chip Provision | 1 |
| Machine Side Group | HSK-A & HSK-T/A |

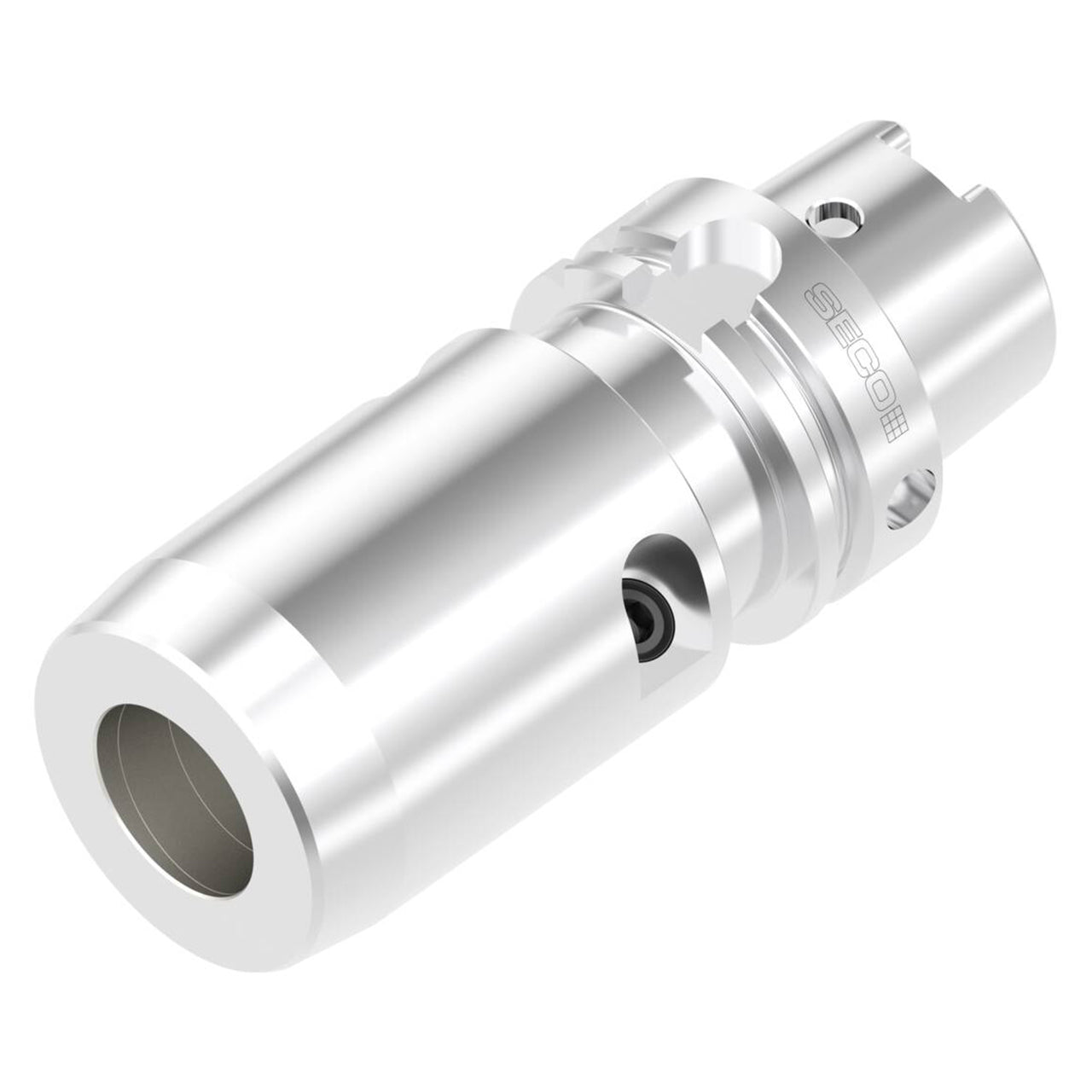

| Product Type | Hydraulic Chuck |
