Product Specifications

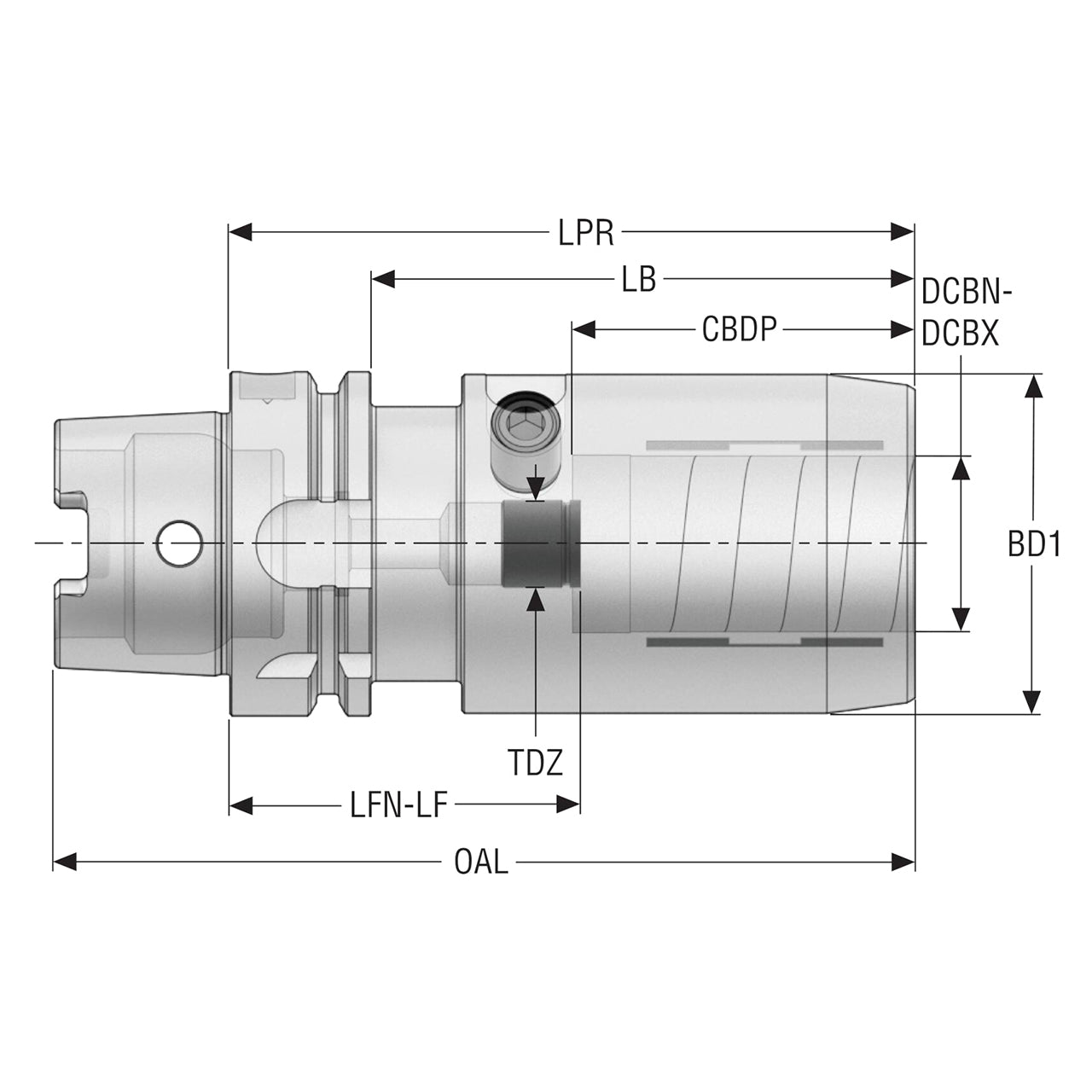

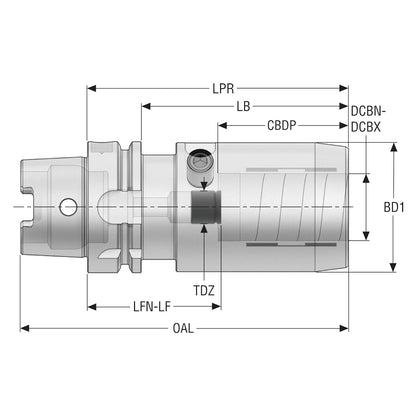

| Manufacturer Part Number | 10137261 |
| Connection Bore Diameter (Decimal Inch) | 0.236" |
| Connection Bore Diameter (mm) | 6.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.236" |
| Minimum Connection Bore Diameter (mm) | 6.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.236" |
| Maximum Connection Bore Diameter (mm) | 6.00mm |
| Body Diameter 1 (Decimal Inch) | 1.024" |
| Body Diameter 1 (mm) | 26.00mm |
| Body Diameter 2 (Decimal Inch) | 1.969" |
| Body Diameter 2 (mm) | 50.00mm |
| Thread Diameter Size | M5 |
| Connection Bore Depth (Decimal Inch) | 0 |
| Connection Bore Depth (mm) | 38.50mm |
| Body Length (Decimal Inch) | 1.734" |
| Body Length (mm) | 44.05mm |
| Body Length 1 (Decimal Inch) | 0.945" |
| Body Length 1 (mm) | 24.00mm |
| Functional Length (Decimal Inch) | 1.693" |
| Functional Length (mm) | 43.00mm |
| Minimum Functional Length (Decimal Inch) | 1.299" |
| Minimum Functional Length (mm) | 33.00mm |
| Protruding Length (Decimal Inch) | 2.756" |
| Protruding Length (mm) | 70.00mm |
| Overall Length (Decimal Inch) | 4.012" |
| Overall Length (mm) | 101.90mm |
| Body Half Taper Angle Degree) | 20 Degree |
| Data Chip Provision | 1 |
| Machine Side Group | HSK-A & HSK-T/A |

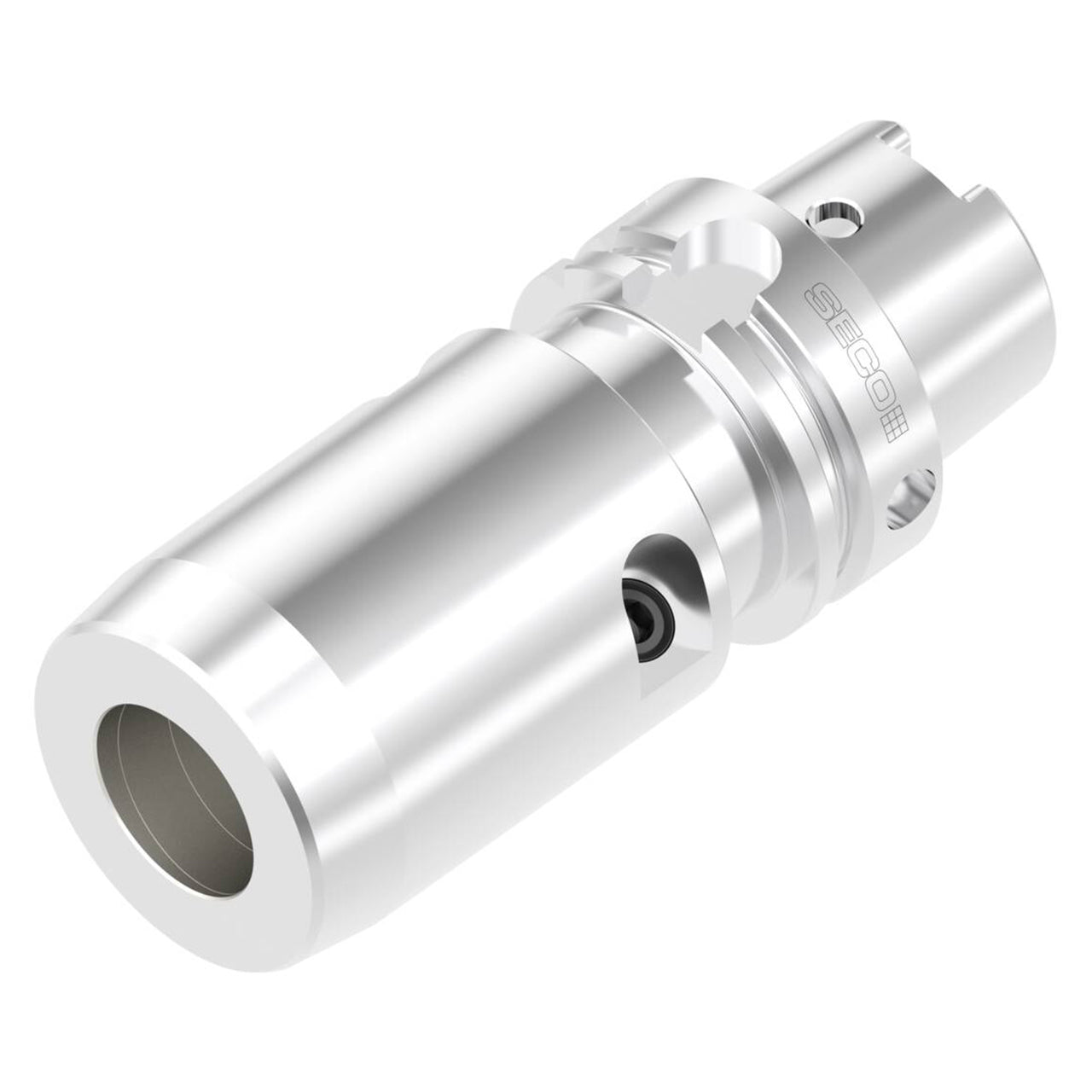

| Product Type | Hydraulic Chuck |
