Product Specifications

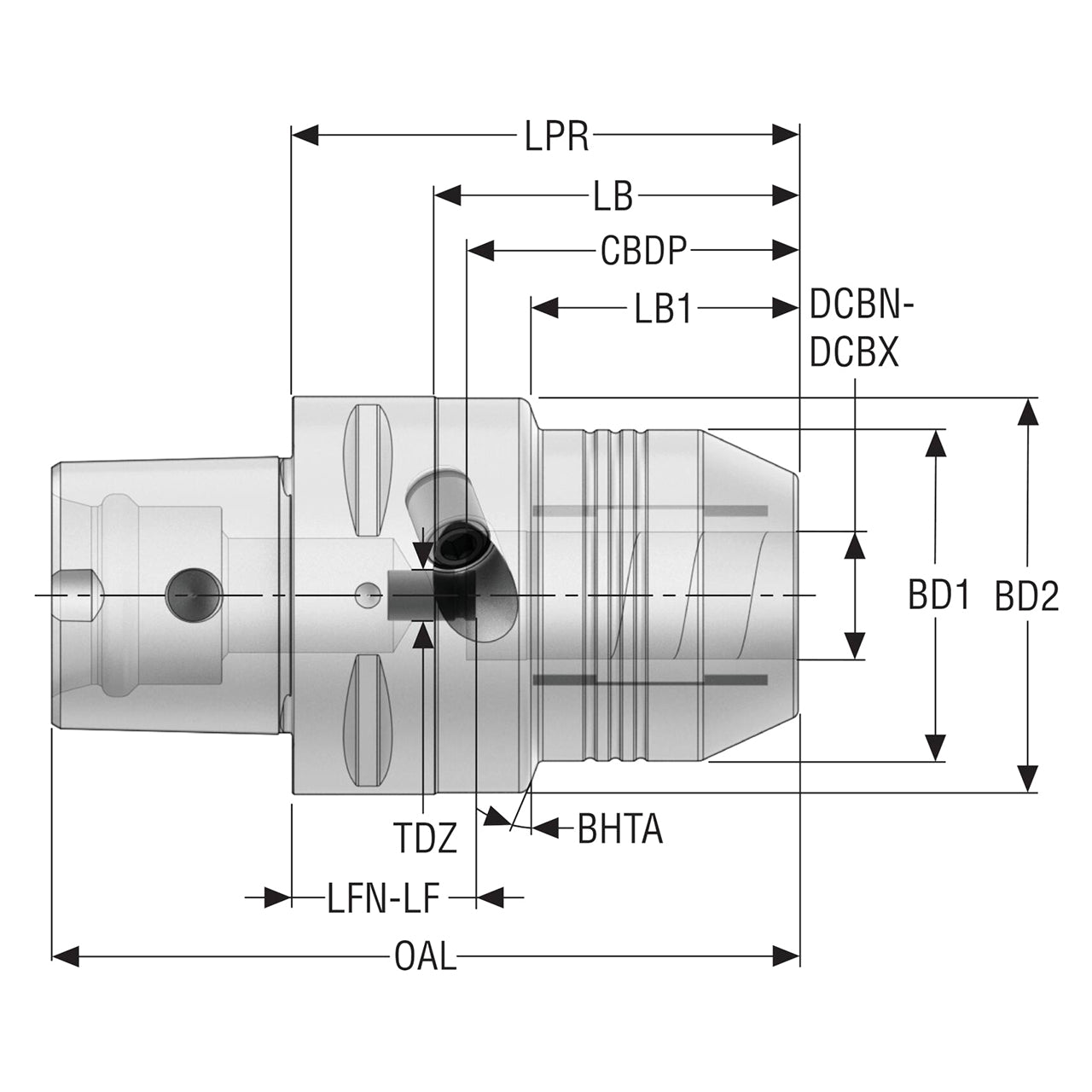

| Manufacturer Part Number | 10137147 |
| Connection Bore Diameter (Decimal Inch) | 0.787" |
| Connection Bore Diameter (mm) | 20.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Minimum Connection Bore Diameter (mm) | 20.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Maximum Connection Bore Diameter (mm) | 20.00mm |
| Body Diameter 1 (Decimal Inch) | 2.067" |
| Body Diameter 1 (mm) | 52.50mm |
| Body Diameter 2 (Decimal Inch) | 2.461" |
| Body Diameter 2 (mm) | 62.50mm |
| Thread Diameter Size | M8x1 |
| Connection Bore Depth (Decimal Inch) | 0 |
| Connection Bore Depth (mm) | 52.50mm |
| Body Length (Decimal Inch) | 2.260" |
| Body Length (mm) | 57.40mm |
| Body Length 1 (Decimal Inch) | 1.614" |
| Body Length 1 (mm) | 41.00mm |
| Functional Length (Decimal Inch) | 1.535" |
| Functional Length (mm) | 39.00mm |
| Minimum Functional Length (Decimal Inch) | 1.142" |
| Minimum Functional Length (mm) | 29.00mm |
| Protruding Length (Decimal Inch) | 3.150" |
| Protruding Length (mm) | 80.00mm |
| Overall Length (Decimal Inch) | 4.646" |
| Overall Length (mm) | 118.00mm |
| Body Half Taper Angle Degree) | 20 Degree |
| Machine Side Group | Capto |

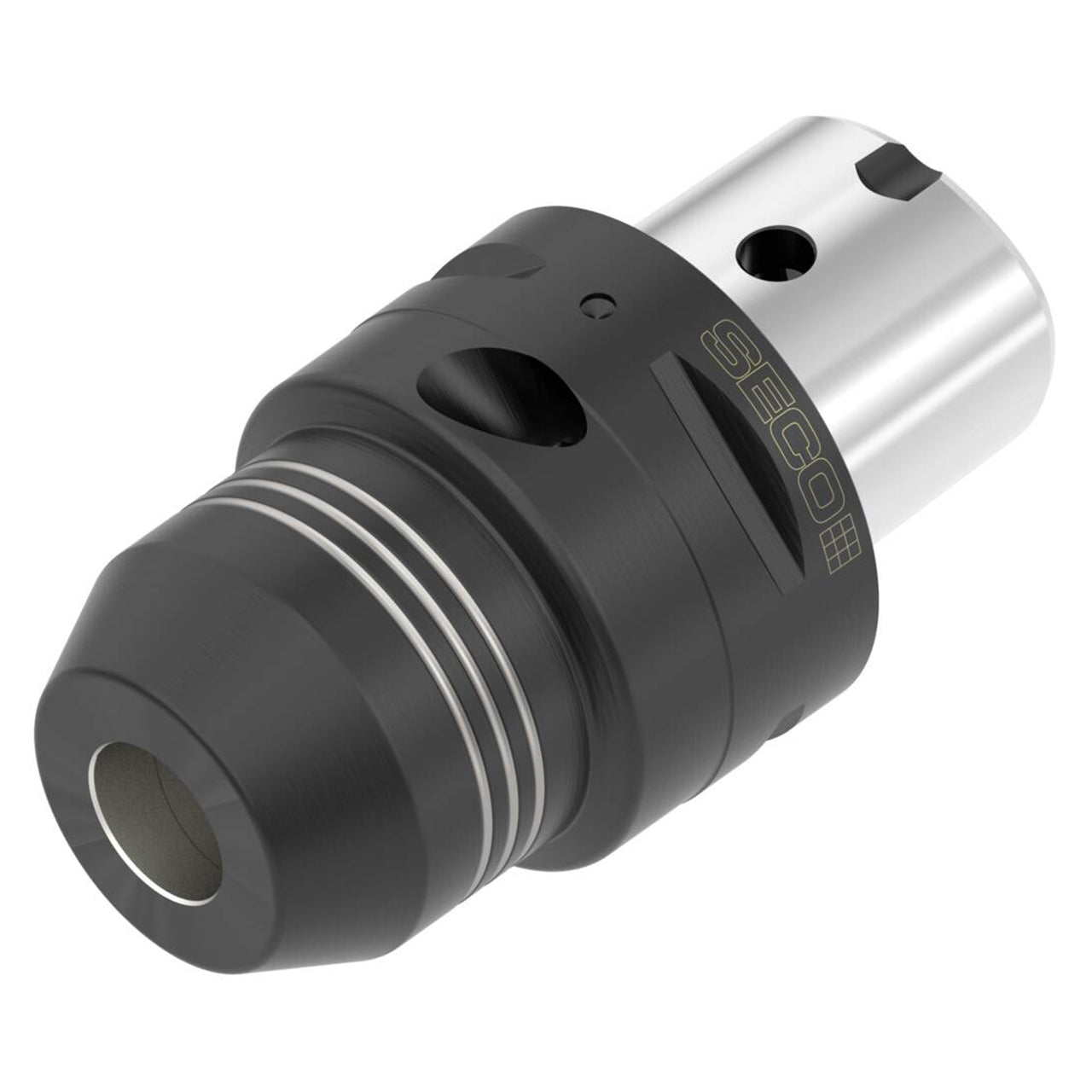

| Product Type | Hydraulic Chuck |
