Product Specifications

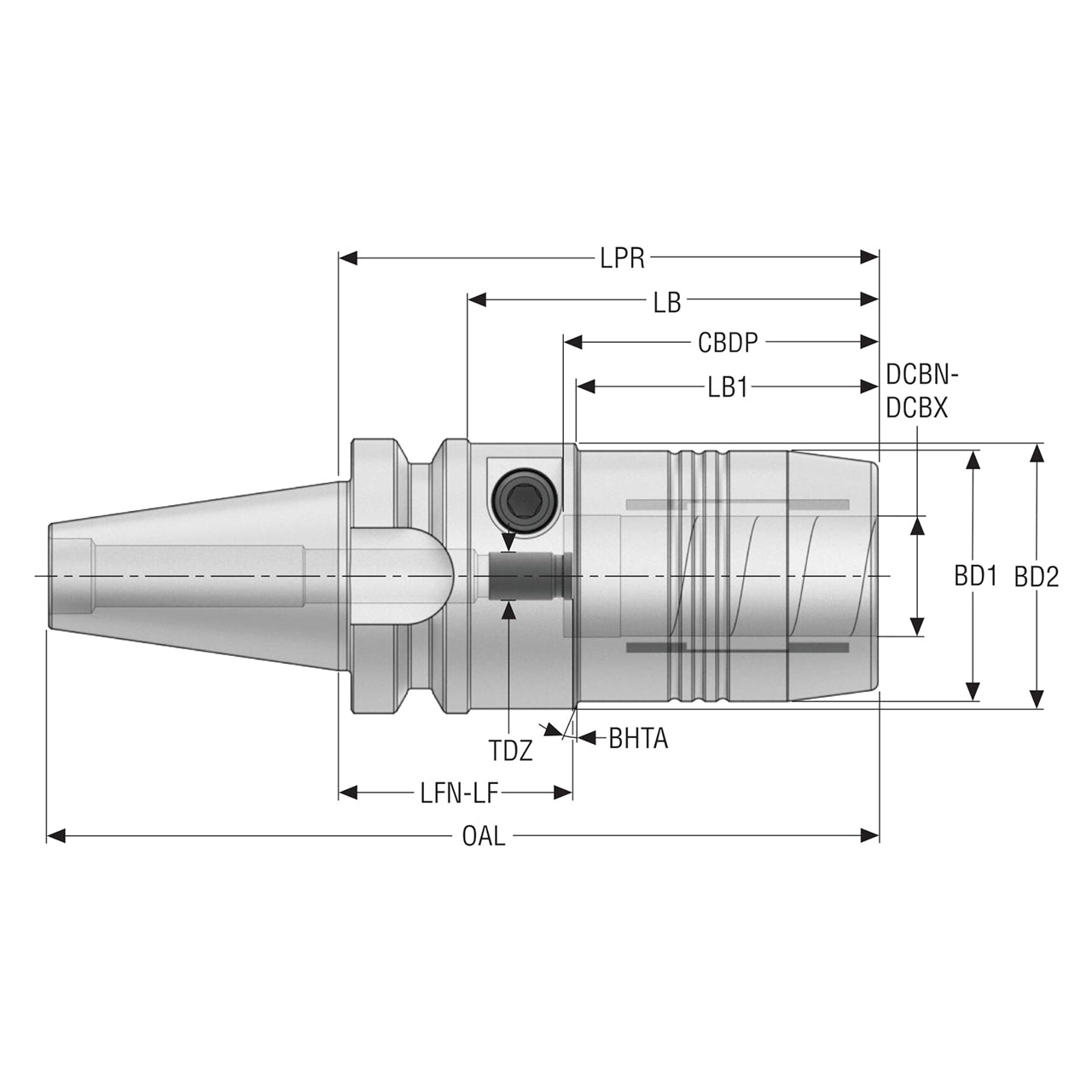

| Manufacturer Part Number | 10137136 |
| Connection Bore Diameter (Decimal Inch) | 0.472" |
| Connection Bore Diameter (mm) | 12.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.472" |
| Minimum Connection Bore Diameter (mm) | 12.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.472" |
| Maximum Connection Bore Diameter (mm) | 12.00mm |
| Body Diameter 1 (Decimal Inch) | 1.654" |
| Body Diameter 1 (mm) | 42.00mm |
| Body Diameter 2 (Decimal Inch) | 1.752" |
| Body Diameter 2 (mm) | 44.50mm |
| Thread Diameter Size | M8x1 |
| Connection Bore Depth (Decimal Inch) | 0 |
| Connection Bore Depth (mm) | 47.50mm |
| Body Length (Decimal Inch) | 1.850" |
| Body Length (mm) | 47.00mm |
| Body Length 1 (Decimal Inch) | 1.260" |
| Body Length 1 (mm) | 32.00mm |
| Functional Length (Decimal Inch) | 1.299" |
| Functional Length (mm) | 33.00mm |
| Minimum Functional Length (Decimal Inch) | 0.906" |
| Minimum Functional Length (mm) | 23.00mm |
| Protruding Length (Decimal Inch) | 2.717" |
| Protruding Length (mm) | 69.00mm |
| Overall Length (Decimal Inch) | 4.622" |
| Overall Length (mm) | 117.40mm |
| Body Half Taper Angle Degree) | 20 Degree |
| Machine Side Group | BT & BT Taper-face |

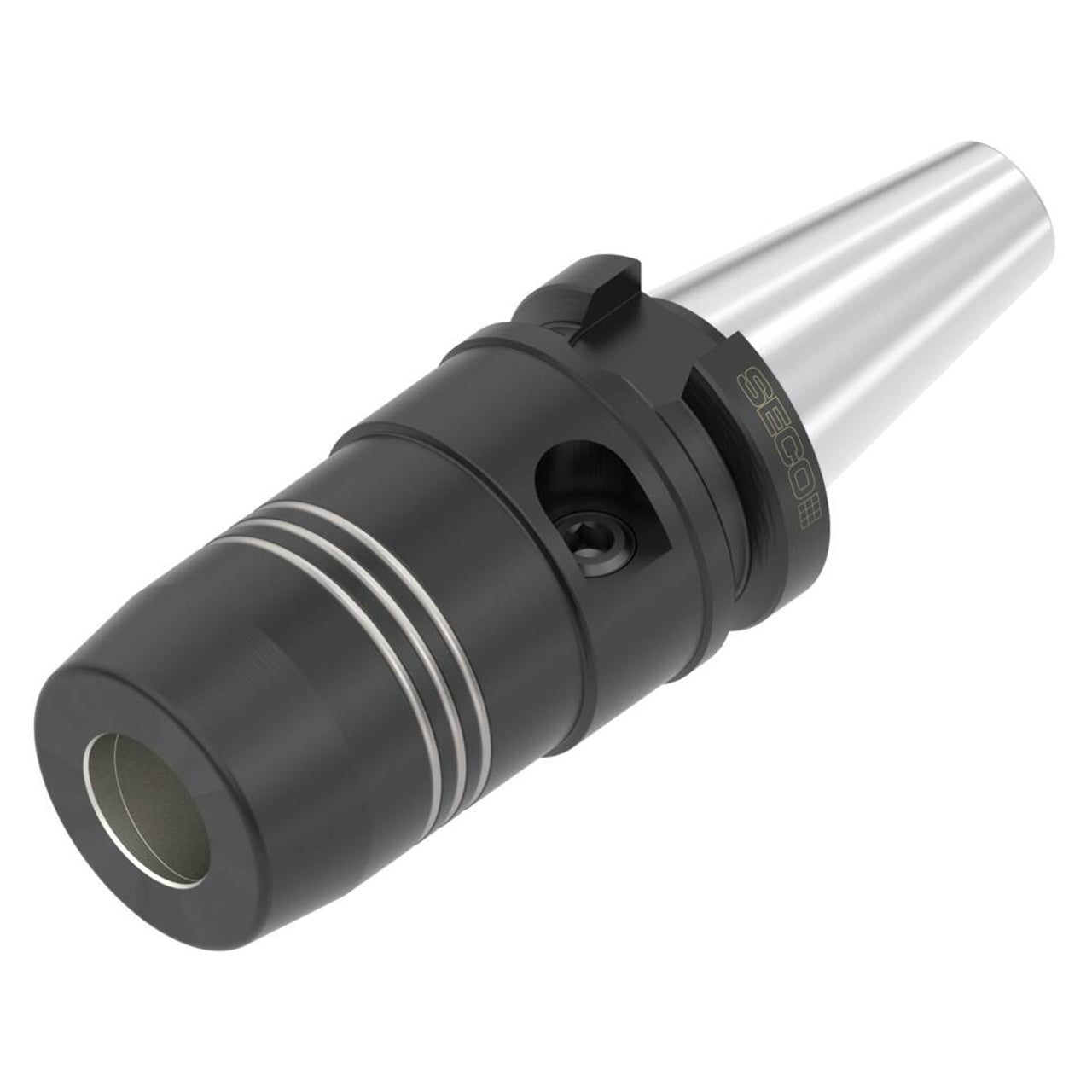

| Product Type | Hydraulic Chuck |
