Product Specifications

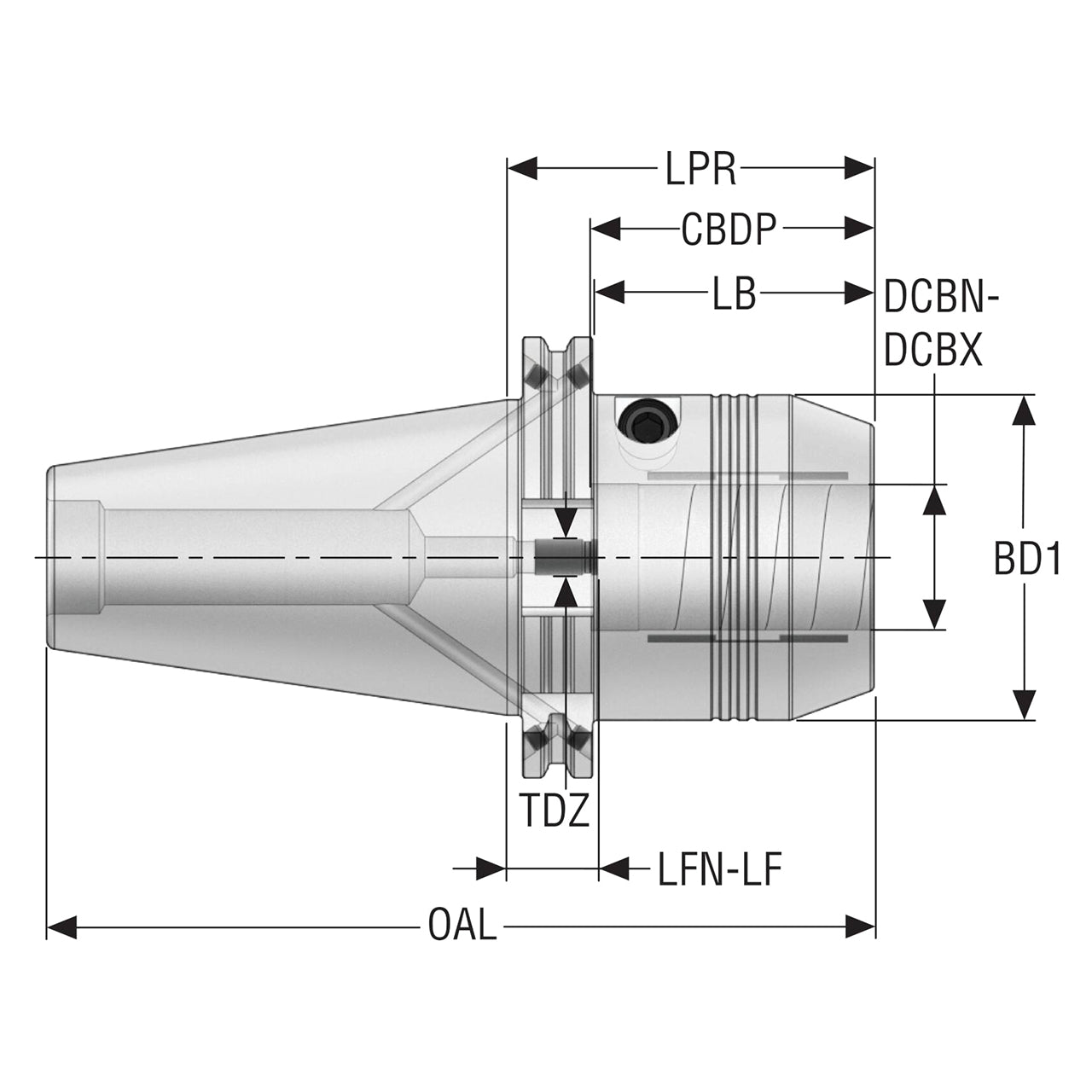

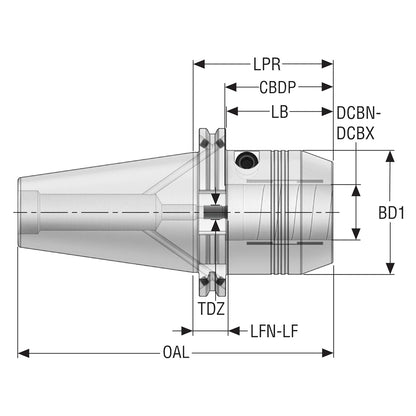

| Manufacturer Part Number | 10137131 |
| Connection Bore Diameter (Decimal Inch) | 0.787" |
| Connection Bore Diameter (mm) | 20.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Minimum Connection Bore Diameter (mm) | 20.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Maximum Connection Bore Diameter (mm) | 20.00mm |
| Body Diameter 1 (Decimal Inch) | 1.939" |
| Body Diameter 1 (mm) | 49.25mm |
| Thread Diameter Size | M8x1 |
| Connection Bore Depth (Decimal Inch) | 0 |
| Connection Bore Depth (mm) | 52.50mm |
| Body Length (Decimal Inch) | 1.791" |
| Body Length (mm) | 45.50mm |
| Functional Length (Decimal Inch) | 0.925" |
| Functional Length (mm) | 23.50mm |
| Minimum Functional Length (Decimal Inch) | 0.532" |
| Minimum Functional Length (mm) | 13.50mm |
| Protruding Length (Decimal Inch) | 2.539" |
| Protruding Length (mm) | 64.50mm |
| Overall Length (Decimal Inch) | 6.535" |
| Overall Length (mm) | 166.00mm |
| Machine Side Group | DIN & DIN taper-face |

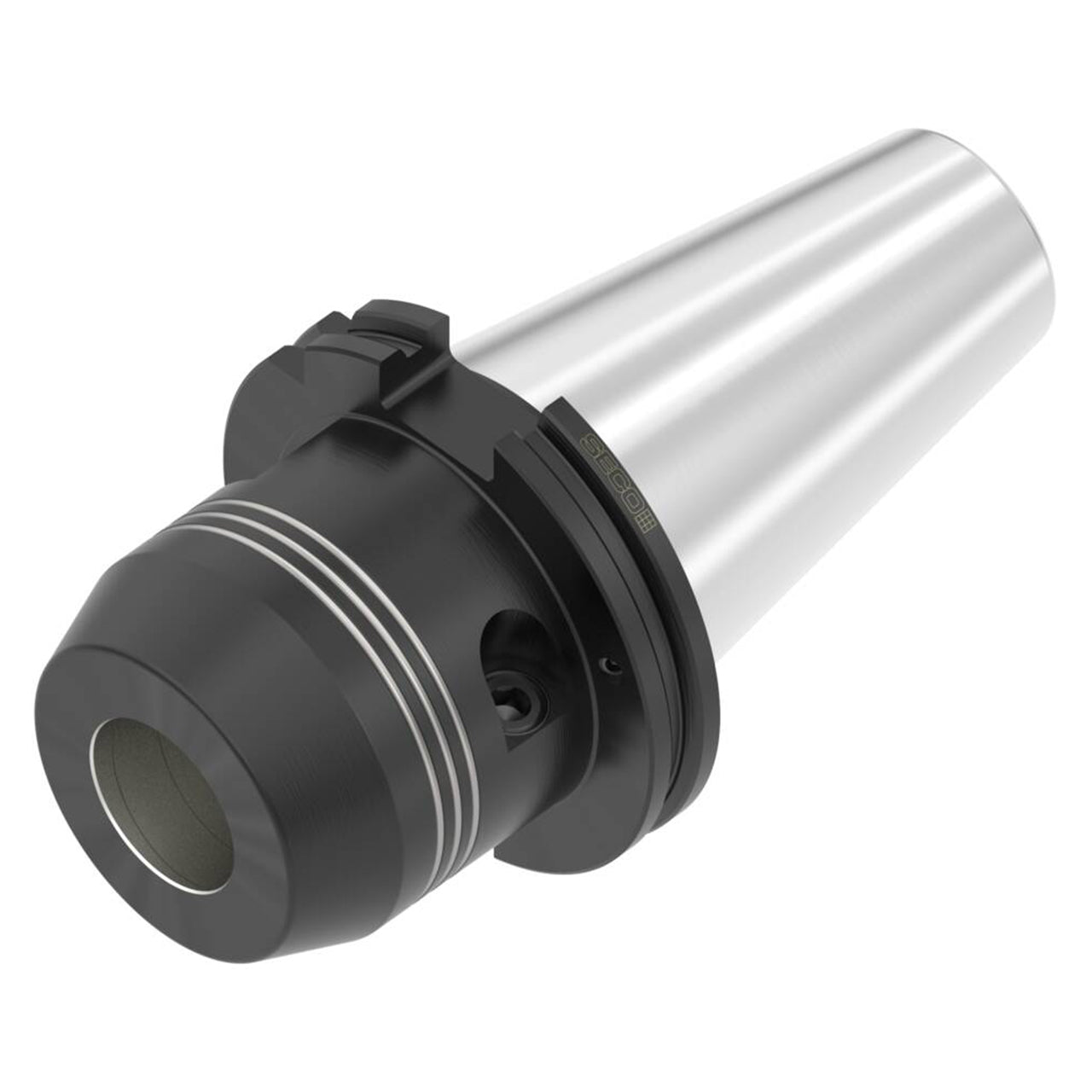

| Product Type | Hydraulic Chuck |
