Product Specifications
| Manufacturer Part Number | 10135929 |
| Cutting Diameter (mm) | 158.80mm |
| Diameter Bolt Circle 1 (mm) | 66.70mm |
| Connection Bore Diameter (mm) | 40.00mm |
| Contact Surface Diameter Machine Side (mm) | 90.00mm |
| Maximum Cutting Diameter (mm) | 188.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 374.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 346.80mm |
| Functional Length (mm) | 80.00mm |
| Maximum Depth of Cut (mm) | 2.90mm |
| Depth of Key Way (mm) | 9.00mm |
| Keyway Width (mm) | 16.40mm |
| Programming Radius (mm) | 5.79mm |
| Uncut Thickness (mm) | 2.1 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -4 Degree |
| Rake Radial Angle (Degree) | -4 Degree |
| Rake Orthogonal Angle (Degree) | -4 Degree |
| Axial Rake Angle (Degree) | 5 Degree |
| Tool Cutting Edge Angle (Degree) | 14 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 14 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 14 Degree |
| Maximum Ramping Angle (Degree) | 0.6 Degree |
| Maximum Rotational Speed (rpm) | 3300 rpm |
| Insert Shape Code | S |
| Shank Type | Arbor |

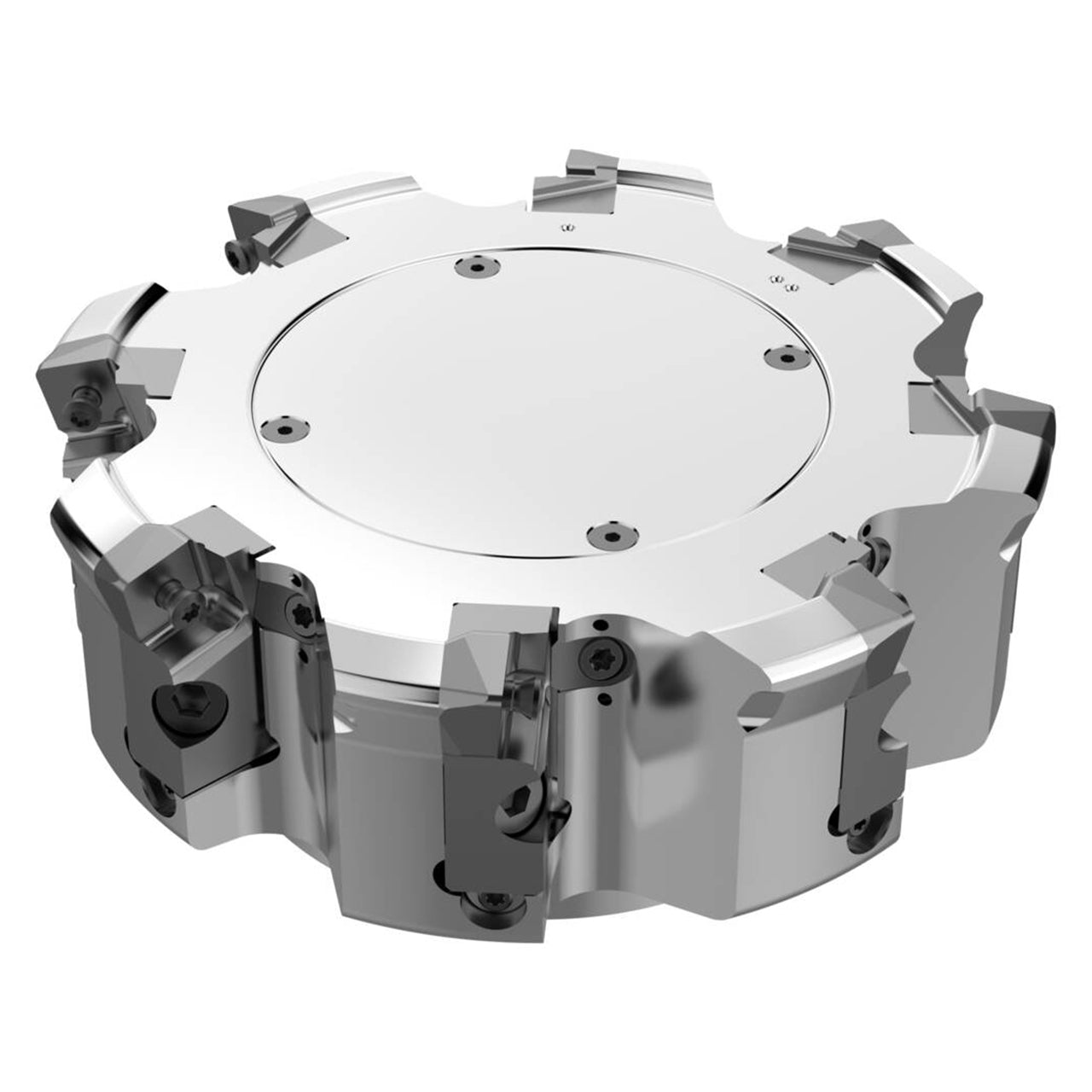

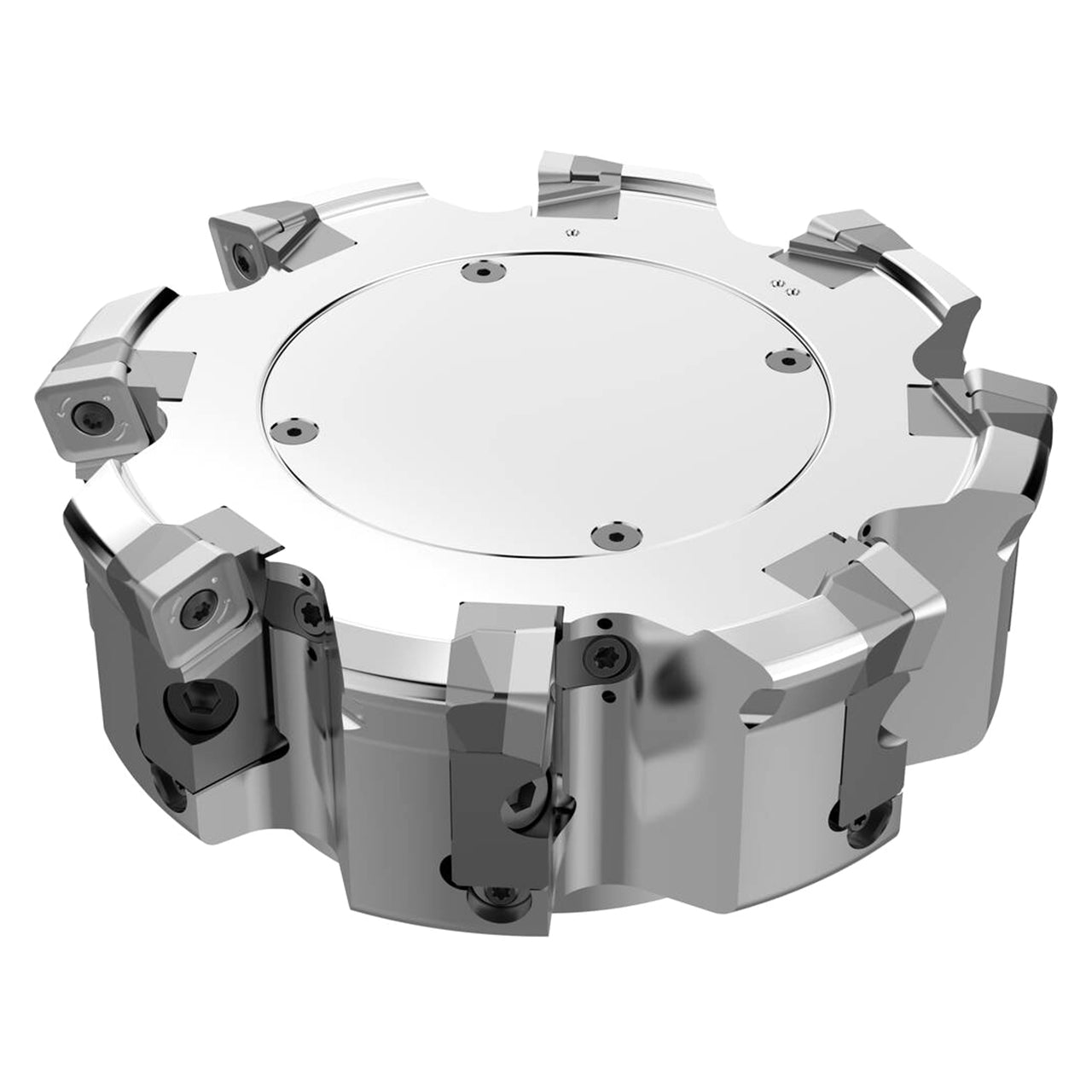

| Product Type | Indexable High-Feed End Mill |
