Product Specifications
| Manufacturer Part Number | 10128161 |
| Cutting Diameter (Decimal Inch) | 2.500" |
| Cutting Diameter (mm) | 63.50mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.480" |
| Contact Surface Diameter Machine Side (mm) | 63.00mm |
| Functional Length (Decimal Inch) | 3.097" |
| Functional Length (mm) | 78.65mm |
| Overall Length (Decimal Inch) | 4.593" |
| Overall Length (mm) | 116.65mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Number of Flute | 4 |
| Insert Shape Code | S |
| Shank Type | Seco-Capto |

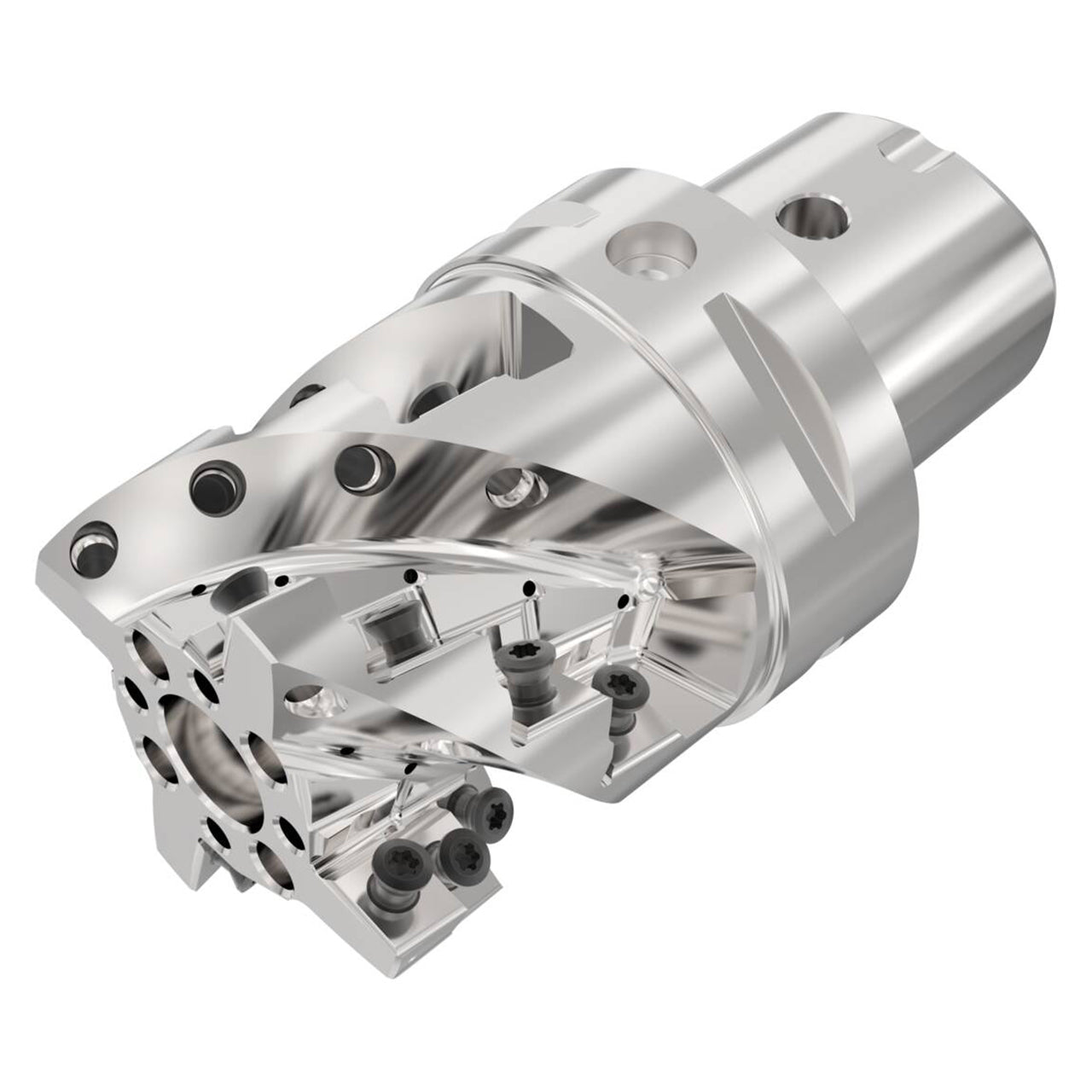

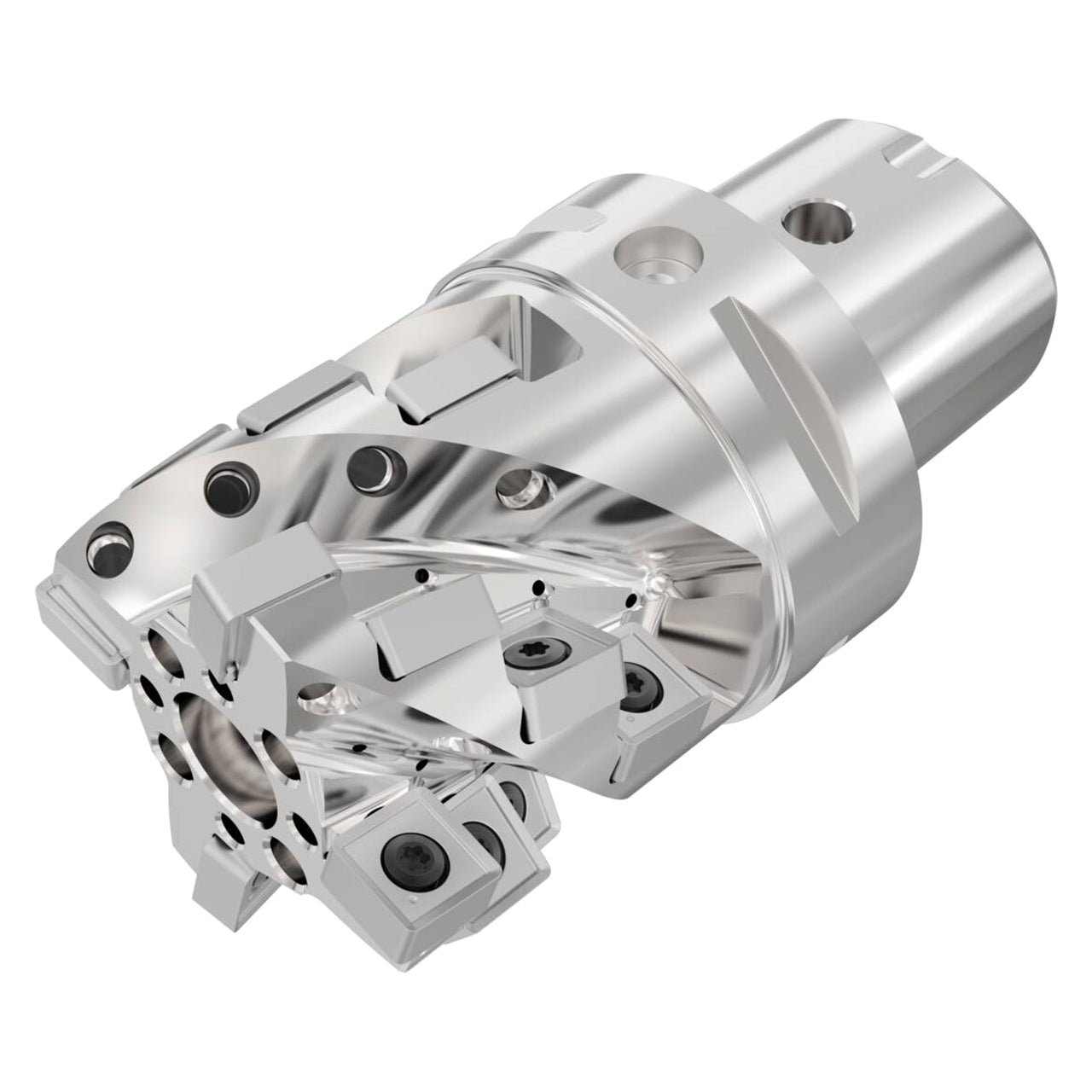

| Product Type | Indexable Square-Shoulder End Mill |
