Product Specifications
| Manufacturer Part Number | 10128065 |
| Cutting Diameter (Decimal Inch) | 2.500" |
| Cutting Diameter (mm) | 63.50mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.480" |
| Contact Surface Diameter Machine Side (mm) | 63.00mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 4.911" |
| Maximum Helical Interpolation Hole Diameter (mm) | 124.75mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 4.348" |
| Minimum Helical Interpolation Hole Diameter (mm) | 110.44mm |
| Functional Length (Decimal Inch) | 4.528" |
| Functional Length (mm) | 115.00mm |
| Overall Length (Decimal Inch) | 6.024" |
| Overall Length (mm) | 153.00mm |
| Maximum Depth of Cut (mm) | 79.68mm |
| Maximum Depth of Cut (Decimal Inch) | 3.137" |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | -13 Degree |
| Rake Radial Angle (Degree) | -13 Degree |
| Rake Orthogonal Angle (Degree) | -13 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 4 |
| Maximum Ramping Angle (Degree) | 1.7 Degree |
| Maximum Rotational Speed (rpm) | 7400 rpm |
| Insert Shape Code | X / S |
| Shank Type | Seco-Capto |

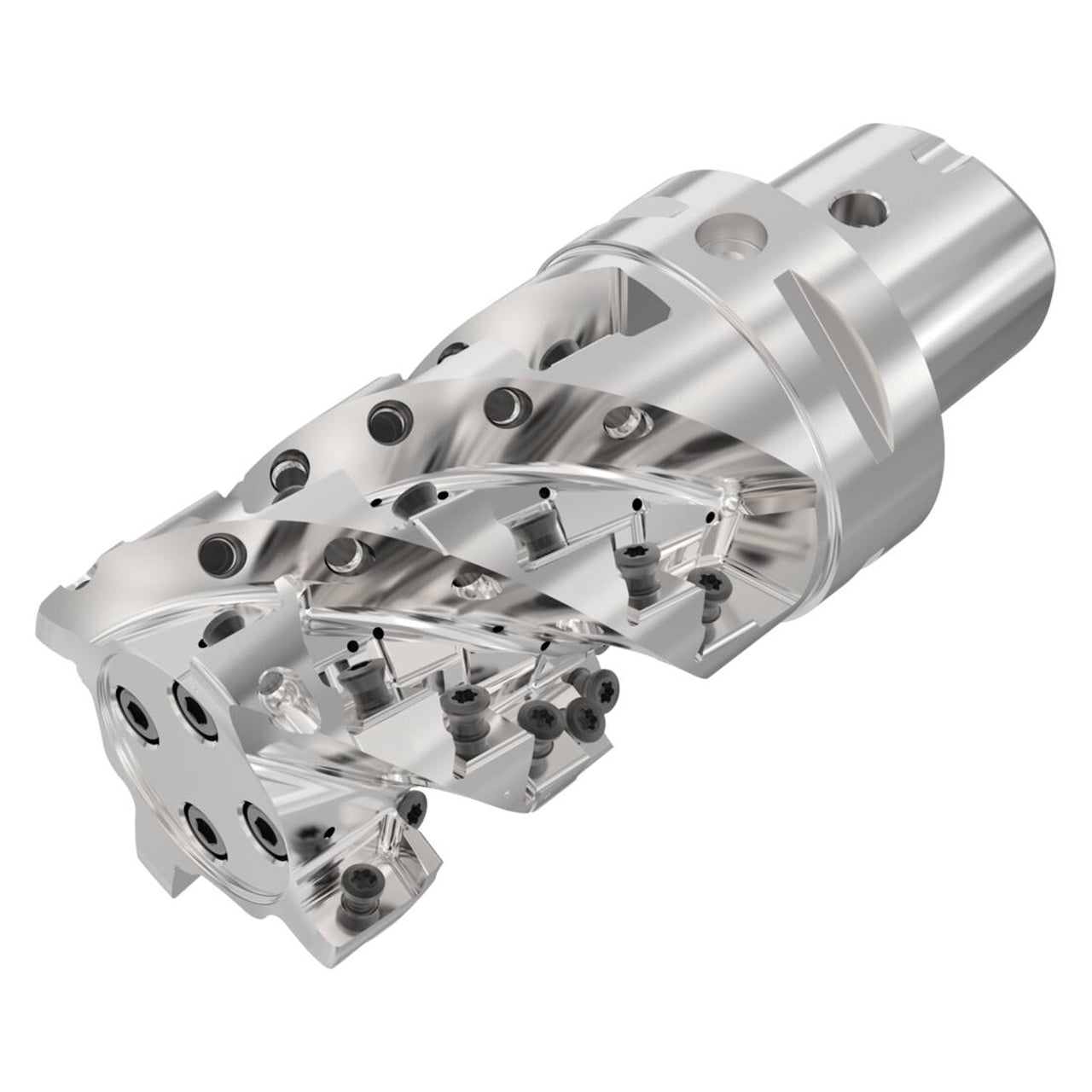

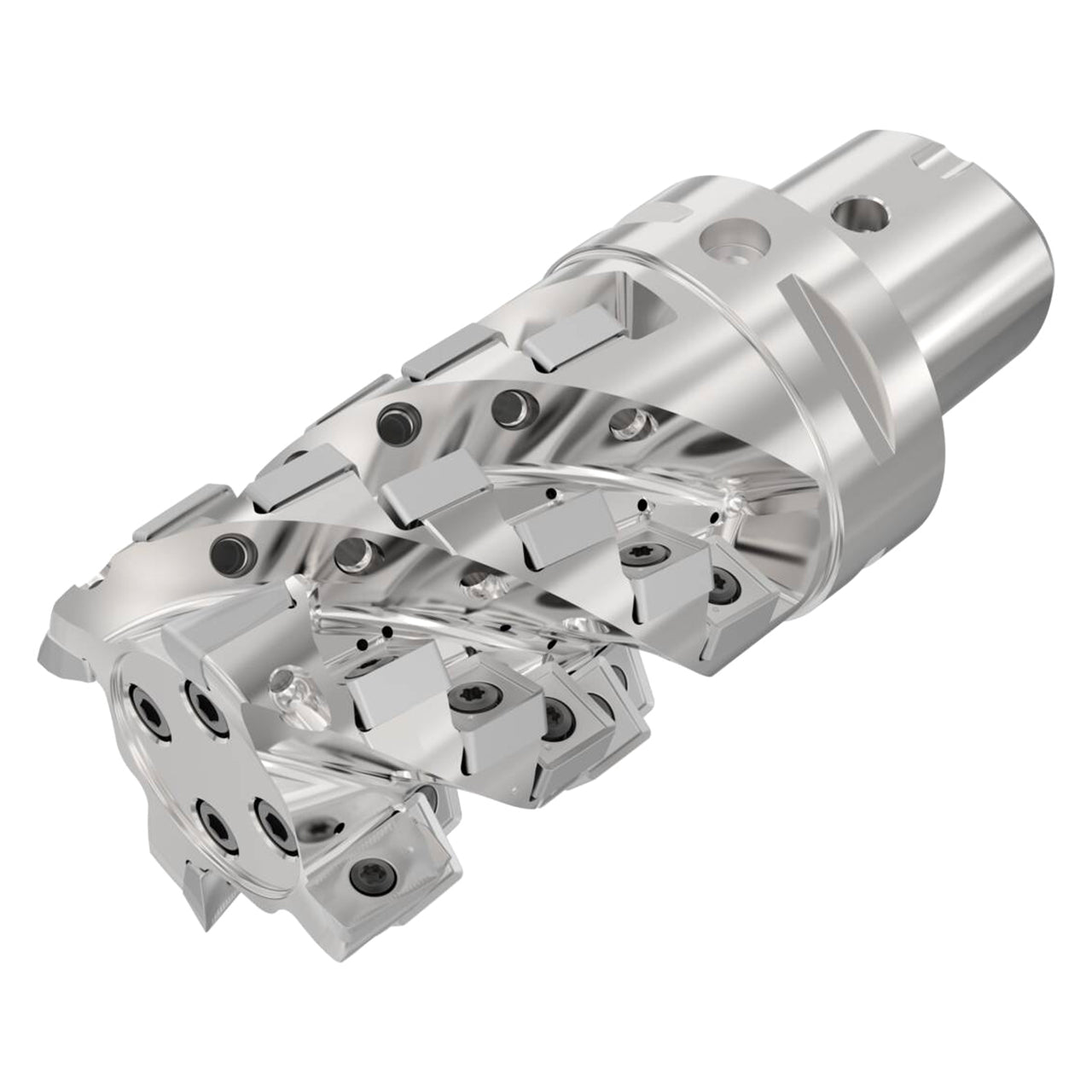

| Product Type | Indexable Square-Shoulder End Mill |
