Product Specifications
| Manufacturer Part Number | 10127488 |
| Cutting Diameter (Decimal Inch) | 3.000" |
| Cutting Diameter (mm) | 76.20mm |
| Connection Bore Diameter (Decimal Inch) | 1.250" |
| Connection Bore Diameter (mm) | 31.75mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.795" |
| Contact Surface Diameter Machine Side (mm) | 71.00mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 5.911" |
| Maximum Helical Interpolation Hole Diameter (mm) | 150.15mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 5.348" |
| Minimum Helical Interpolation Hole Diameter (mm) | 135.84mm |
| Functional Length (Decimal Inch) | 3.500" |
| Functional Length (mm) | 88.90mm |
| Maximum Depth of Cut (mm) | 68.00mm |
| Maximum Depth of Cut (Decimal Inch) | 2.677" |
| Depth of Key Way (Decimal Inch) | 0.287" |
| Depth of Key Way (mm) | 7.30mm |
| Keyway Width (Decimal Inch) | 0.508" |
| Keyway Width (mm) | 12.90mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | -12.5 Degree |
| Rake Radial Angle (Degree) | -12.5 Degree |
| Rake Orthogonal Angle (Degree) | -12.5 Degree |
| Axial Rake Angle (Degree) | 8 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 5 |
| Maximum Ramping Angle (Degree) | 1.2 Degree |
| Maximum Rotational Speed (rpm) | 6500 rpm |
| Insert Shape Code | X / S |
| Shank Type | Arbor |

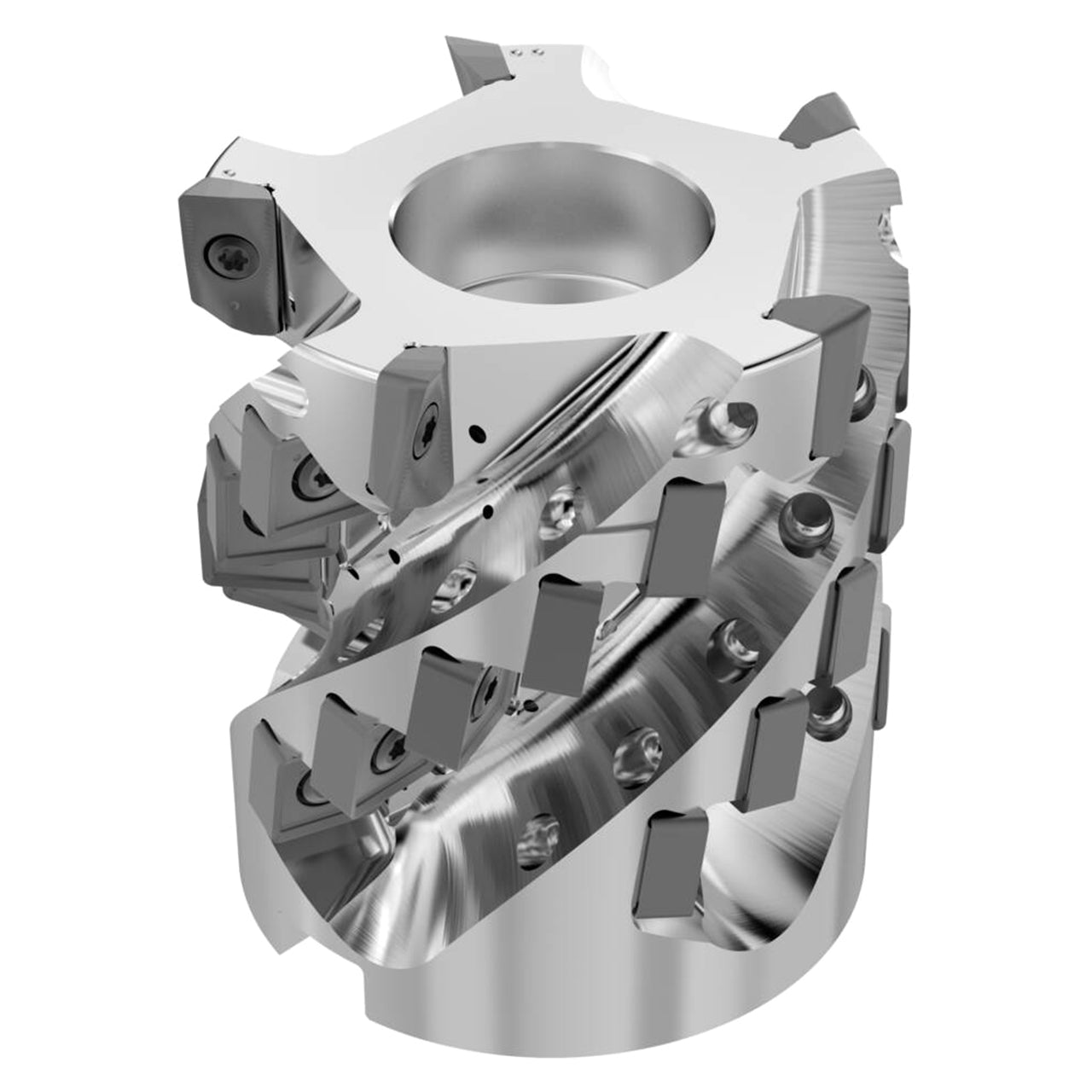

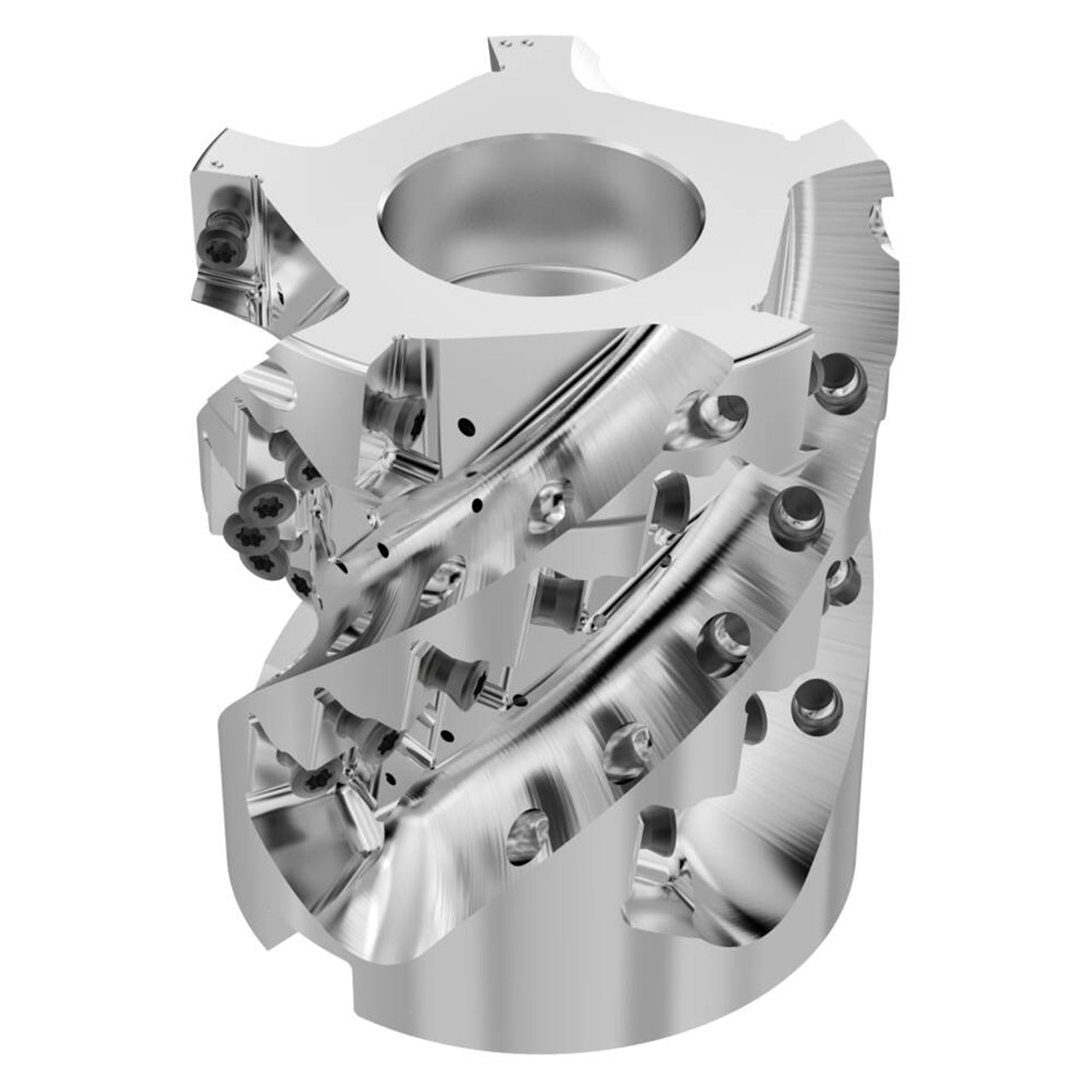

| Product Type | Indexable Square-Shoulder End Mill |
