Seco Tools

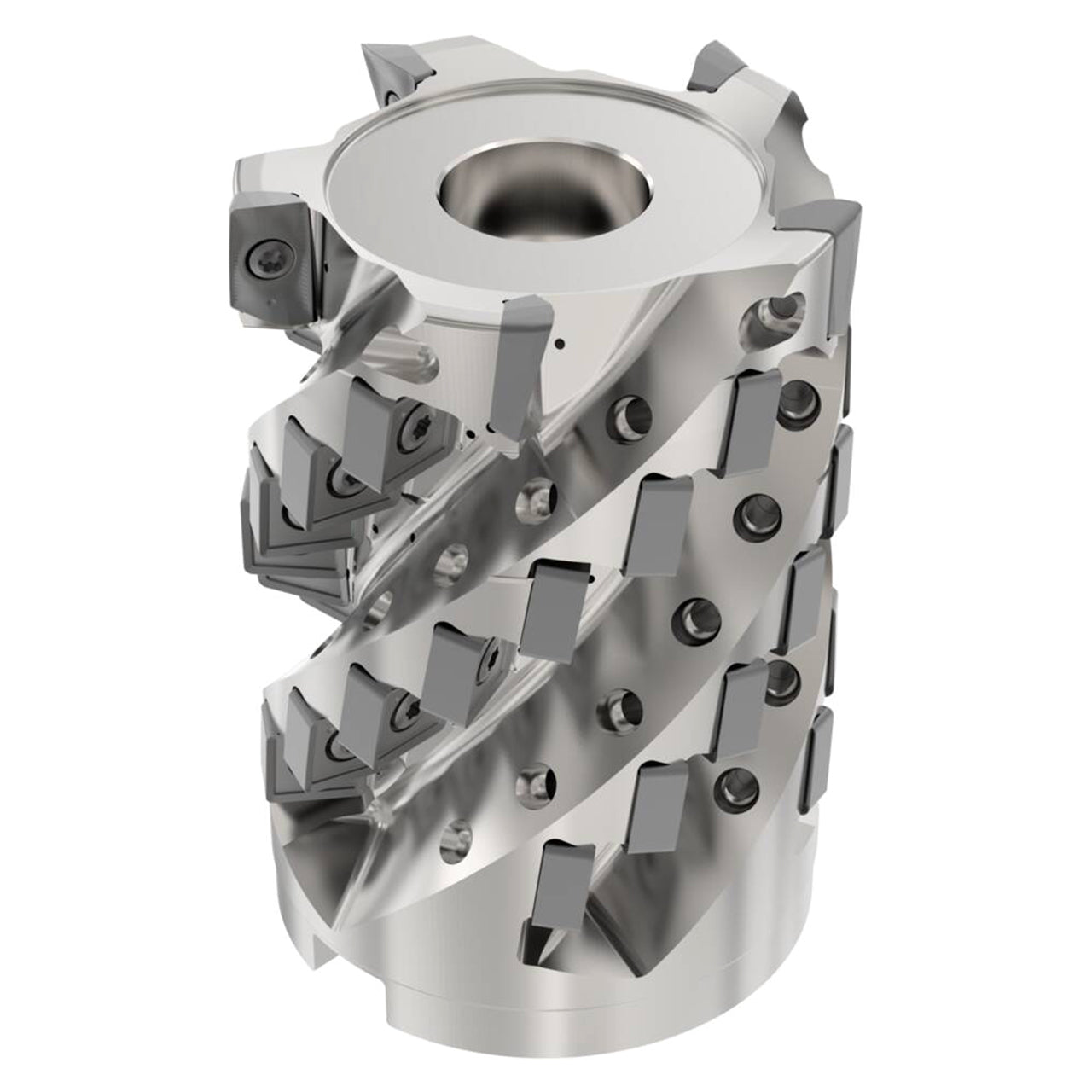

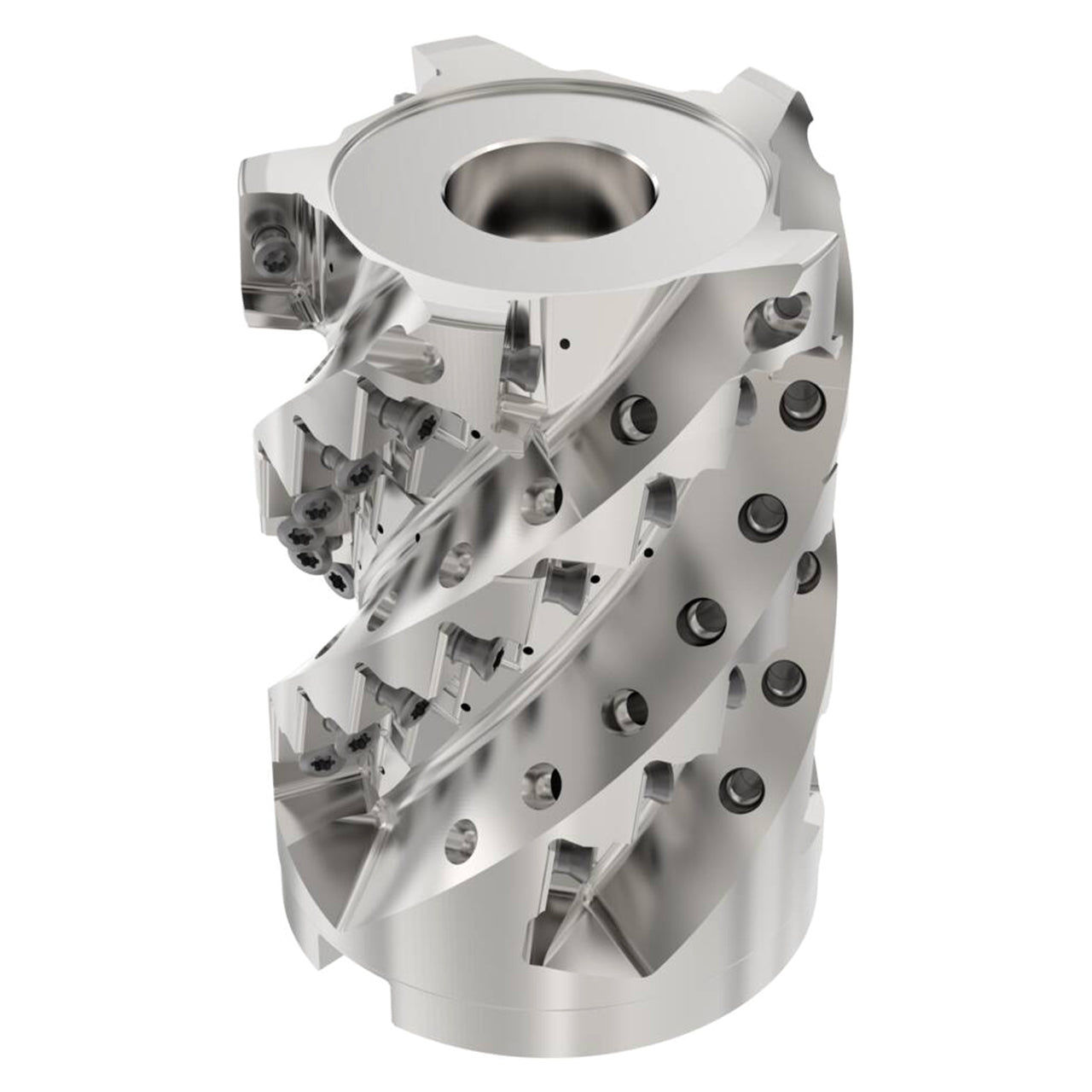

Seco Tools 10127468 | R220.82-0080-090-SNXO16.5SA 80.00mm Cutting Diameter x 90.00mm Depth of Cut Maximum x 115.00mm Functional Length x 8.00 Degree Rake Axial Angle 5 Cutting Edge 6500 rpm Rotational Speed R220.82 Indexable Square-Shoulder Face Mill

Seco Tools 10127468 | R220.82-0080-090-SNXO16.5SA 80.00mm Cutting Diameter x 90.00mm Depth of Cut Maximum x 115.00mm Functional Length x 8.00 Degree Rake Axial Angle 5 Cutting Edge 6500 rpm Rotational Speed R220.82 Indexable Square-Shoulder Face Mill

SKU: 23346485

$4,820.00 USD
$4,820.00 USD $4,820.00 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

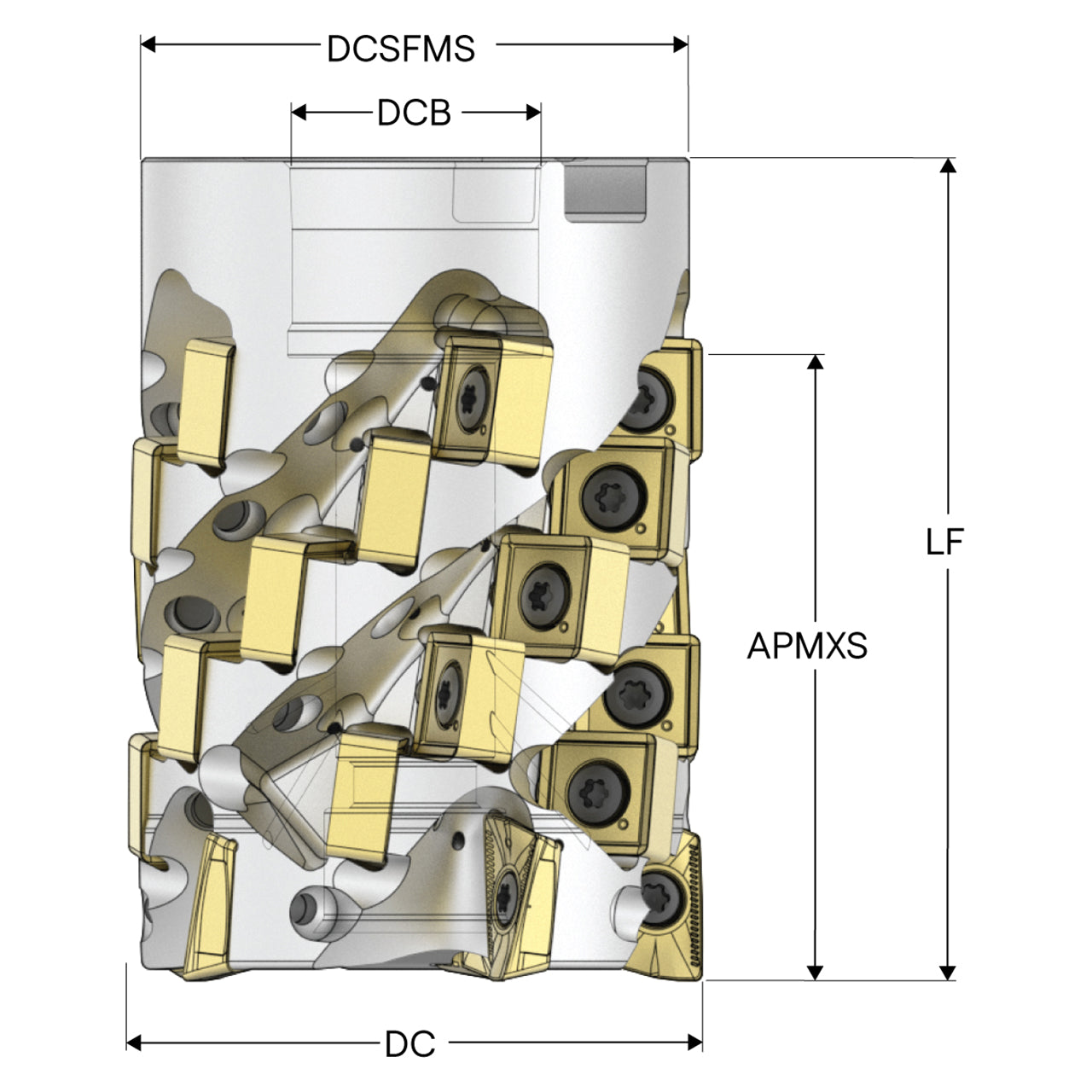

Product Specifications
Manufacturer Part Number 10127468
Depth of Cut Maximum in Feed Direction Side (mm) 90.00mm
Cutting Pitch Density Normal
Coolant Supply Property 1
Cutting Diameter (mm) 80.00mm
Contact Surface Diameter Machine Side (mm) 75.00mm
Tool Cutting Edge Angle in Feed Direction Side (Degree) 90.00 Degree
Functional Length (mm) 115.00mm
Number of Flutes 5
Rotational Speed Maximum 6500 rpm
Shank Type Arbor
Peripheral Effective Cutting Edge Count 5
Product Series R220.82
Product Type Indexable Square-Shoulder Face Mill
