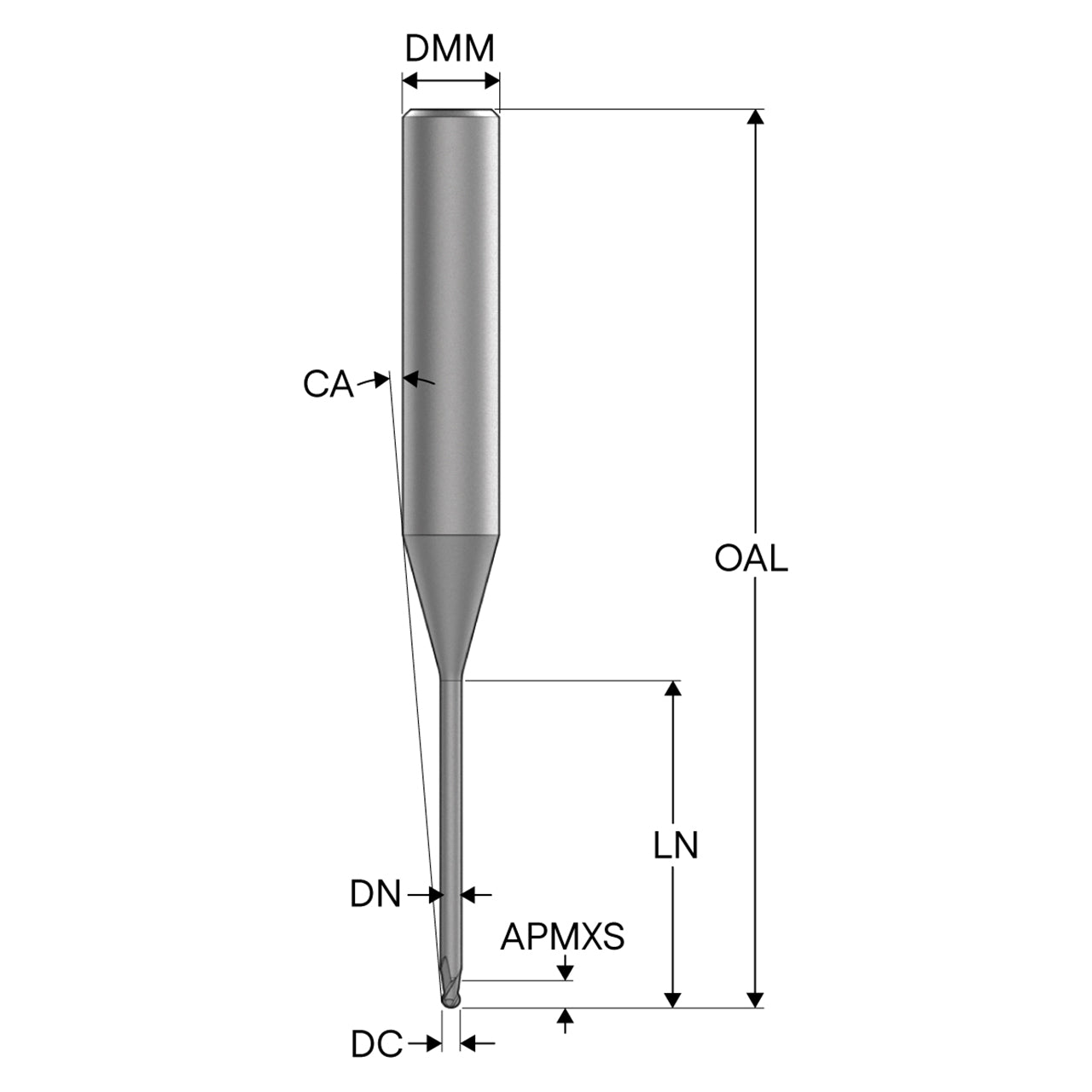

Product Specifications
| Manufacturer Part Number | 10109390 |
| Depth of Cut Maximum in Feed Direction Side (mm) | 2.50mm |
| Center Cutting Capability | 1 |
| Cutting Geometry Type | SMB416 |
| Coating | Uncoated |
| Cutting Diameter (mm) | 2.50mm |
| Shank Diameter (mm) | 6.00mm |
| Neck Diameter (mm) | 2.40mm |
| Face Cutting Edge Count | 2 |
| Flute Helix Angle (Degree) | 35 Degree |
| Neck Length (mm) | 20.00mm |
| Overall Length (mm) | 55.00mm |
| Cutting Edge Count | 2 |
| Corner Radius (mm) | 1.25mm |
| Shank Type | Cylindrical |
| Product Series | SMB416 |

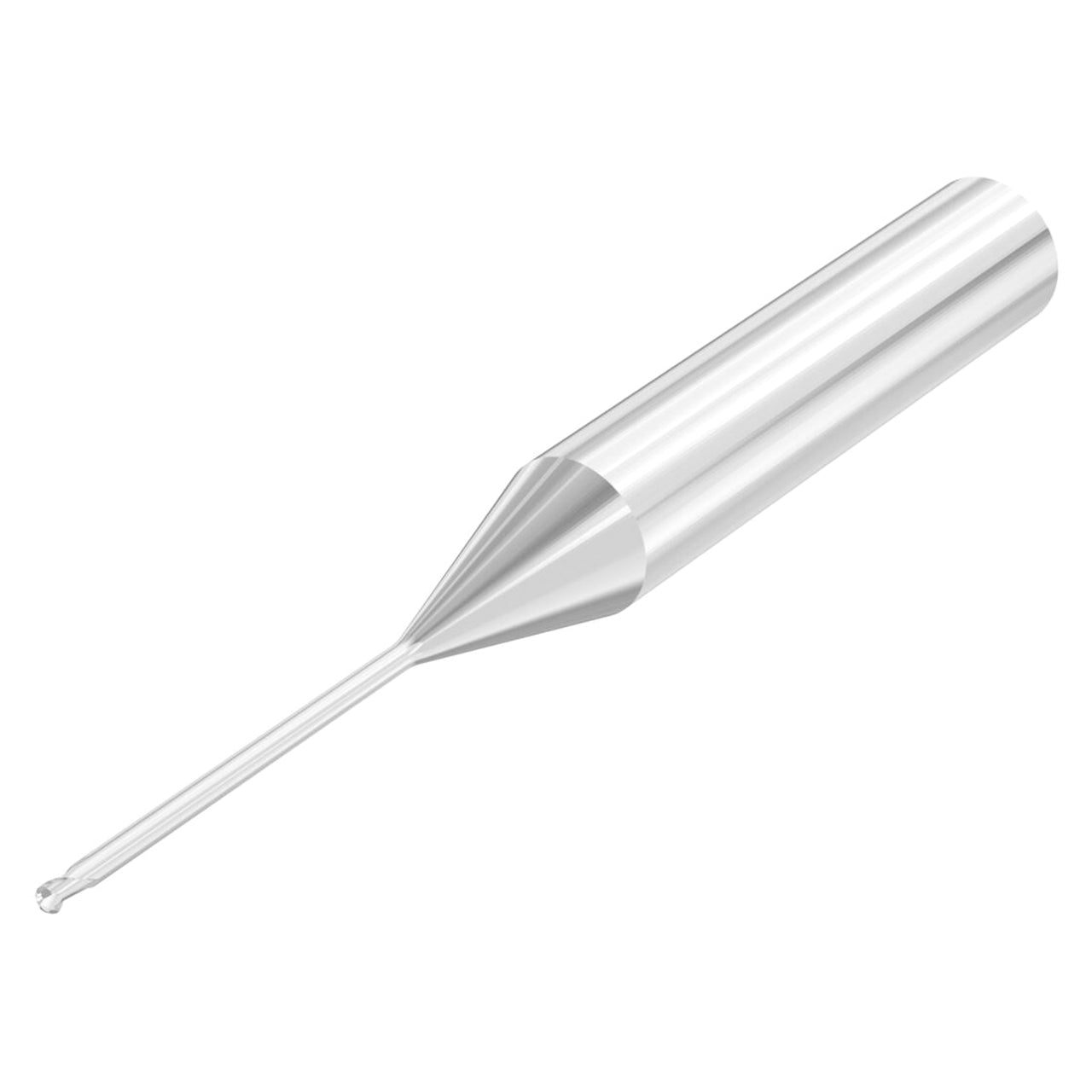

| Product Type | Ball End Mill |
