Product Specifications
| Manufacturer Part Number | 10107621 |
| Cutting Diameter (Decimal Inch) | 1.500" |
| Cutting Diameter (mm) | 38.10mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.250" |
| Connection Diameter Machine Side (mm) | 31.75mm |
| Shank Diameter (Decimal Inch) | 1.250" |
| Shank Diameter (mm) | 31.75mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 2.402" |
| Minimum Helical Interpolation Hole Diameter (mm) | 61.00mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 2.913" |
| Maximum Helical Interpolation Hole Diameter (mm) | 74.00mm |
| Functional Length (Decimal Inch) | 3.189" |
| Functional Length (mm) | 81.00mm |
| Protruding Length (Decimal Inch) | 1.969" |
| Protruding Length (mm) | 50.00mm |
| Shank Length (Decimal Inch) | 2.874" |
| Shank Length (mm) | 73.00mm |
| Overall Length (Decimal Inch) | 4.331" |
| Overall Length (mm) | 110.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.591" |
| Maximum Depth of Cut (mm) | 15.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -22.2 Degree |
| Rake Orthogonal Angle (Degree) | -22.2 Degree |
| Maximum Ramping Angle (Degree) | 0.25 Degree |
| Maximum Rotational Speed (rpm) | 10000 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | ZOMX1607 |
| Coolant Exit Style Code | 3 |
| Cutting Item Material Type | Stainless Steel |
| Shank Type | Weldon |

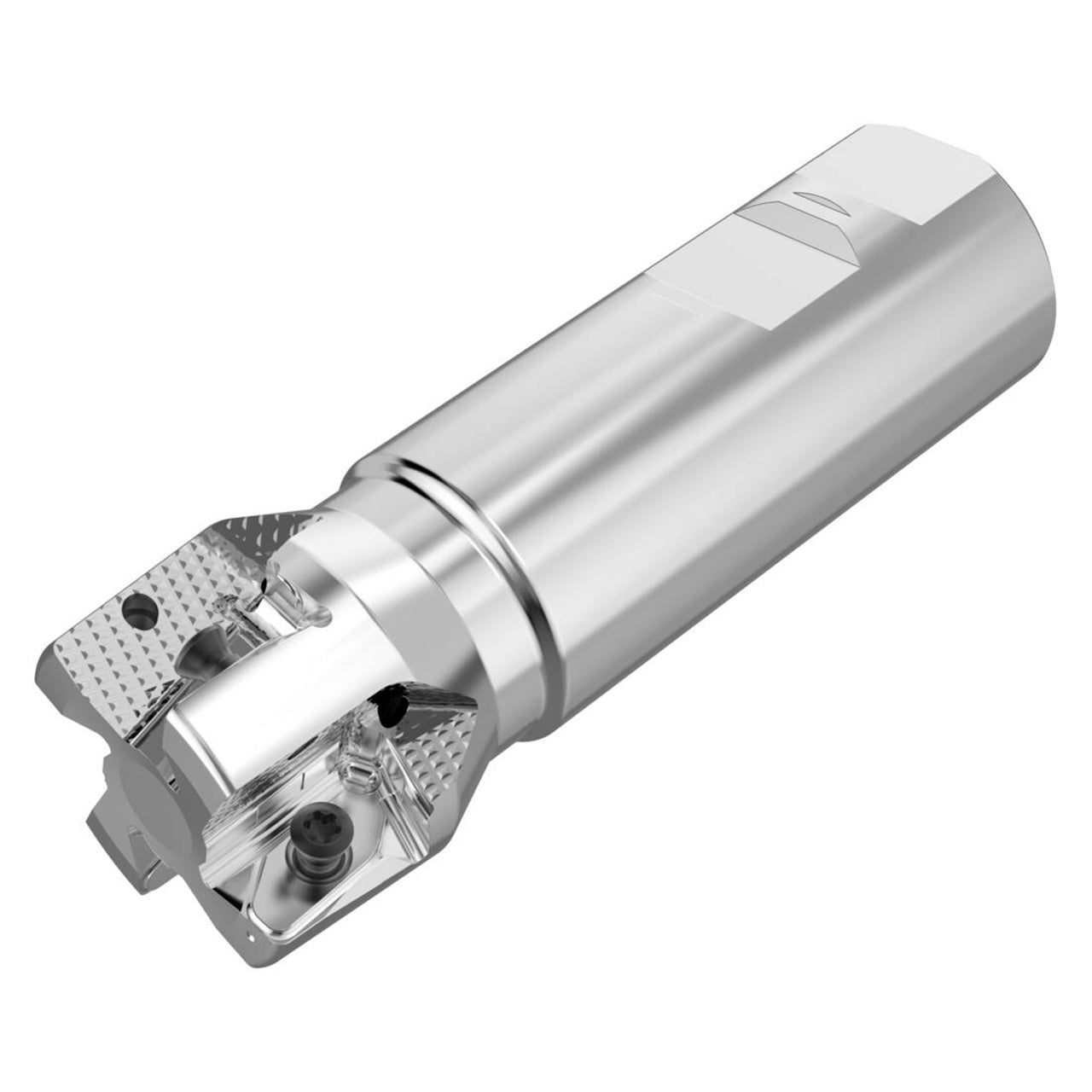

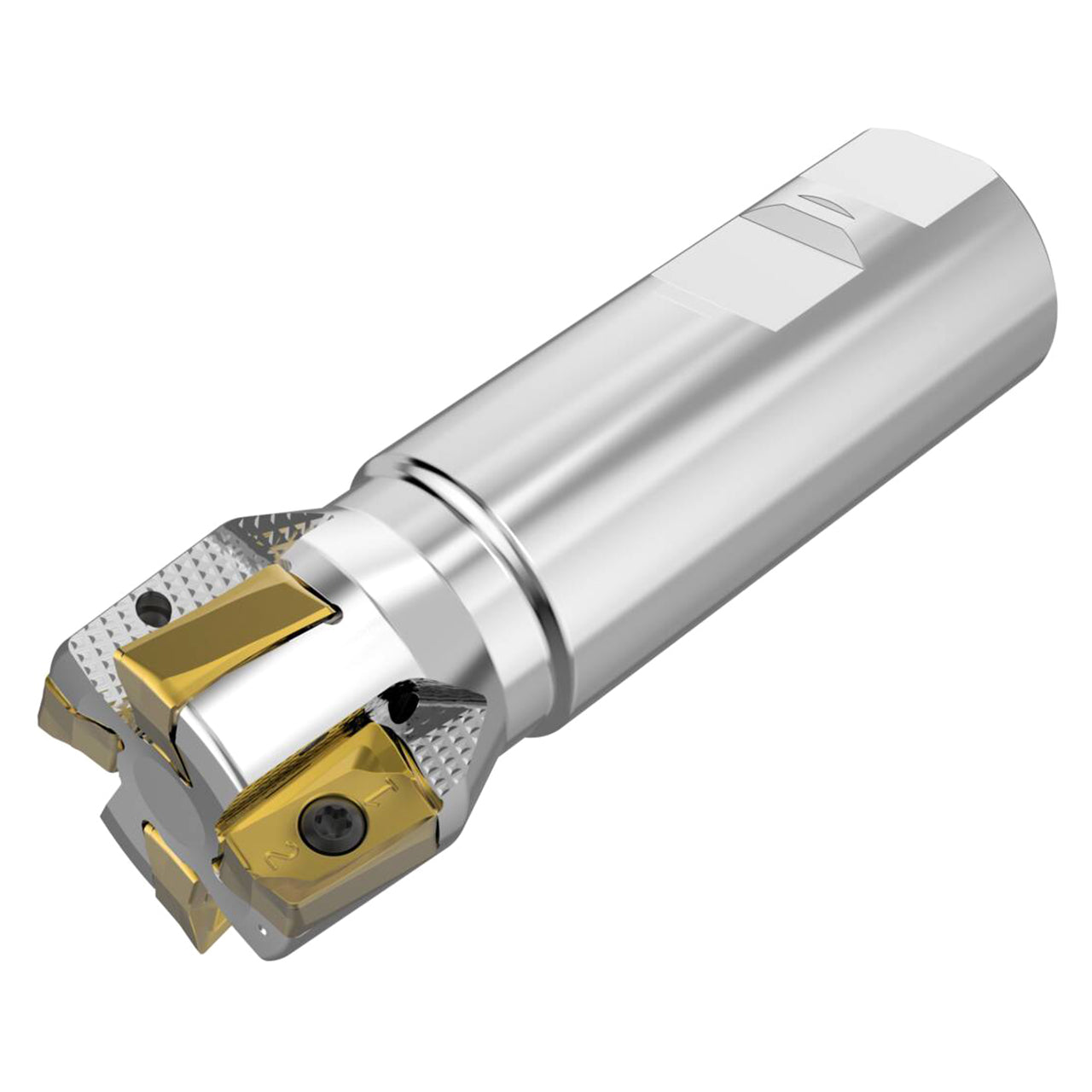

| Product Type | Indexable Square-Shoulder End Mill |
