Product Specifications

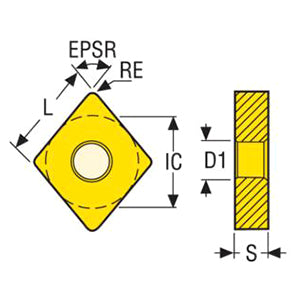

| Manufacturer Part Number | 10102682 |
| Fixing Hole Diameter (Decimal Inch) | 0.203" |
| Fixing Hole Diameter (mm) | 5.15mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.142" |
| Cutting Edge Effective Length (mm) | 3.60mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.508" |
| Theoretical Cutting Edge Length (mm) | 12.90mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Insert Thickness (Decimal Inch) | 0.187" |
| Insert Thickness (mm) | 4.76mm |
| Cutting Edge Count | 2 |
| Insert Included Angle (Degree) | 80 Degree |
| Cutting Edge Condition Code | S |
| Insert Size And Shape | CN1204 |
| Insert Shape Code | C |
| Material | PCBN |
| Product Type | Turning Insert |
