Product Specifications
| Manufacturer Part Number | 10102580 |
| Minimum Cutting Diameter Internal (mm) | 22.00mm |
| Connection Diameter Machine Side (mm) | 19.98mm |
| Shank Diameter (mm) | 19.98mm |
| Functional Length (mm) | 150.00mm |
| Head Length (mm) | 33.48mm |
| Shank Length (mm) | 116.52mm |
| Height of Tool Holder Shank (mm) | 18.00mm |
| Shank Width (mm) | 19.00mm |
| Maximum Radial Cutting Depth (mm) | 2.00mm |
| Maximum Cutting Depth (mm) | 4.00mm |
| Tool Cutting Edge Angle (Degree) | 120 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 120 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 94.96 Degree |
| Inclination Angle (Degree) | -3 Degree |
| Rake Radial Angle (Degree) | -2.6 Degree |
| Maximum Ramping Angle (Degree) | 30 Degree |
| Cutting Direction | Left Hand |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Insert Clamping System | S |
| Shank Type | Cylindrical |
| Insert Shape Code | D |

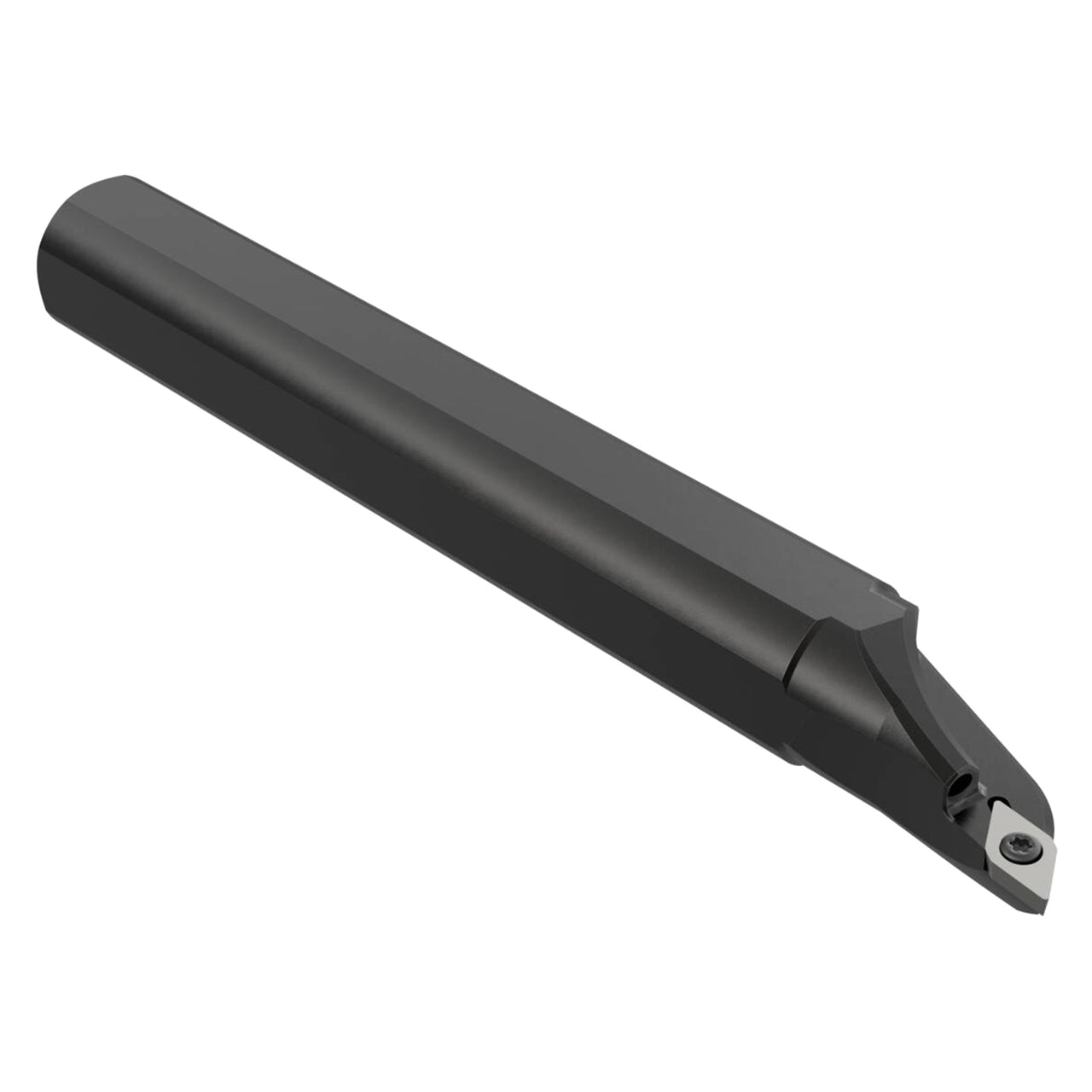

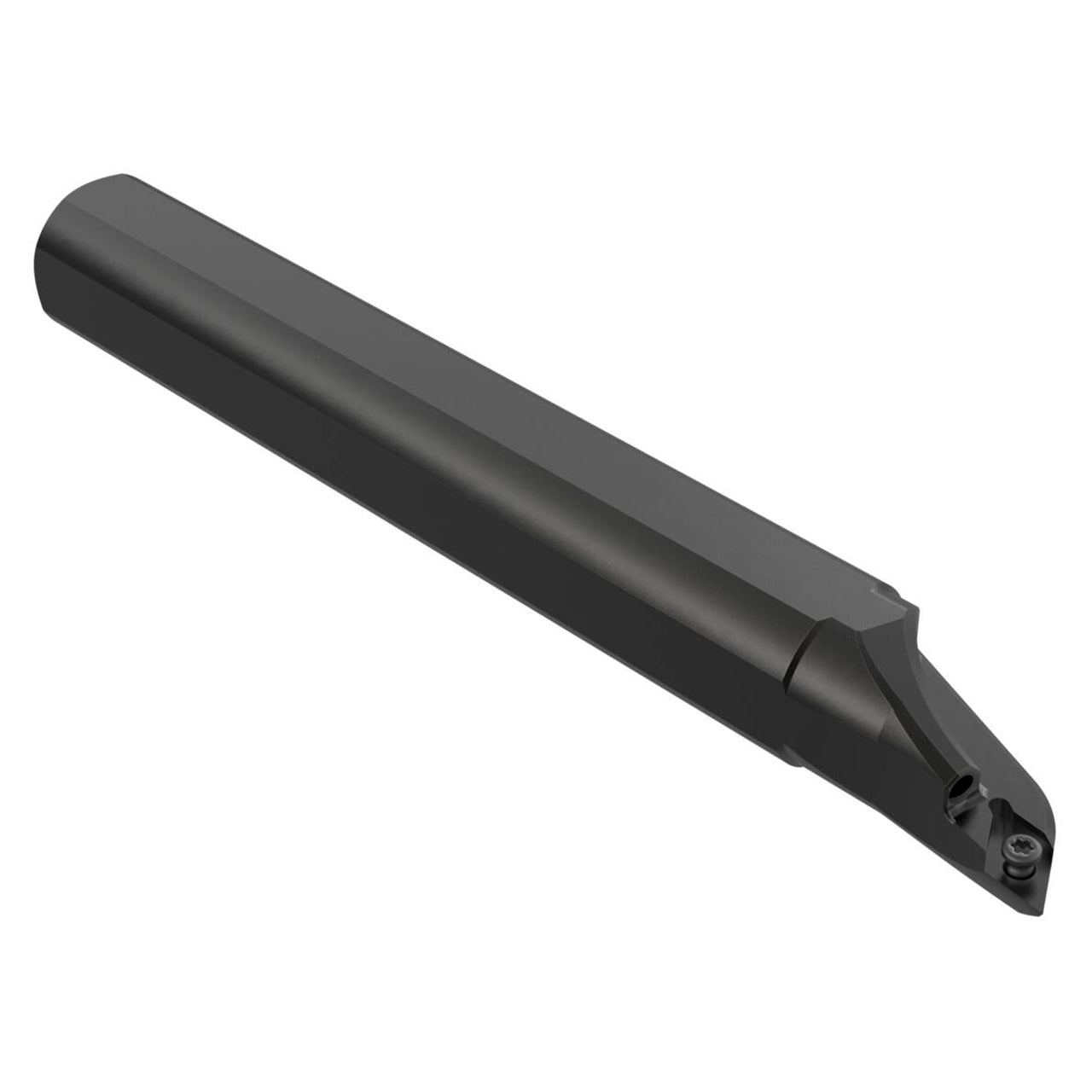

| Product Type | Indexable Boring Bar |
