Product Specifications
| Manufacturer Part Number | 10097557 |
| Cutting Diameter (mm) | 18.70mm |
| Contact Surface Diameter Machine Side (mm) | 30.00mm |
| Maximum Cutting Diameter (mm) | 35.00mm |
| Thread Diameter Size | M16 |
| Maximum Helical Interpolation Hole Diameter (mm) | 68.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 53.70mm |
| Functional Length (mm) | 35.00mm |
| Overall Length (mm) | 57.75mm |
| Maximum Depth of Cut (mm) | 1.10mm |
| Connection Mounting Torque (Nm) | 80.0 Nm |
| Programming Radius (mm) | 2.80mm |
| Uncut Thickness (mm) | 0.9 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -4 Degree |
| Rake Radial Angle (Degree) | -4 Degree |
| Rake Orthogonal Angle (Degree) | -4 Degree |
| Axial Rake Angle (Degree) | 4 Degree |
| Tool Cutting Edge Angle (Degree) | 10 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 10 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 10 Degree |
| Maximum Ramping Angle (Degree) | 3.5 Degree |
| Maximum Rotational Speed (rpm) | 20700 rpm |
| Insert Shape Code | S |
| Shank Type | Combimaster |

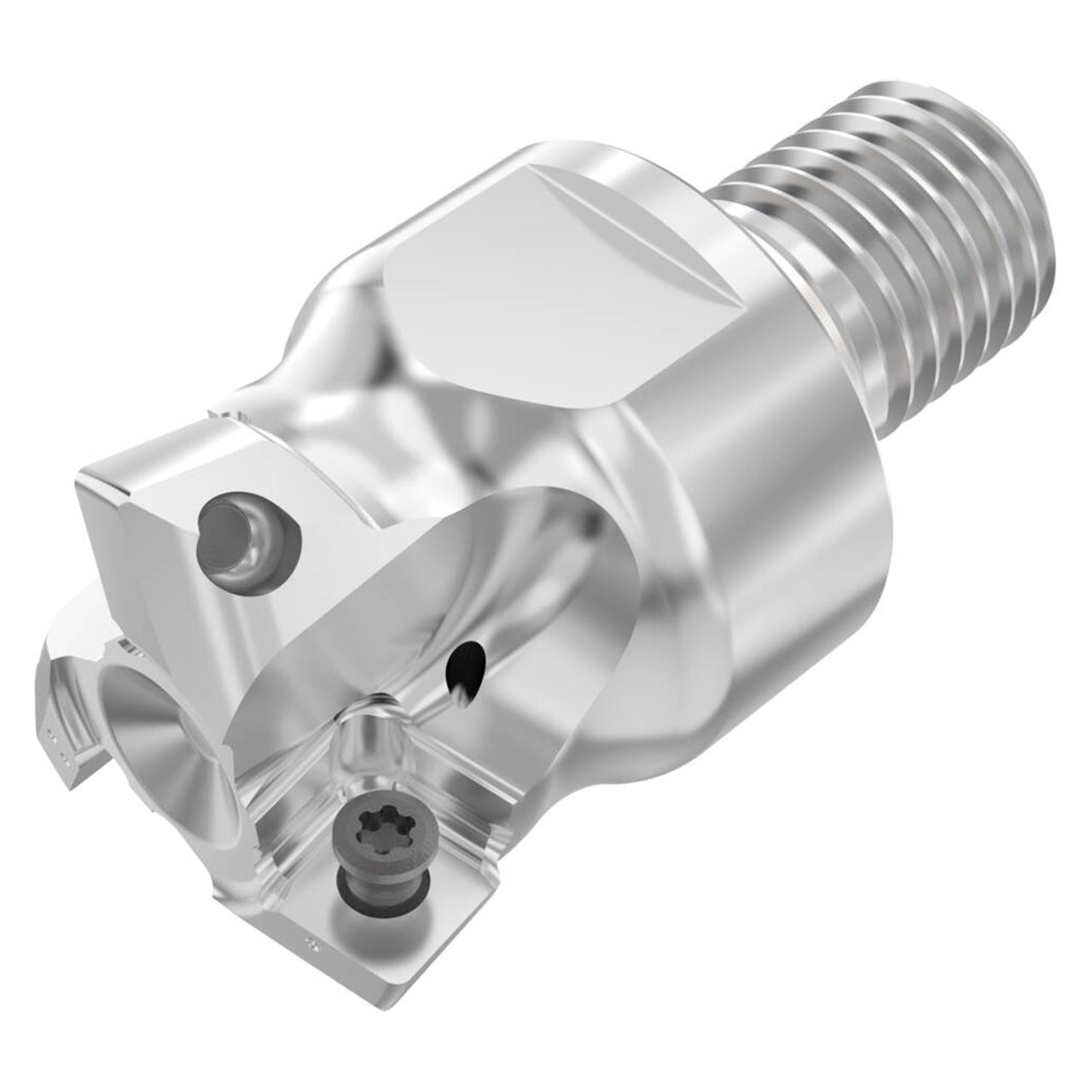

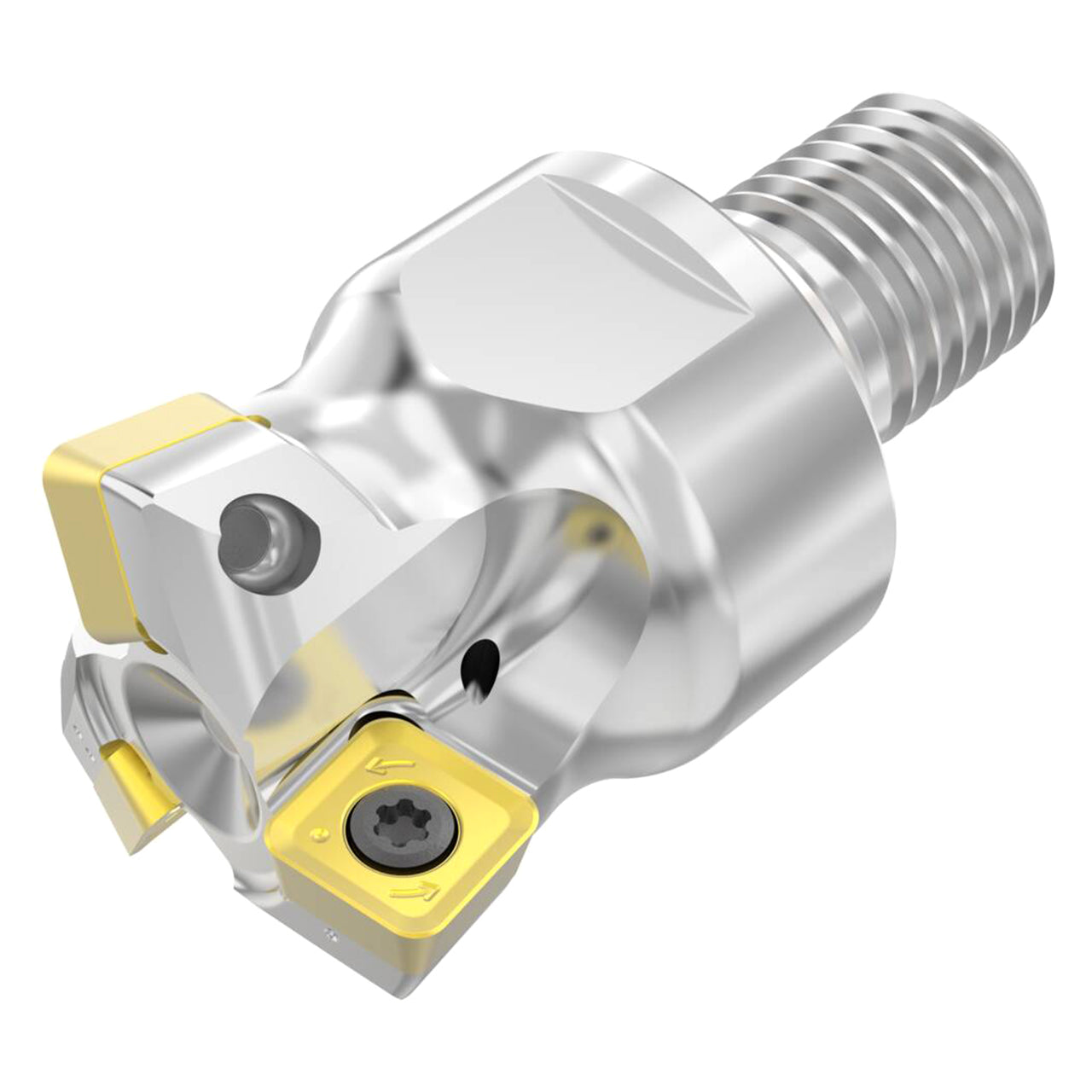

| Product Type | Indexable High-Feed End Mill |
