Product Specifications
| Manufacturer Part Number | 10092376 |
| Depth of Cut Maximum in Feed Direction Side (Decimal Inch) | 0.500" |
| Body Diameter (Decimal Inch) | 0.819" |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | No |
| Cutting Diameter (Decimal Inch) | 2.000" |
| Connection Diameter Machine Side (Decimal Inch) | 1.000" |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90.00 Degree |
| Protruding Length (Decimal Inch) | 3.795" |
| Shank Length (Decimal Inch) | 4.331" |
| Overall Length (Decimal Inch) | 6.000" |
| Rotational Speed Maximum | 12300 rpm |
| Shank Type | Cylindrical |
| Peripheral Effective Cutting Edge Count | 3 |
| Product Series | R335.18 |

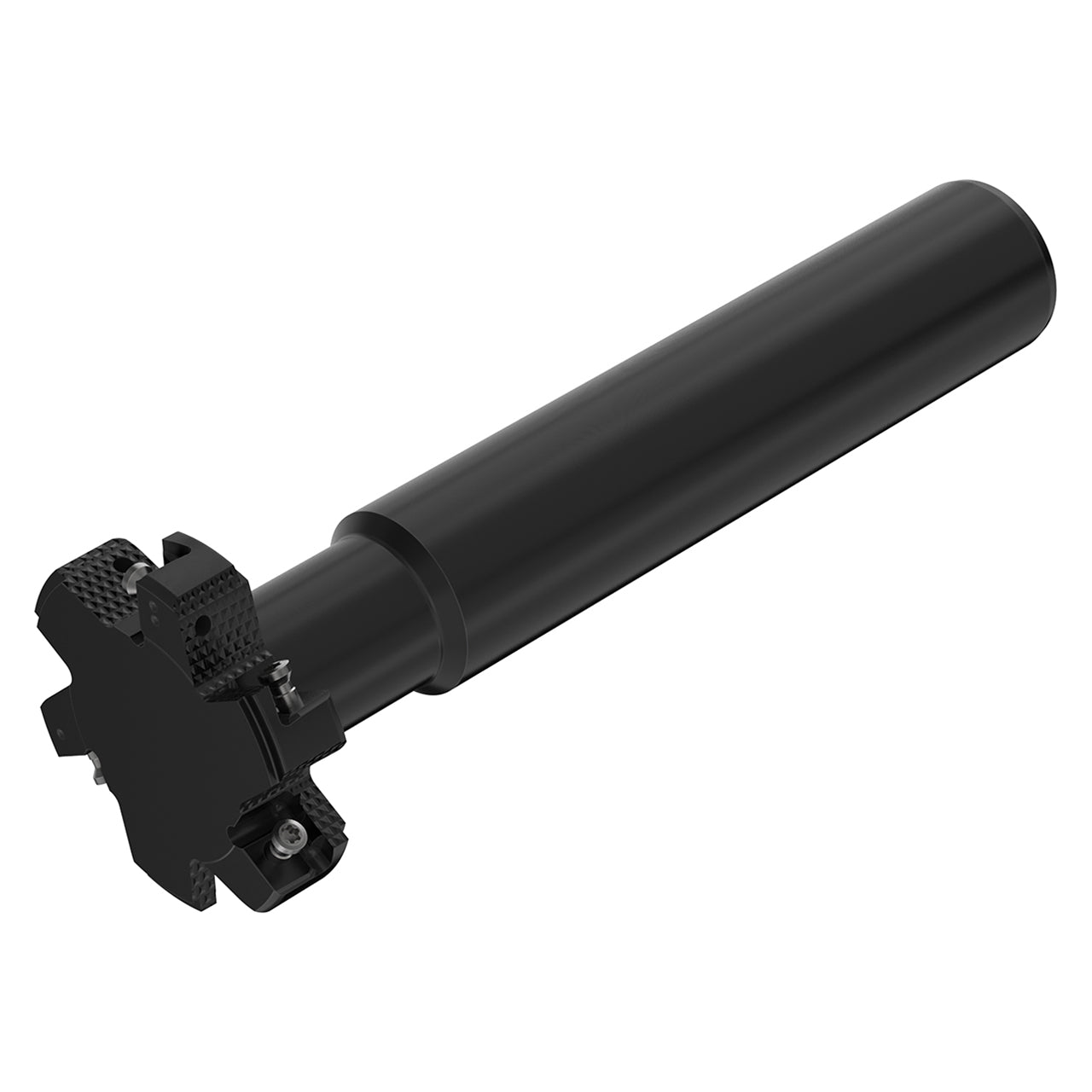

| Product Type | Indexable Slotting Cutter |
