Product Specifications
| Manufacturer Part Number | 10092359 |
| Depth of Cut Maximum in Feed Direction Side (mm) | 10.00mm |
| Body Diameter (mm) | 14.00mm |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | No |
| Cutting Diameter (mm) | 32.00mm |
| Connection Diameter Machine Side (mm) | 16.00mm |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90.00 Degree |
| Protruding Length (mm) | 92.00mm |
| Shank Length (mm) | 108.00mm |
| Overall Length (mm) | 140.00mm |
| Rotational Speed Maximum | 18600 rpm |
| Shank Type | Cylindrical |
| Peripheral Effective Cutting Edge Count | 1 |
| Product Series | R335.18 |

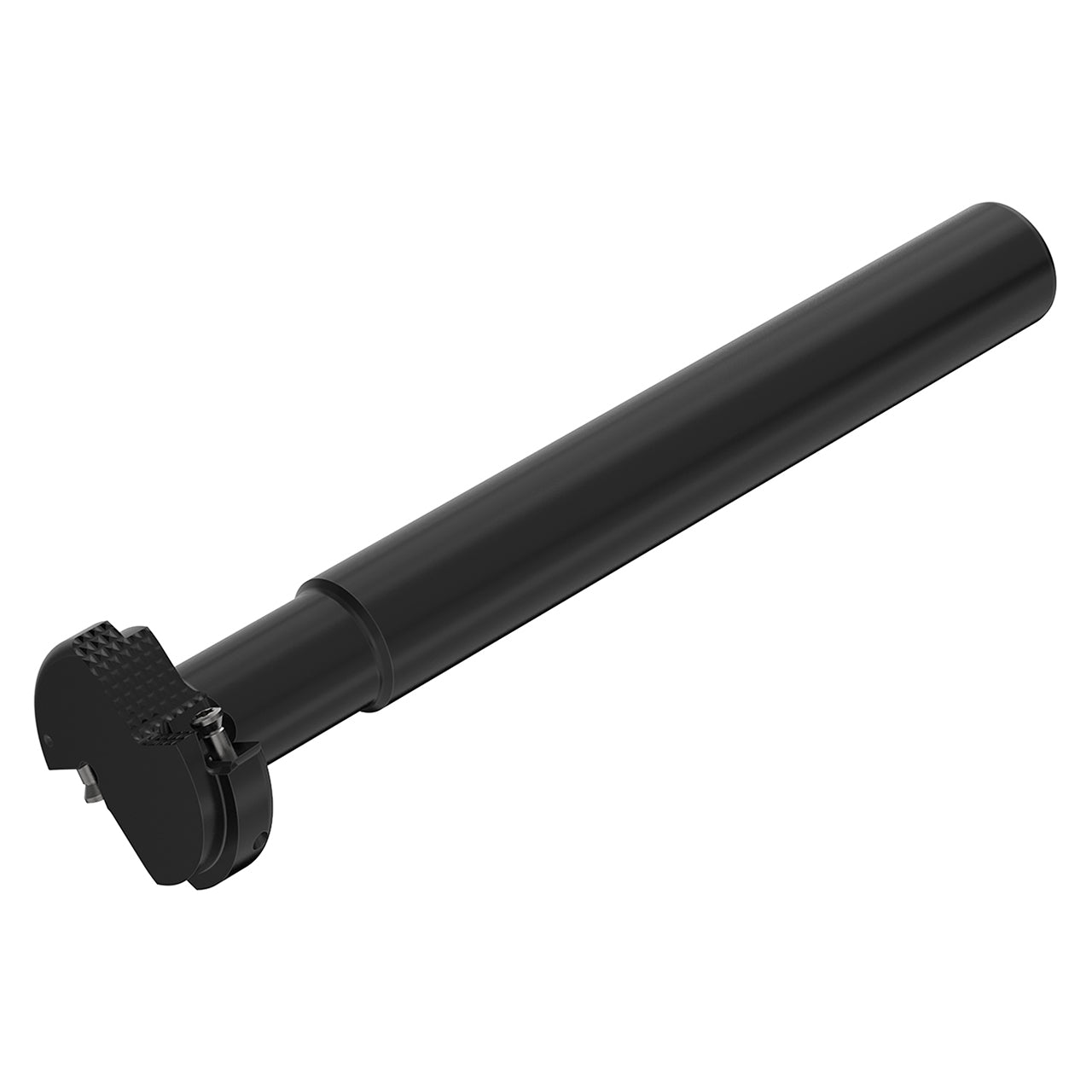

| Product Type | Indexable Slotting Cutter |
