Product Specifications
| Manufacturer Part Number | 10084038 |

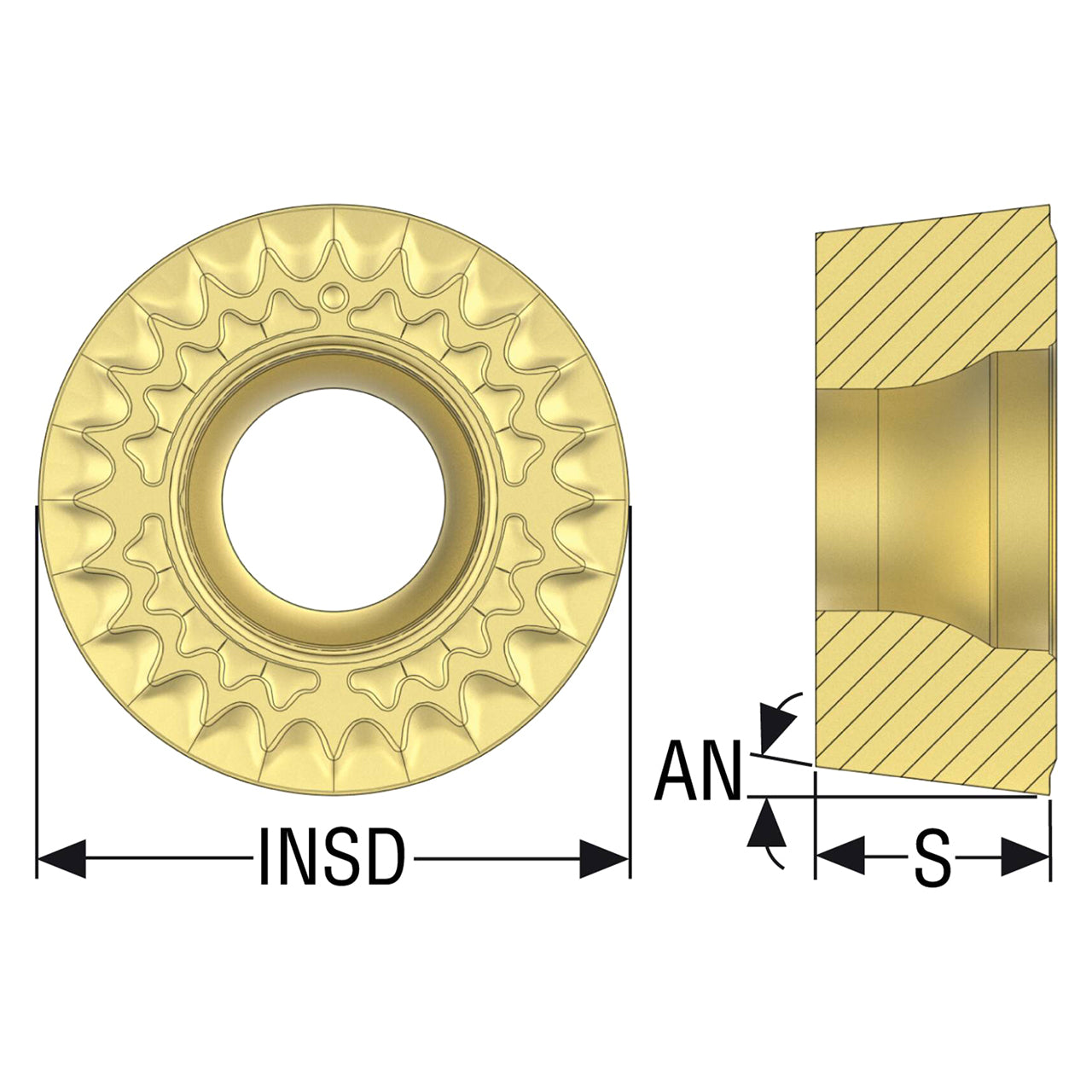

| Fixing Hole Diameter (Decimal Inch) | 0.221" |
| Fixing Hole Diameter (mm) | 5.60mm |
| Insert Diameter (Decimal Inch) | 0.630" |
| Insert Diameter (mm) | 16.00mm |
| Insert Thickness (Decimal Inch) | 0.250" |
| Insert Thickness (mm) | 6.35mm |
| Clearance Angle Major (Degree) | 7 Degree |
| Cutting Edge Count | 4 |
| Insert Size And Shape | RC1606 |
| Material | Carbide |
| Insert Hand | Neutral |
| Insert Shape Code | R |
| Insert Seat Size Code | RC16 |
| Product Type | Turning Insert |
