Product Specifications
| Manufacturer Part Number | 10084023 |

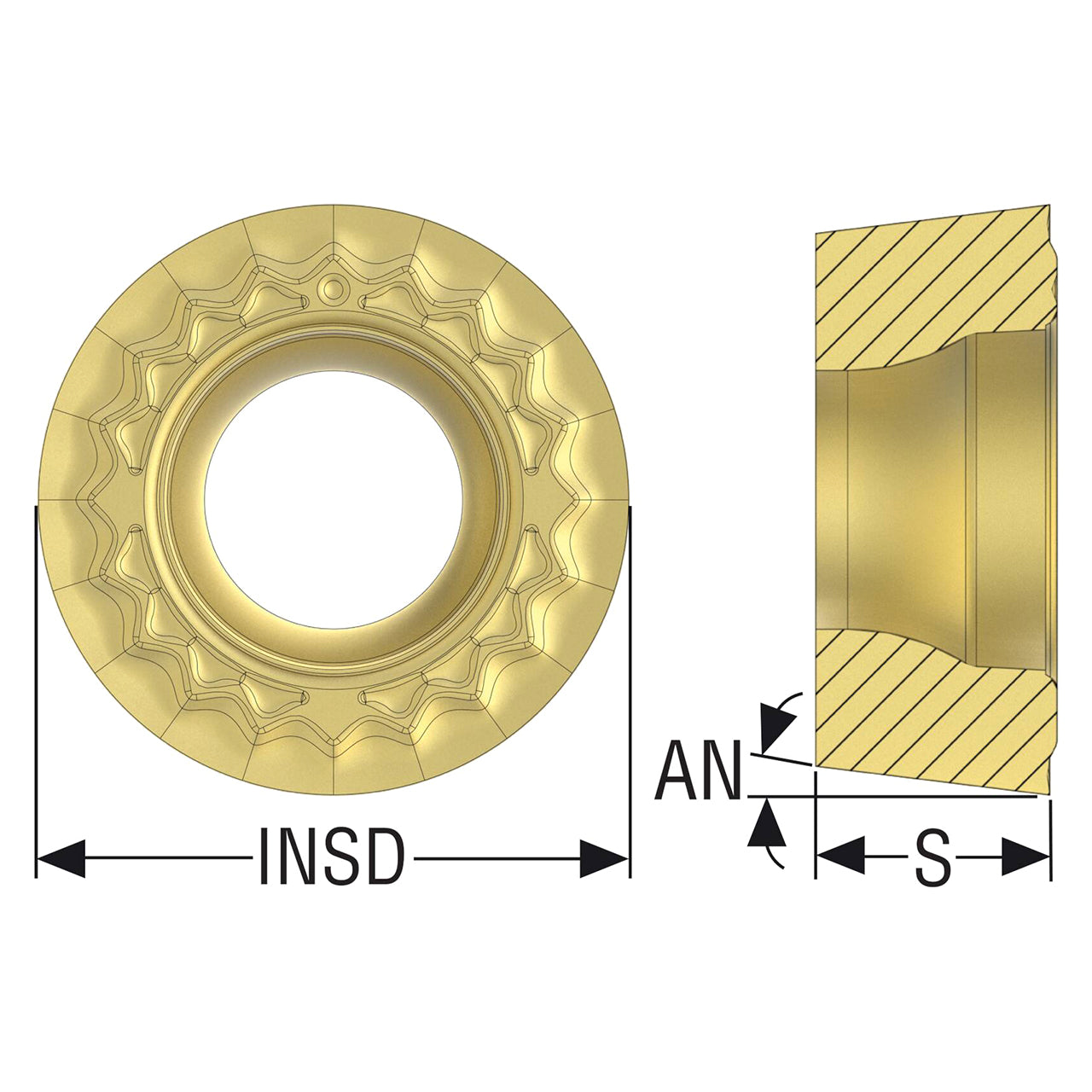

| Fixing Hole Diameter (Decimal Inch) | 0.138" |
| Fixing Hole Diameter (mm) | 3.50mm |
| Insert Diameter (Decimal Inch) | 0.315" |
| Insert Diameter (mm) | 8.00mm |
| Insert Thickness (Decimal Inch) | 0.125" |
| Insert Thickness (mm) | 3.18mm |
| Clearance Angle Major (Degree) | 7 Degree |
| Cutting Edge Count | 4 |
| Insert Size And Shape | RC0803 |
| Material | Carbide |
| Insert Hand | Neutral |
| Insert Shape Code | R |
| Insert Seat Size Code | RC08 |

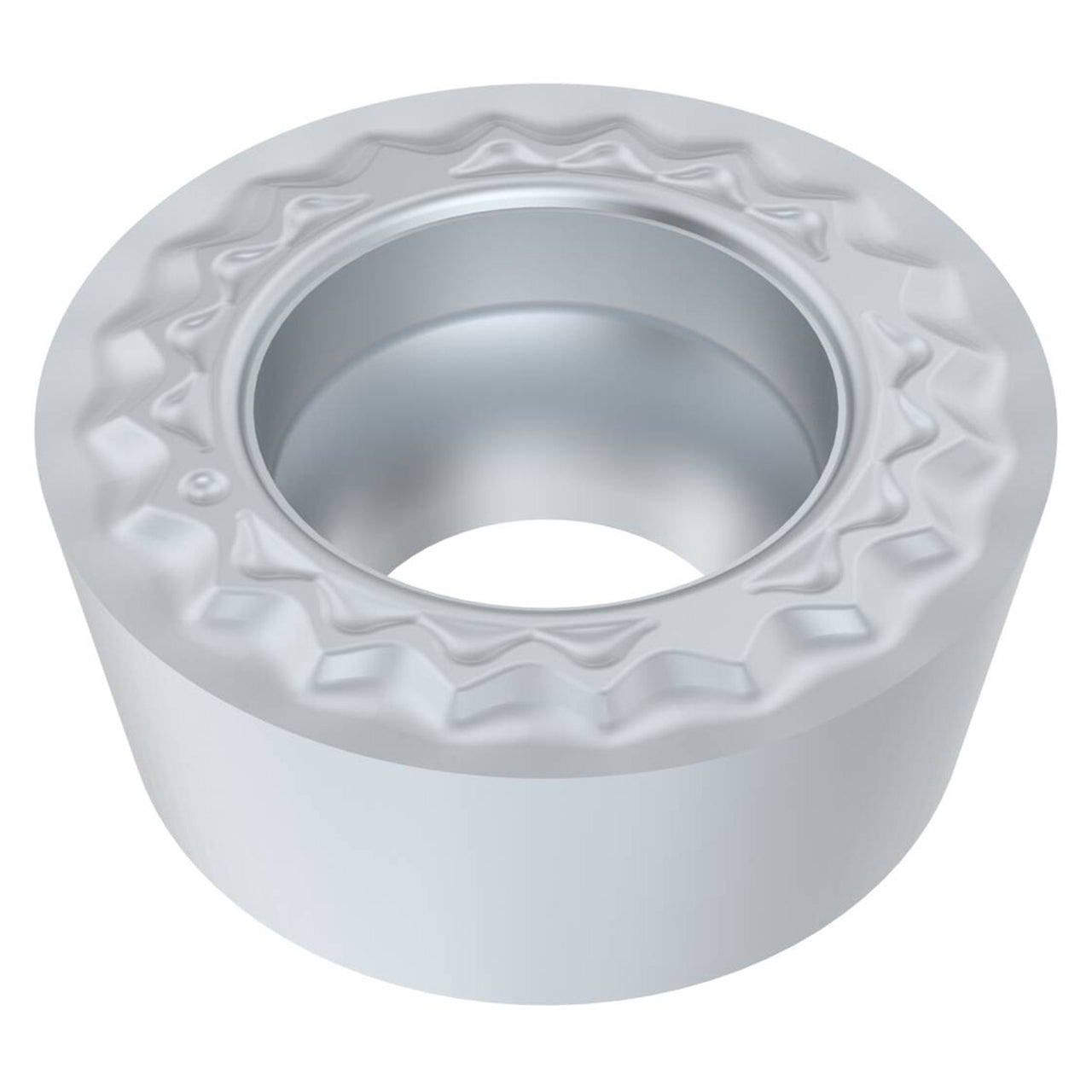

| Product Type | Turning Insert |
