Product Specifications
| Manufacturer Part Number | 10070324 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 4.331" |
| Minimum Cutting Diameter Internal (mm) | 110.00mm |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 5.512" |
| Minimum Cutting Diameter Internal 3 (mm) | 140.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 3.150" |
| Contact Surface Diameter Machine Side (mm) | 80.00mm |
| Functional Length (Decimal Inch) | 3.150" |
| Functional Length (mm) | 80.00mm |
| Head Length (Decimal Inch) | 1.969" |
| Head Length (mm) | 50.00mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.063" |
| Maximum Radial Cutting Depth (mm) | 1.60mm |
| Maximum Cutting Depth (Decimal Inch) | 0.496" |
| Maximum Cutting Depth (mm) | 12.60mm |
| Tool Cutting Edge Angle (Degree) | 93 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 142 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 93 Degree |
| Maximum Ramping Angle (Degree) | 19.4 Degree |
| Cutting Direction | Right Hand |
| Coolant Entry Style Code | 1 |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 10 |
| Data Chip Provision | 1 |
| Insert Clamping System | D |
| Shank Type | Seco-Capto |
| Insert Shape Code | V |

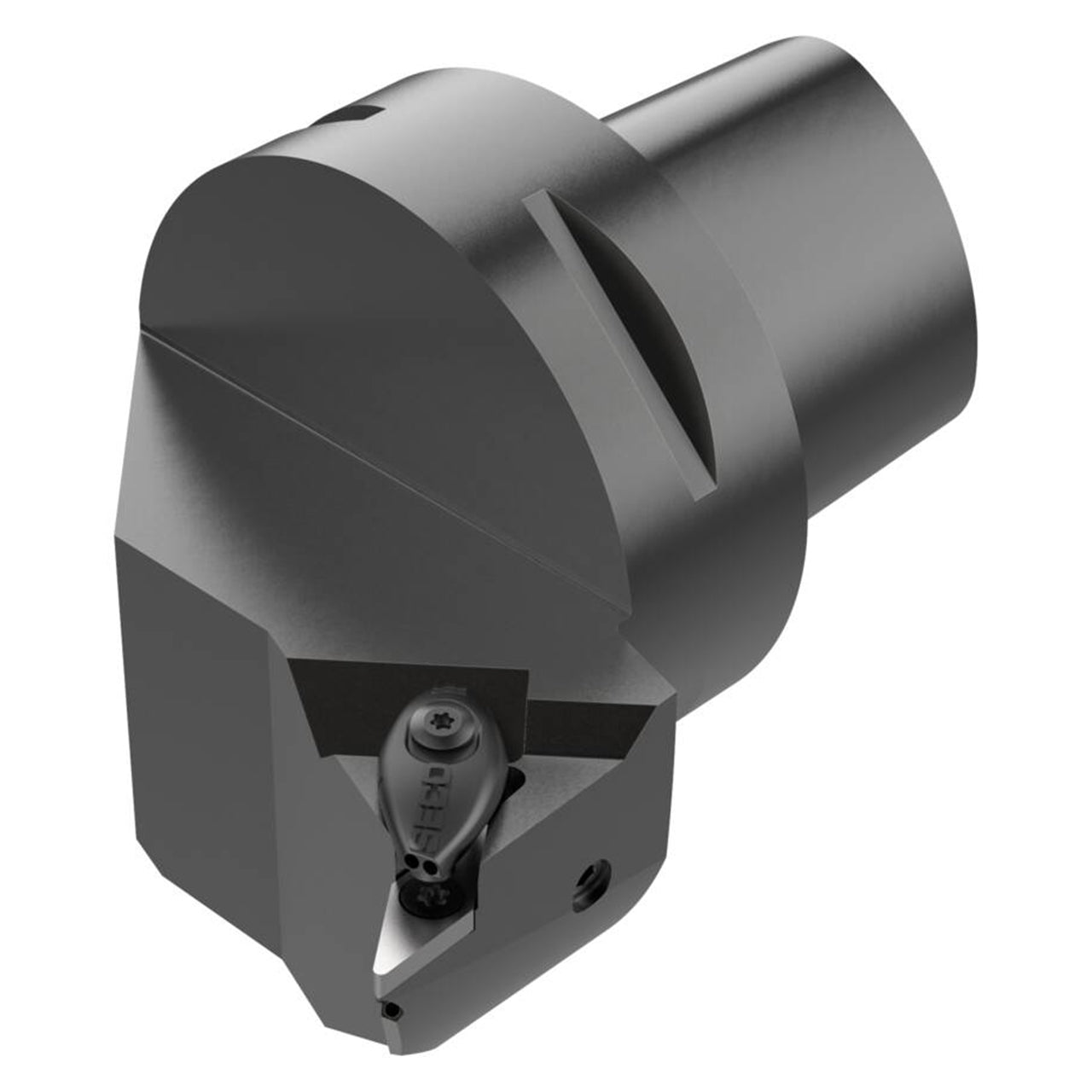

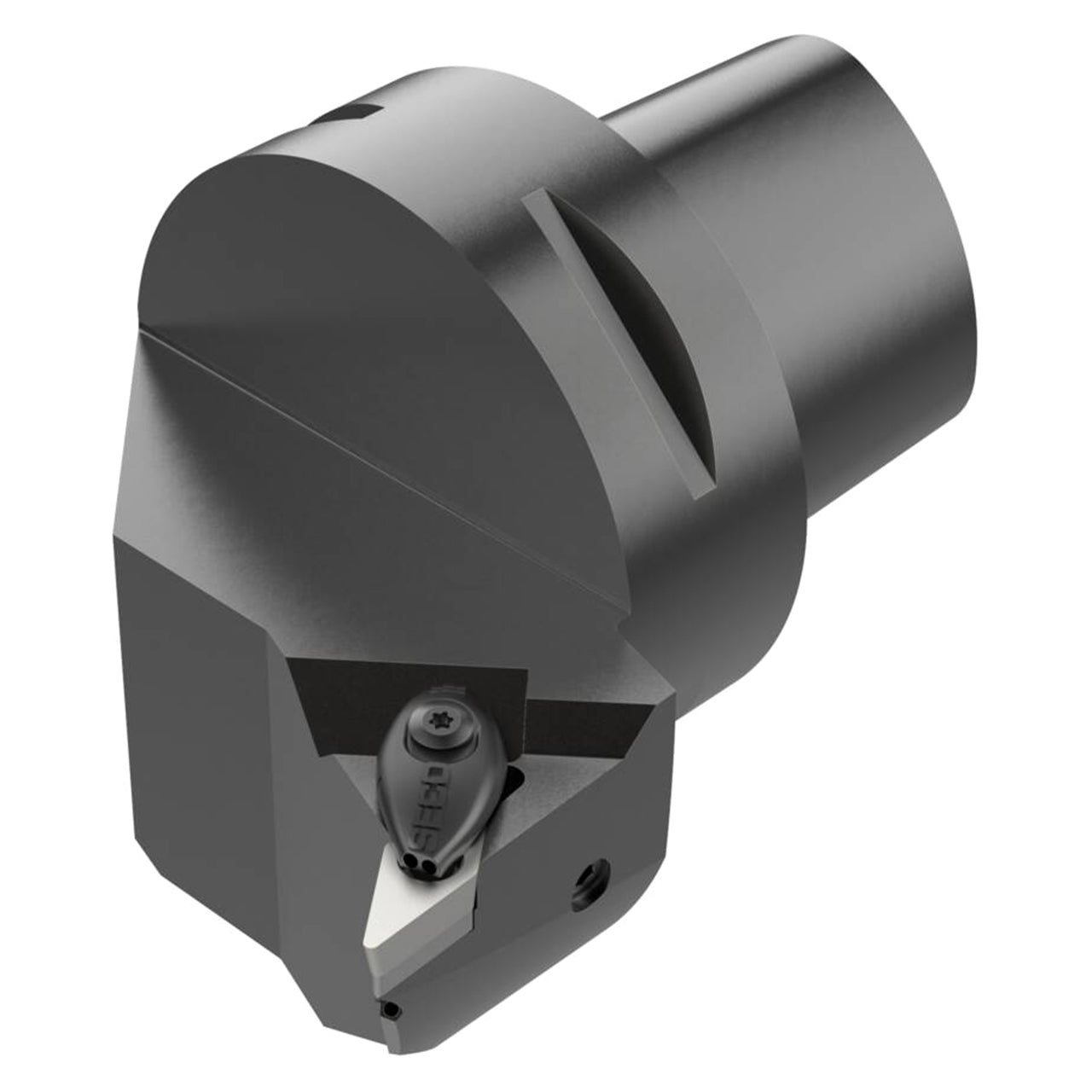

| Product Type | Modular Turning Head |
