Product Specifications
| Manufacturer Part Number | 10070172 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 3.543" |
| Minimum Cutting Diameter Internal (mm) | 90.00mm |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 5.906" |
| Minimum Cutting Diameter Internal 3 (mm) | 150.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.575" |
| Contact Surface Diameter Machine Side (mm) | 40.00mm |
| Functional Length (Decimal Inch) | 1.969" |
| Functional Length (mm) | 50.00mm |
| Head Length (Decimal Inch) | 1.142" |
| Head Length (mm) | 29.00mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.051" |
| Maximum Radial Cutting Depth (mm) | 1.30mm |
| Maximum Cutting Depth (Decimal Inch) | 0.055" |
| Maximum Cutting Depth (mm) | 1.40mm |
| Tool Cutting Edge Angle (Degree) | 93 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 116.53 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 93 Degree |
| Inclination Angle (Degree) | -6 Degree |
| Rake Radial Angle (Degree) | -6.34 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Maximum Ramping Angle (Degree) | 2.38 Degree |
| Cutting Direction | Left Hand |
| Coolant Entry Style Code | 1 |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 10 |
| Data Chip Provision | 1 |
| Insert Clamping System | D |
| Shank Type | Seco-Capto |
| Insert Shape Code | T |

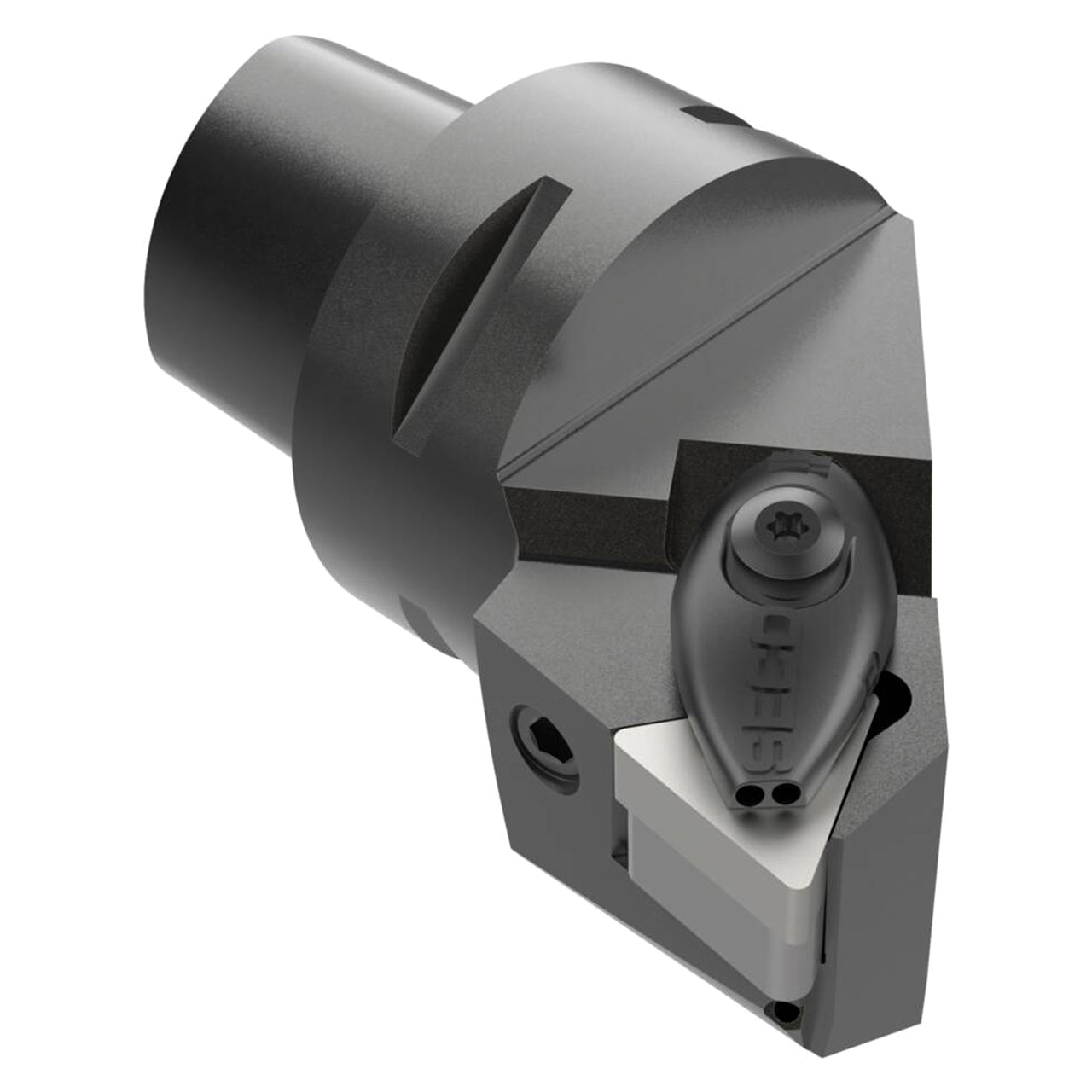

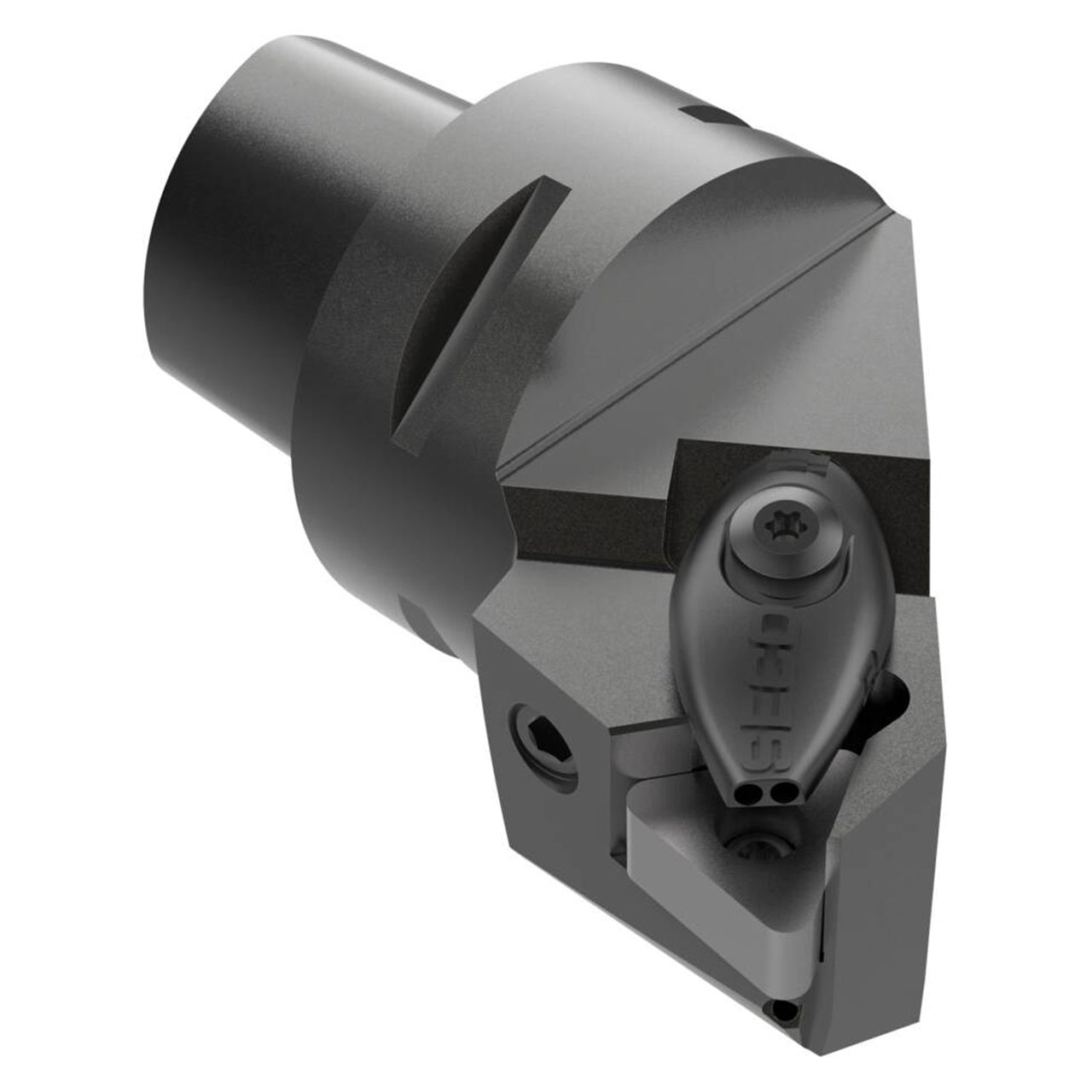

| Product Type | Modular Turning Head |
