Product Specifications
| Manufacturer Part Number | 10068148 |
| Cutting Diameter (mm) | 27.10mm |
| Connection Bore Diameter (mm) | 22.00mm |
| Contact Surface Diameter Machine Side (mm) | 41.00mm |
| Maximum Cutting Diameter (mm) | 50.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 98.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 77.10mm |
| Functional Length (mm) | 40.00mm |
| Maximum Depth of Cut (mm) | 1.80mm |
| Depth of Key Way (mm) | 6.30mm |
| Keyway Width (mm) | 10.40mm |
| Programming Radius (mm) | 4.04mm |
| Uncut Thickness (mm) | 1.4 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Axial Rake Angle (Degree) | 3 Degree |
| Tool Cutting Edge Angle (Degree) | 11 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 11 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 11 Degree |
| Maximum Ramping Angle (Degree) | 1.8 Degree |
| Maximum Rotational Speed (rpm) | 10700 rpm |
| Insert Shape Code | S |
| Shank Type | Arbor |

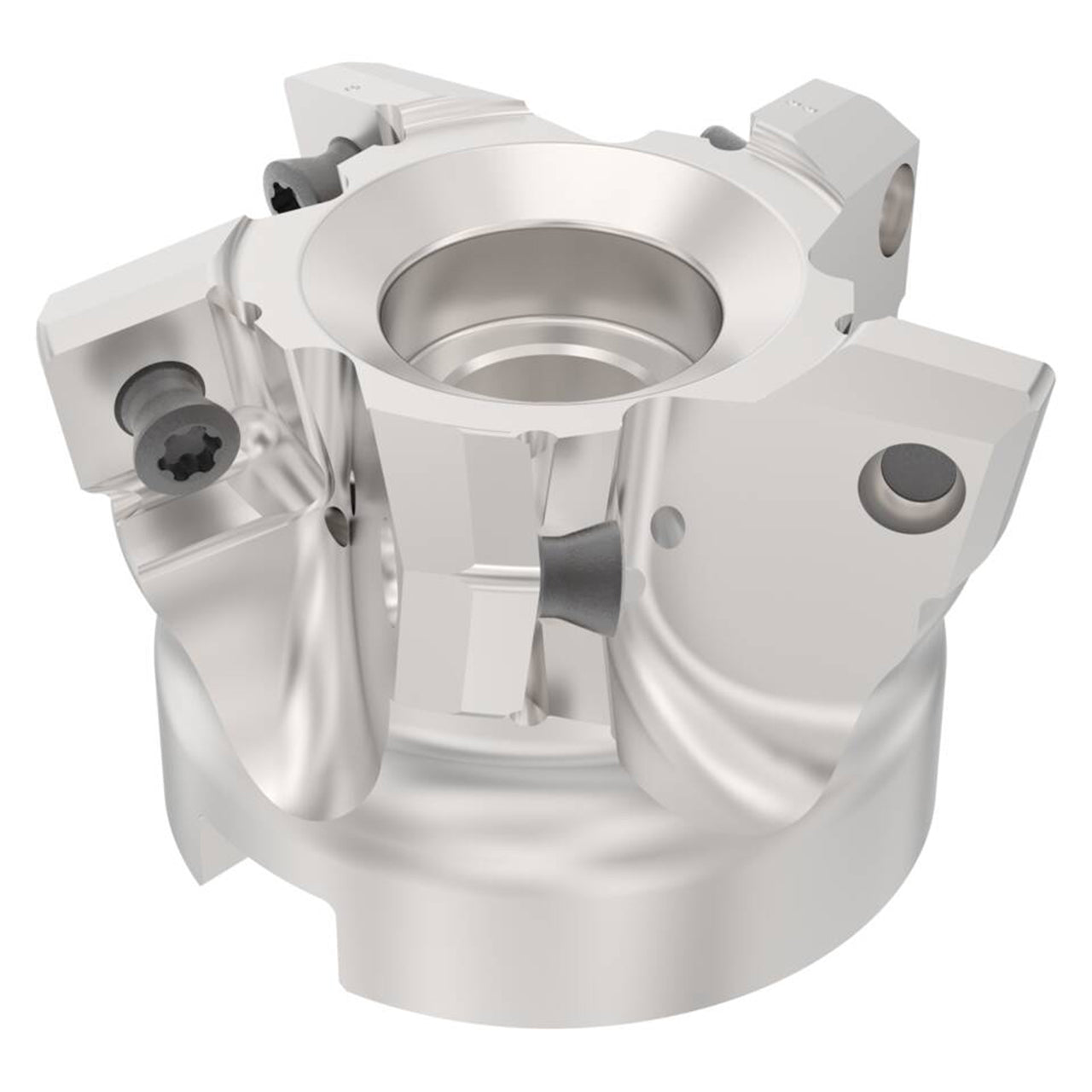

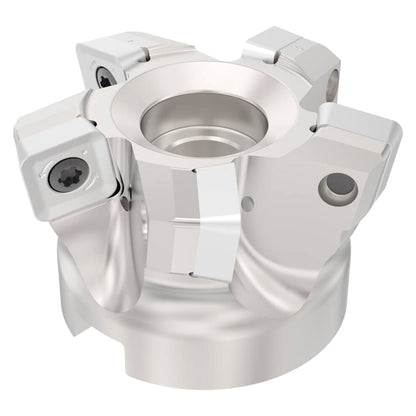

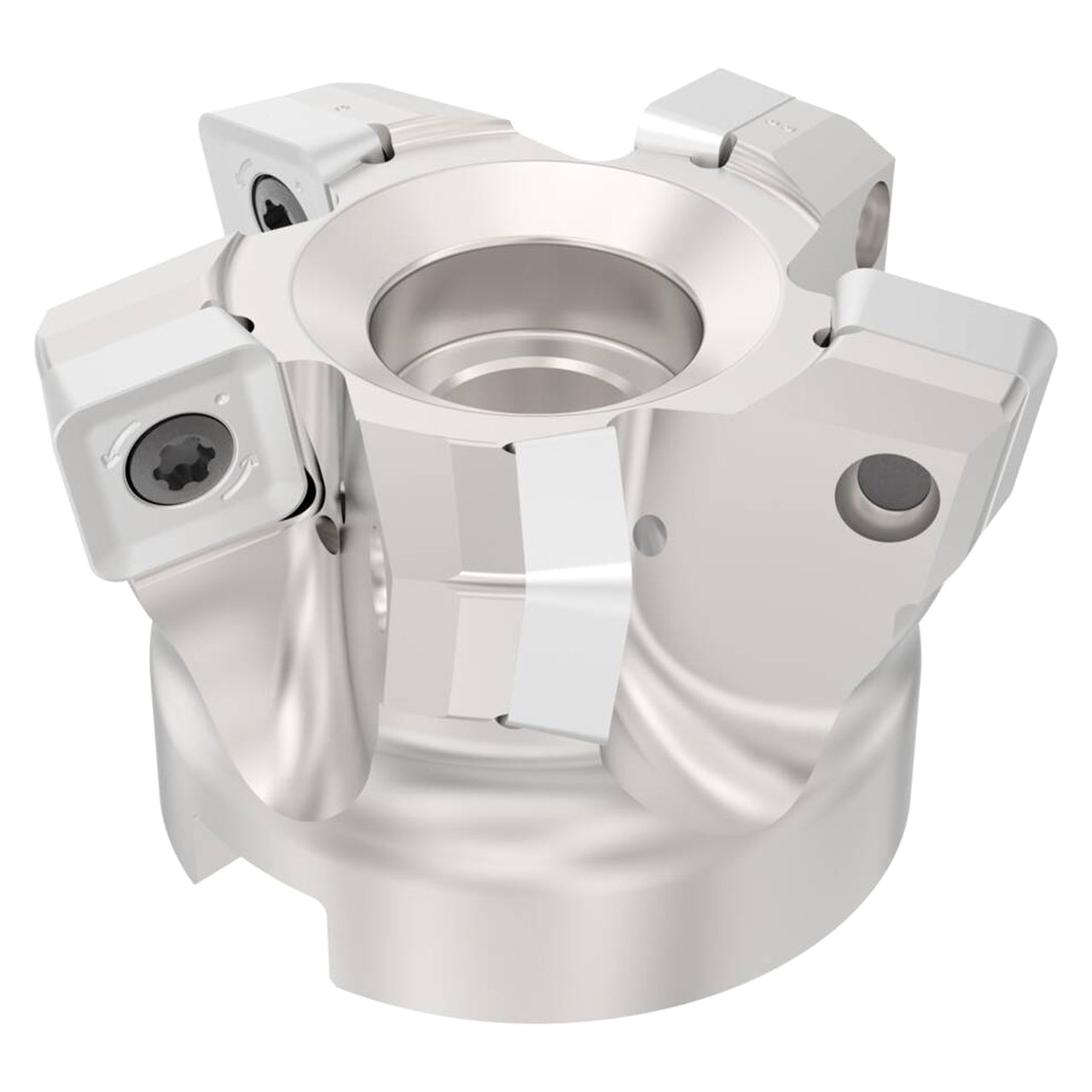

| Product Type | Indexable High-Feed End Mill |
