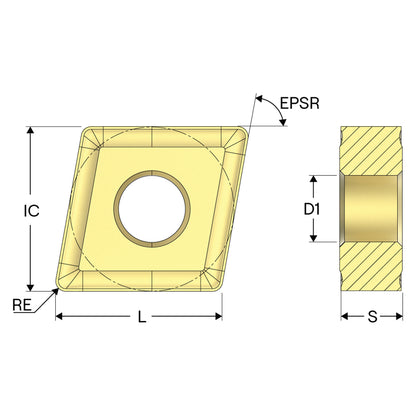

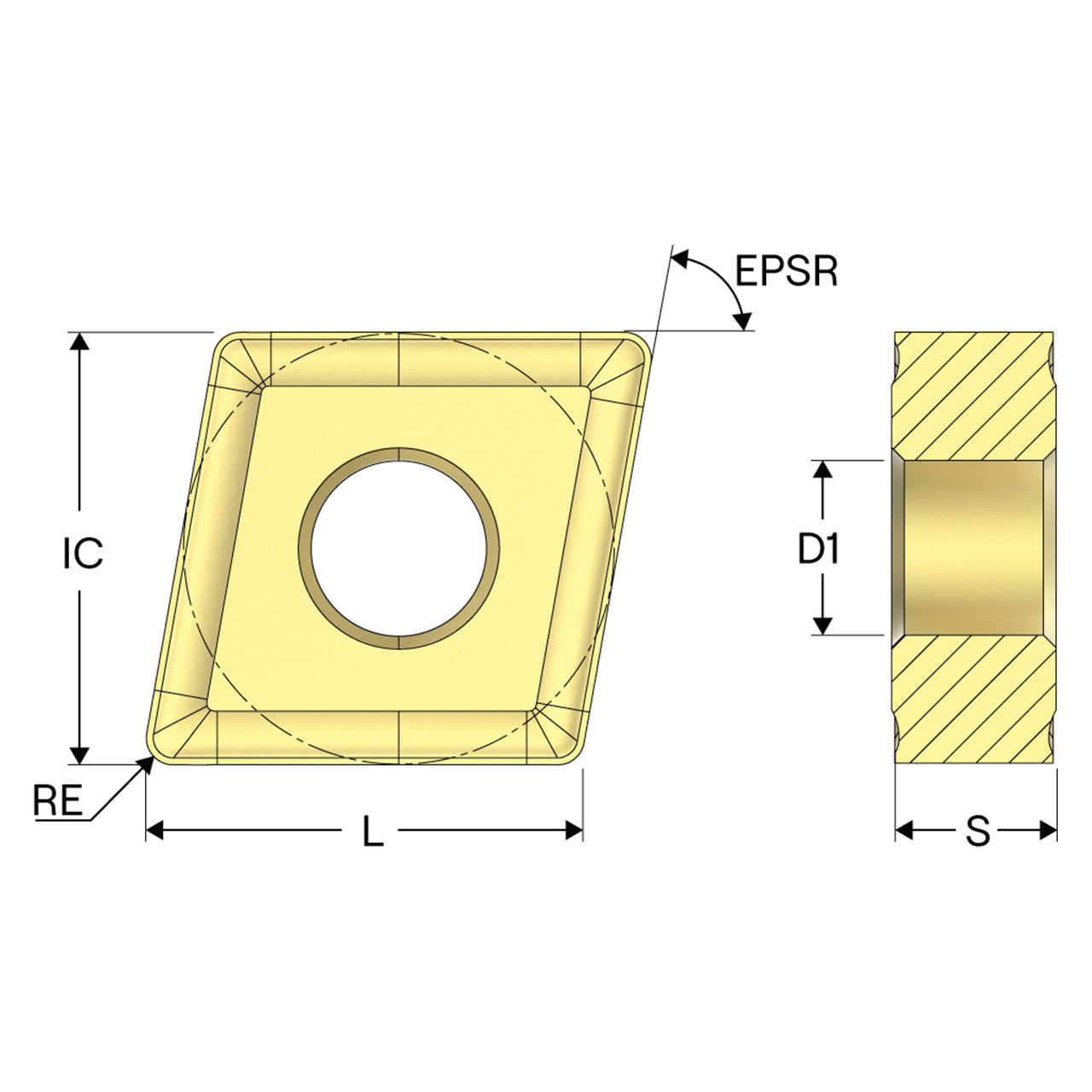

Product Specifications
| Manufacturer Part Number | 10052184 |
| Cutting edge count | 4 |
| Grade Type | Carbide PVD |
| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Insert Hand | Neutral |
| Cutting Edge Effective Length (Decimal Inch) | 0.459" |
| Corner Radius (Decimal Inch) | 0.047" |
| Insert Thickness (Decimal Inch) | 0.187" |
| Insert seat size code | 12 |
| Product Series | CNGP |
| Product Type | Turning Insert |
