Product Specifications
| Manufacturer Part Number | 10044961 |
| Cutting Diameter (mm) | 16.00mm |
| Connection Diameter Machine Side (mm) | 16.00mm |
| Shank Diameter (mm) | 16.00mm |
| Cutting Edge Effective Length (mm) | 17.60mm |
| Minimum Clamping Length (mm) | 48.00mm |
| Length Variant Cataloque | 4 |
| Theoretical Cutting Edge Length (mm) | 17.60mm |
| Overall Length (mm) | 150.00mm |
| Number of Flute | 6 |
| Pheripheral Cutting Edge Count | 6 |
| Maximum Depth of Cut (mm) | 12.94mm |
| Radial Runout (mm) | 0.02mm |
| Cutting Edge Count | 6 |
| Face Cutting Edge Count | 6 |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Flute Helix Angle (Degree) | 20 Degree |
| Rake Radial Angle (Degree) | 10 Degree |
| Cutting Direction | Right Hand |
| Flute Helix Hand | Right Hand |
| Cutting Geometry Type | JH746 |
| Cutting Geometry Type Technical | JH746 |
| Internal Coolant Channel | Yes |
| Cutting Item Material Type | XMG |
| Shank Type | Cylindrical |
| Material | Carbide |
| Coating | SIRON-A |

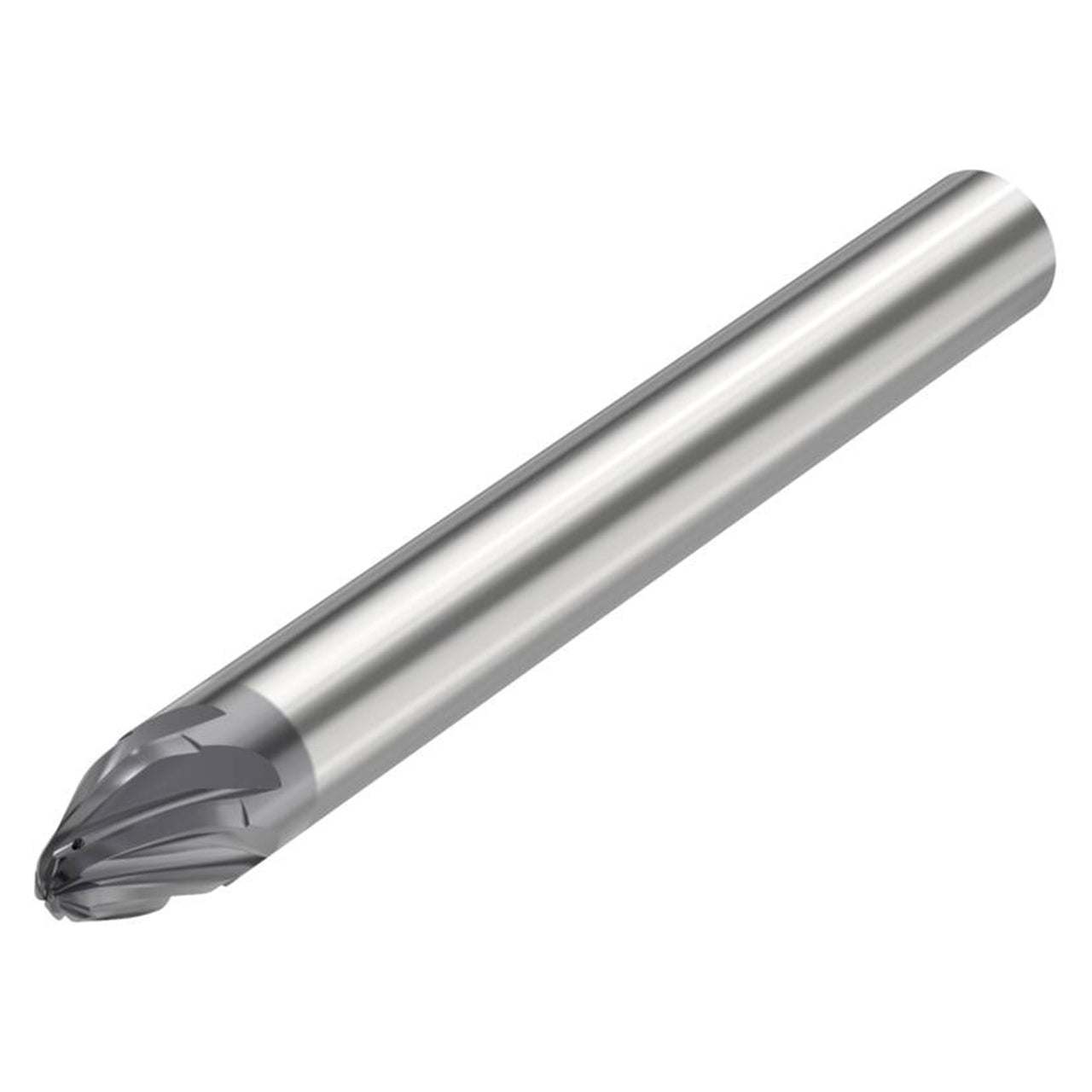

| Product Type | Tapered End Mill |
