Product Specifications
| Manufacturer Part Number | 10031890 |
| Connection Diameter Machine Side (Decimal Inch) | 0.866" |
| Connection Diameter Machine Side (mm) | 22.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.575" |
| Contact Surface Diameter Machine Side (mm) | 40.00mm |
| Shank Diameter (Decimal Inch) | 0.866" |
| Shank Diameter (mm) | 22.00mm |
| Overall Length (Decimal Inch) | 1.969" |
| Overall Length (mm) | 50.00mm |
| Depth of Key Way (Decimal Inch) | 0.248" |
| Depth of Key Way (mm) | 6.30mm |
| Keyway Width (Decimal Inch) | 0.409" |
| Keyway Width (mm) | 10.40mm |

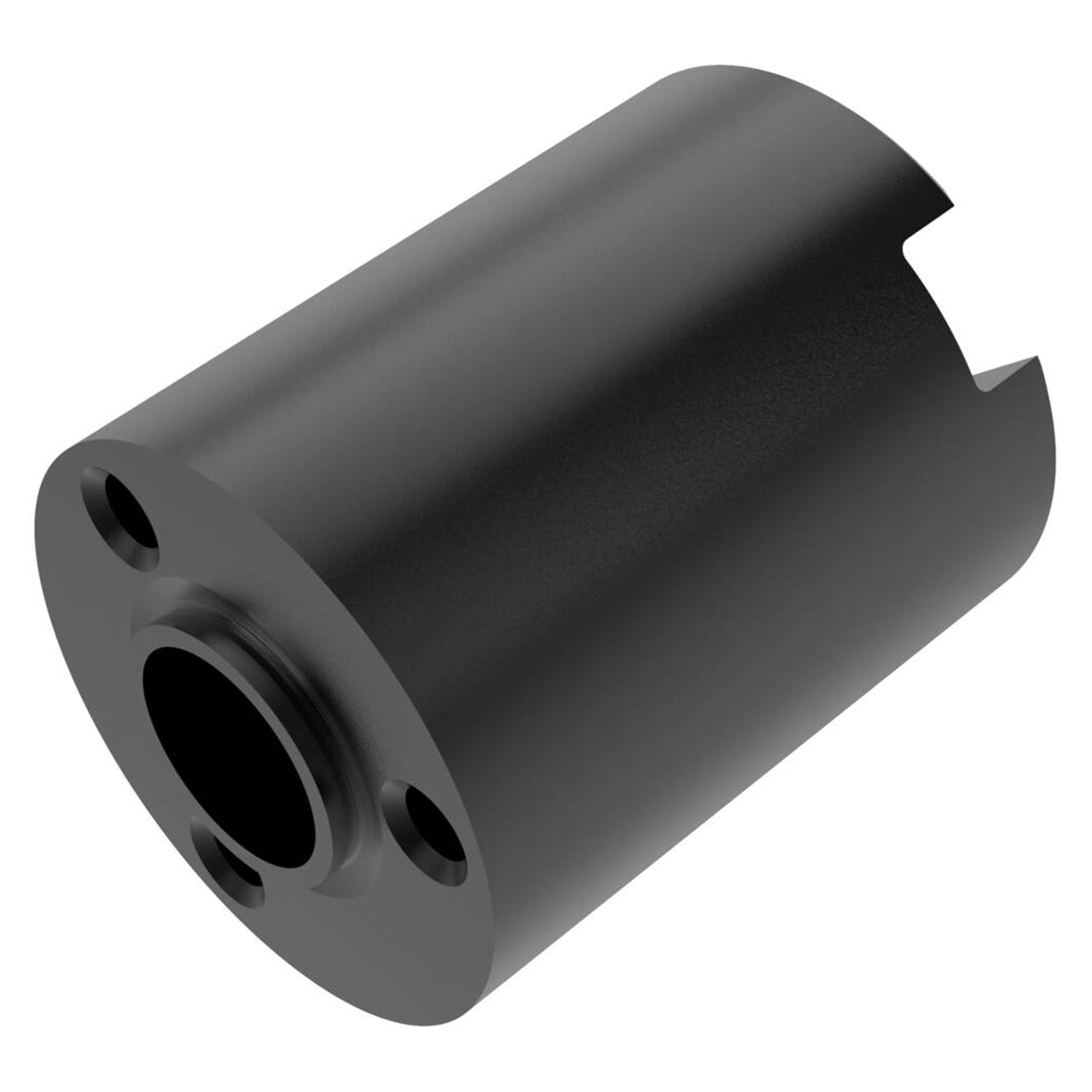

| Product Type | Slotting Cutter Adapter |
